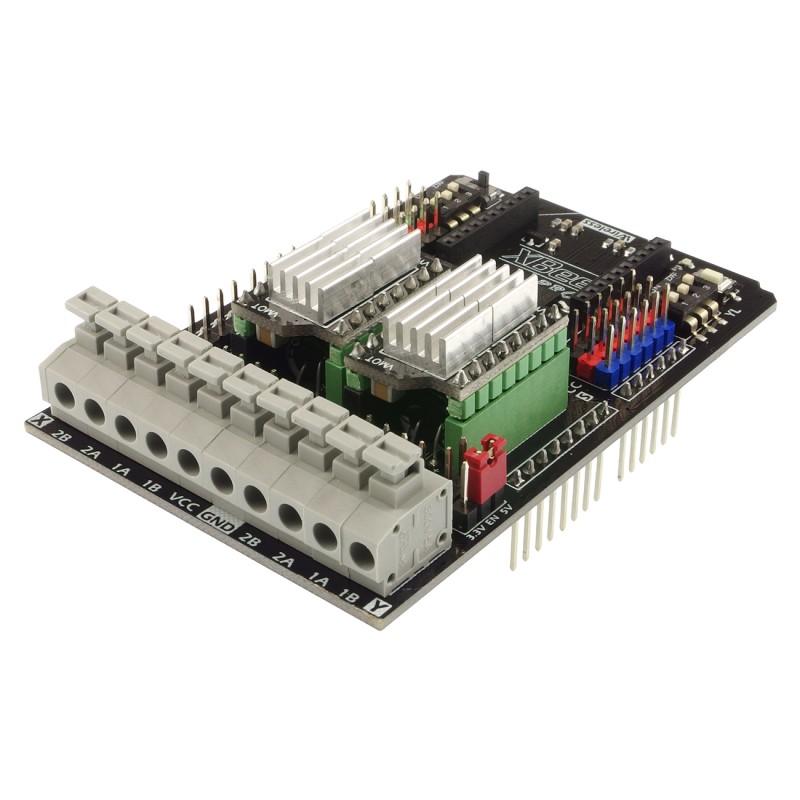

Gravity: Dual Bipolar Stepper Motor Shield - DRV8825 stepper motor driver module for Arduino
ID: 569415
zł180.20
Tax included
zł146.50 tax excl.
DRV8825 Stepper Motor Driver Module for Arduino. It allows you to control two drives, equipped with an XBee connector. DFRobot DRI0023
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
DRV8825 Stepper Motor Driver Module for Arduino. The distribution of pins is compatible with the Arduino Uno Rev3, so it can be used with many popular development boards. It allows you to control two bipolar motors and is equipped with an XBee connector that allows you to connect WiFi, Bluetooth or RF communication modules. The motors can be supplied with voltages from 8.2 to 45 V and are connected to the convenient terminal connectors. The Arduino pins are led out on the board in accordance with the Gravity standard, which allows you to easily connect additional sensors. Full documentation is available on the product page.
Features
- Input voltage: 8.2 to 45 VDC
- Output current: 1.6 A
- Working voltage: 3.3 / 5V
- Micro-steps resolutions: full, 1/2, 1/4, 1/8, 1/16, 1/32
- Support for two bipolar stepper motors
- XBee interface support
- Compatible with Arduino UNO R3, Leonardo, Mega
- Dimensions: 83 x 55 x 25 mm
- Weight: 48 g
569415
Data sheet
- Output current
- 1,6 A
- Number of channels
- 2
- Supply voltage min
- 8,2 V
- Supply voltages max
- 45 V
