FRDM-FXS-MULTI - shield dla zestawów Freescale FRDM z 6 sensorami MEMS Zobacz większe

FRDM-FXS-MULTI - shield dla zestawów Freescale FRDM z 6 sensorami MEMS

Ekspander (shield) dla zestawów FRDM (Freescale Freedom Development Platform) z 6 sensorami MEMS: akcelerometrem MMA8652FC, żyroskopem FXAS21000, kompasem MAG3110, senorem ciśnienia MPL3115A2, zintegrowanym sensorem 6DoF FXOS8700CQ oraz inteligentnym sensorem MMA9553L. Wyprowadzenia zgodne z Arduino.

Więcej szczegółów

ID: 211436

267,33 zł brutto (23% VAT)
217,34 zł netto

Dodaj do listy życzeń

Więcej informacji

FRDM-FXS-MULTI
Freescale Freedom Development Platform for Multiple Xtrinsic Sensors, Freescale, RoHS

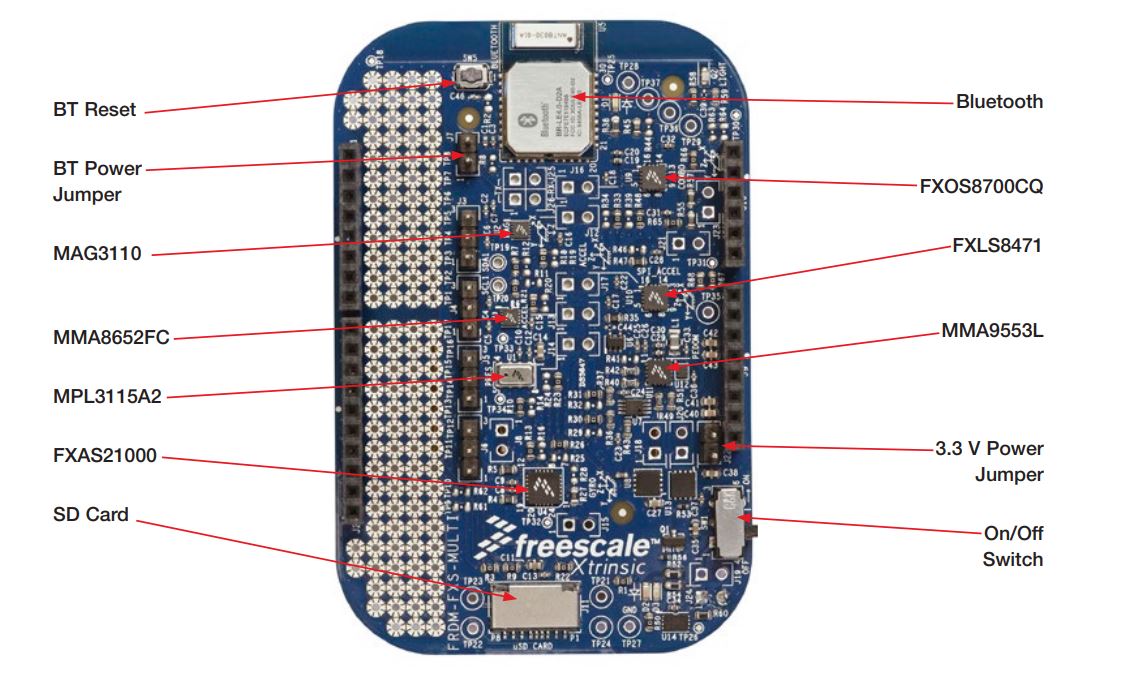

Freescale's Freedom Development Platform for Multiple Xtrinsic Sensors, the FRDM-FXS-MULTI, is a sensor expansion board for the MMA8652FC accelerometer, FXAS21000 gyroscope, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor and MMA9553L sensing platform. The FRDM-FXS-MULTI is the first of its kind offering 12-axis sensing and the compatible Android™ app, the Xtrinsic Sensor Fusion Toolbox.

Features:

  • MMA8652FC accelerometer.
  • FXAS21000 gyroscope.
  • MAG3110 3-axis magnetometer.
  • MPL3115A2 pressure sensor.
  • FXOS8700CQ accelerometer and magnetometer sensors.
  • MMA9553L sensing platform.
  • Arduino™ footprint-compatible with support for sensor expansion boards.
  • Small size at approximately 81 x 52 x 2 mm.
  • Easy access to the MCU I/O pins.


Contents:

  • Bag with jumpers and connectors
  • FRDM-FXS-9AXIS hardware
  • Quick reference card

Download:
