Obniżka! FRDM-K22F - zestaw startowy z mikrokontrolerem Freescale Kinetis K22F Zobacz większe

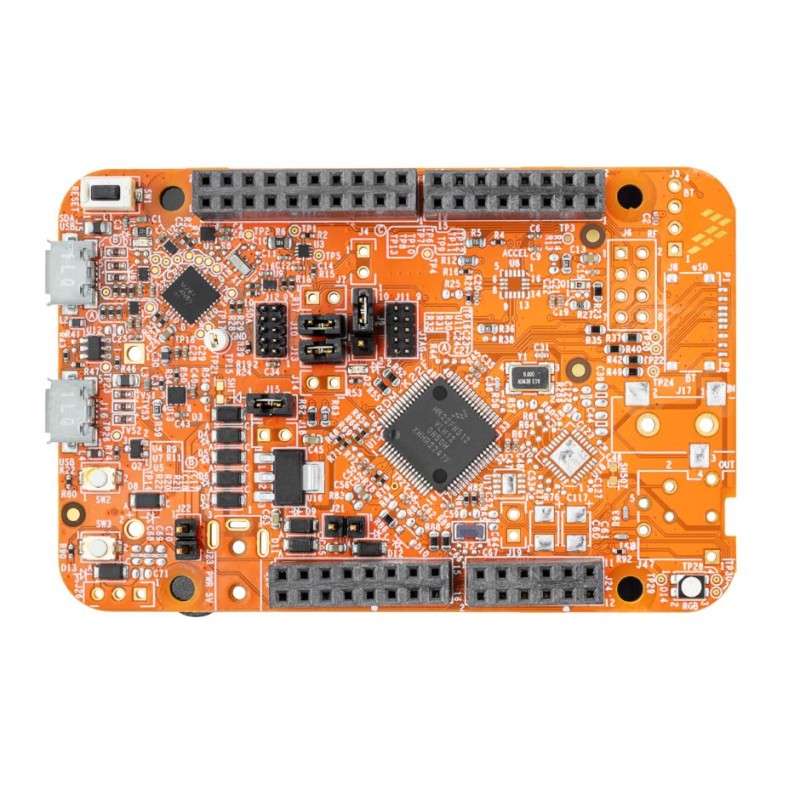

FRDM-K22F - zestaw startowy z mikrokontrolerem Freescale Kinetis K22F

Zestaw startowy firmy Freescale z mikrokontrolerem z rodziny Kinetis K22F (Cortex-M4), zintegrowany z programatorem-debuggerem OpenSDA, nastawnikiem pojemnościowym, LED-RGB, akcelerometrem MEMS 3D i USB device. Wyprowadzenia zgodne z Arduino.

Więcej szczegółów

ID: 233760

159,00 zł brutto (23% VAT)
129,27 zł netto

Dodaj do listy życzeń

Więcej informacji

FRDM-K22F
Freescale Freedom Development Platform for Kinetis K22 MCUs, Freescale, RoHS


The FRDM-K22F is an ultra-low-cost development platform for the latest Kinetis K22 MCUs. The FRDM-K22F hardware is form-factor compatible with the Arduino™ R3 pin layout, providing a broad range of expansion board options. The FRDM-K22F is feature packed with a lot of peripherals to enable rapid prototyping, including a six-axis digital accelerometer and magnetometer to create full eCompass capabilities, a tri-colored LED, two user push-buttons for direct interaction and feedback, and connectivity options with headers for use with Bluetooth and 2.4 GHz radio add-on modules.

Features:

  • MK22FN512VLH12 MCU - 120 MHz, 512 KB flash memory, 128 KB RAM, low-power, and crystal-less USB in 64 LQFP package
  • Dual role USB interface with USB connector
  • RGB LED
  • FXOS8700CQ – accelerometer and magnetometer
  • Two user push buttons
  • Flexible power supply option - OpenSDAv2.1 USB, K22F USB, or external source
  • Easy access to MCU input/output through Arduino R3 compatible I/O connectors
  • Programmable OpenSDAv2.1 debug circuit supporting the CMSIS-DAP interface software that provides:
    • Mass storage device (MSD) flash programming interface
    • CMSIS-DAP debug interface over a USB HID connection providing run-control debugging and compatibility with IDE tools
    • Virtual serial port interface
  • Optional microSD card slot for operation over SPI
  • Optional header for add-on RF module: nRF24L01+ Nordic 2.4 GHz radio
  • Optional header for add-on Bluetooth module: JY-MCU BT board V1.05 BT


Contents:

  • FRDM-K22F board
