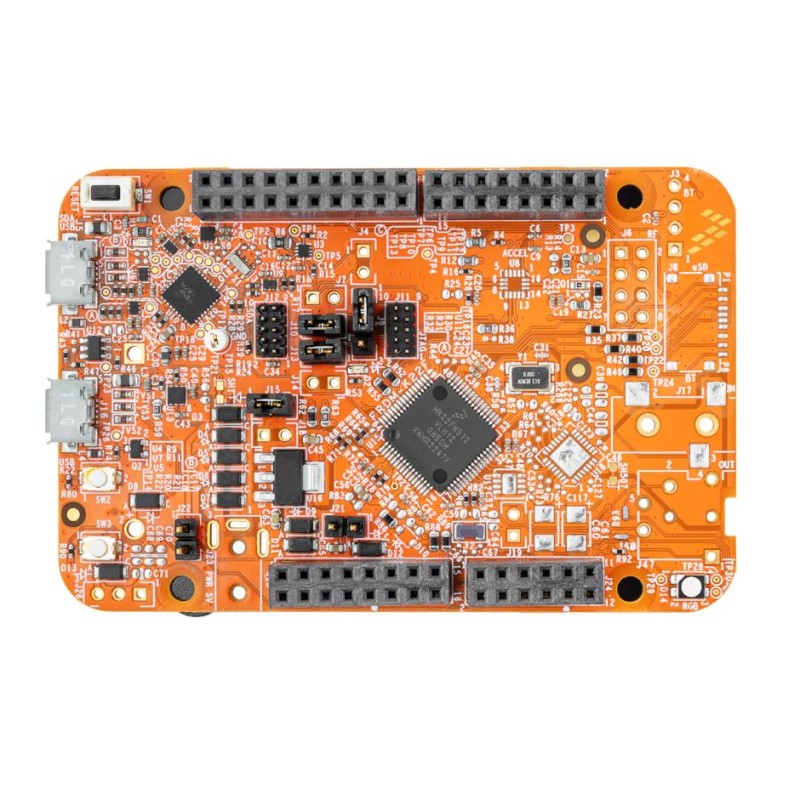

FRDM-K22F - Starter kit with Kinetis K22F microcontroller
ID: 233760
zł262.80
Tax included
zł213.66 tax excl.
Starter kit from NXP Semiconductors (formerly Freescale Semiconductor) based on the Kinetis K22F microcontroller with an Arm Cortex-M4 core, featuring a USB Type-C interface, integrated OpenSDAv2.1 programmer/debugger and an eCompass inertial sensor. FRDM-K22F
Description
FRDM-K22F is a starter kit from the Freedom Development Platform designed for the development and prototyping of applications based on Kinetis K22 microcontrollers from NXP Semiconductors. The board is intended for use in embedded systems projects, communication applications, education and rapid prototyping of embedded solutions.
The platform is based on the MK22FN512VLH12 microcontroller with an Arm Cortex-M4 core, offering a clock frequency of up to 120 MHz, 512 kB of Flash memory and 128 kB of RAM. The microcontroller supports USB operation in device/host mode without the need for an external crystal, simplifying the design of USB applications.
FRDM-K22F features an integrated OpenSDAv2.1 debug interface, enabling programming and debugging without external tools. The standard mechanical form factor of the Freedom platform and the Arduino Rev3 compatible pin layout allow easy expansion with additional modules and expansion boards.
The new revision of the FRDM-K22F kit is equipped with USB Type-C connectors, providing improved mechanical durability and compatibility with current USB connection standards.
Features
- Microcontroller: MK22FN512VLH12
- Core: Arm Cortex-M4 (without FPU)
- Clock frequency: up to 120 MHz
- Flash memory: 512 kB
- RAM memory: 128 kB
- Microcontroller package: 64 LQFP
- USB interface: dual-role (device/host), crystal-less USB
- USB connectors: USB Type-C
- Integrated debug interface: OpenSDAv2.1
- Flash programming via USB mass storage interface (MSD)
- Debug interface: CMSIS-DAP
- Virtual USB serial port
- USB HID debugging (no driver installation required)
- Inertial sensor: FXOS8700CQ
- Accelerometer: 3 axes
- Magnetometer: 3 axes (eCompass)
- RGB LED
- 2 user buttons
- Arduino Rev3 compatible I/O connectors
- Optional microSD card slot (SPI)
- Connectors for radio modules:
- nRF24L01+ (2.4 GHz)
- Bluetooth module (e.g. JY-MCU BT)
- Power supply options:
- via OpenSDAv2.1 USB
- via MCU USB
- external power source
- RoHS compliant
Kit includes
- FRDM-K22F development board
- Quick Reference Card
