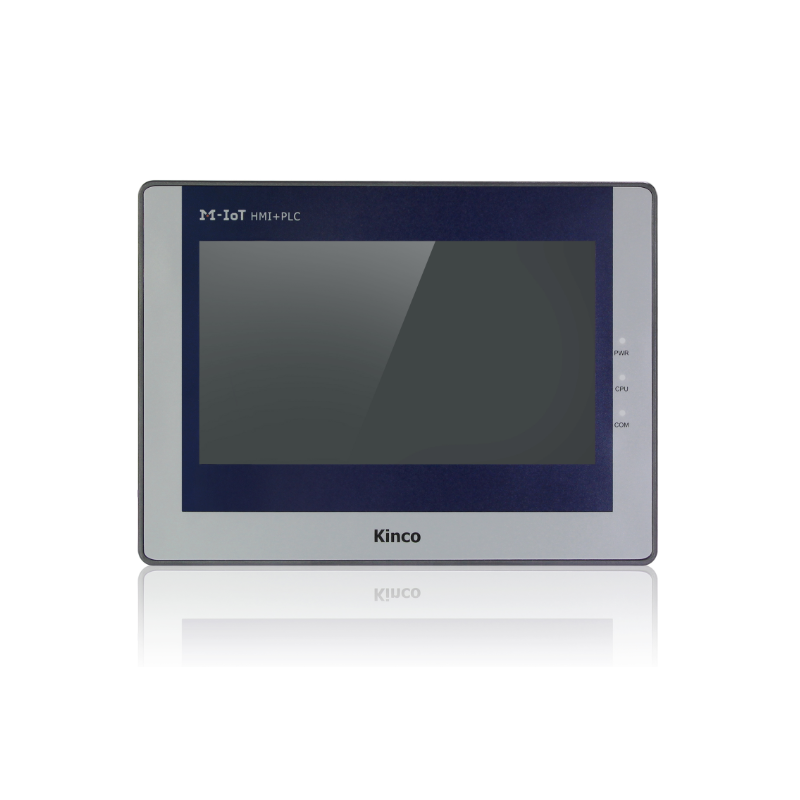

7" TFT 800x480 HMI operator panel with integrated PLC, 16xDI 24VDC, 14xDO 24VDC, 2xAI, 1xAO, 2xRS485, Ethernet, USB, supports up to 8 KS expansion modules. Kinco MK070E-33DT

4 weeks
On request

Description

Kinco MK070E-33DT integrates a 7" TFT HMI operator panel and a PLC controller in a single housing designed for panel mounting. The device operates with 24 V DC power supply and supports M-IoT functions, enabling remote program upload and download, PLC communication over network, VNC remote monitoring, and device management in industrial environments.

The HMI section is based on a 700 MHz RISC processor with 128 MB Flash and 64 MB DDR2 memory, allowing advanced visualization projects created in DTools software. The panel features a 4-wire resistive touch screen and 10/100 M Ethernet interface. The PLC section provides 16 digital inputs 24 V DC, 14 transistor digital outputs 24 V DC, 2 analog inputs and 1 analog output supporting voltage and current signals. The design allows expansion with up to 8 KS series expansion modules, enabling configuration tailored to automation systems, motion control, dosing systems, packaging machines and production lines.


  1. Display and touch LCD screen - Display and touch area
  2. Status indicator light - Indicate current status of the MK
  3. Digital output channel terminal - Used for connecting digital output signal, the wiring is fastenedwith screws, and the terminals are detachable
  4. Digital input channel terminal - Used for connecting digital input signal, the wiring is fastenedwith screws, and the terminals are detachable
  5. Analog output channel terminal - Used for connecting analog output signal, the wiring is fastenedwith screws, and the terminals are detachable
  6. Analog input channel terminal - Used for connecting analog input signal, the wiring is fastenedwith screws, and the terminals are detachable
  7. Power terminal - Access DC24V power supply
  8. DB9 interface - Supports 2*RS485 (Port1, Port2) and KS extension
  9. USB Host interface - HMI expansion interface for peripheral devices such as storagedevices, keyboards, or mouse
  10. CLR button - PLC program clears physical key
  11. Ethernet interface - For Ethernet communication connection, can connect toPCtoview HMI information and download configuration program
  12. USB Slave interface - Connect to PC to view MK information, downloadPLCprogram and HMI configuration program
  13. Sealing ring - To prevent dust or fine particles from entering the installationgap, the sealing ring can be removed

Features

  • Processor: RISC 700 MHz
  • Power supply: 24 V DC
  • Supply voltage range: 20.4 – 28.8 V DC
  • Power consumption: 10 W
  • Display: 7" TFT
  • Resolution: 800 x 480 px
  • Colors: 256 K
  • Brightness: 250 cd/m2
  • Touch panel: 4-wire resistive
  • Digital inputs: 16 x 24 V DC
  • Digital outputs: 14 x 24 V DC
  • Analog inputs: 2 x voltage/current
  • Analog outputs: 1 x voltage/current
  • High speed counters: 4 x up to 50 kHz
  • High speed pulse outputs: 4 x up to 50 kHz (3 x 50 kHz, 1 x 10 kHz)
  • PLC communication ports: 2 x RS485 up to 115.2 kbps
  • Ethernet: 10/100 M
  • Programming port: USB 2.0 Slave
  • USB Host port: 1 x
  • PLC program memory: up to 4K instructions
  • Data memory: 1 KB M + 4 KB V
  • Flash memory: 128 MB
  • RAM: 64 MB DDR2
  • Recipe memory: 256 KB + RTC
  • Expansion module support: up to 8 x KS series
  • Dimensions: 204 x 150 x 33.9 mm
  • Mounting cut-out dimensions: 192 x 138 mm
