Category: Current sensors

The current measurement with a value of 0 - 5A is realized by the ACS712-05 system based on the Hall effect. The system sensitivity is 185mV / A (analog signal).

Non-invasive AC Current Sensor, 15A, YHDC, RoHS

The current measurement with the value 0-20A is carried out by the ACS712-05 system based on the Hall effect. The sensitivity of the system is 100mV / A (analogue signal) .modACS712-20

Module with bi-directional current sensor based on the INA226 system. It allows you to measure current and power, works with a voltage of 0-36 V. It has an I2C interface.

Module with an analog AC current sensor in a set with a probe for non-contact measurement of alternating current with a current of up to 10 A. DFRobot SEN0288

Current-to-voltage converter module designed for devices with a current signal output. It allows linear conversion of current signals from 0 to 25 mA into voltage signals from 0 to 3 V. DFRrobot SEN0262

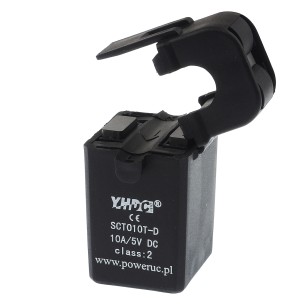

Non-invasive AC Current Sensor, 10A, YHDC, RoHS

ACS714 Current Sensor Carrier -30 to +30A

Non-invasive AC Current Sensor, 100A, YHDC, RoHS

Module with ACHS-7121 current sensor with a measuring range of direct and alternating current from -10 to 10 A. It communicates via an analog interface. Pololu 4030

ACS711EX Current Sensor Carrier -15.5A to +15.5A

Module with ACHS-7122 current sensor with a measuring range of direct and alternating current from -20 to 20 A. It communicates via an analog interface. Pololu 4031

Module with an analog current sensor. It enables the measurement of alternating and direct currents up to 50 A. Cytron BB-ACS756

This board is a simple carrier of Broadcom’s bidirectional ±50A ACHS-7125 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. Pololu 4034

This board is a simple carrier of Broadcom’s bidirectional ±40A ACHS-7124 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. Pololu 4033

Module with an analog current sensor. Enables measurement of alternating and direct current up to 20 A. DFRobot SEN0214

Module with ACS724LLCTR-05AB current sensor with a measuring range of direct and alternating current from -5 to 5 A. It communicates via an analog interface. Pololu 4041

A digital precision current sensor module that measures voltage, current and power of electronic modules and devices up to 26V and 8A with a relative error of ± 0.2%. DFRobot SEN0291

Module with ACS724LLCTR-10AU current sensor with a measuring range of direct and alternating current from 0 to 10 A. It communicates via an analog interface. Pololu 4042

Module with ACHS-7123 current sensor with a measuring range of direct and alternating current from -30 to 30 A. It communicates via an analog interface. Pololu 4032
