ACS37220LEZATR-150B3 Current Sensor - module with current sensor from -150A to 150A, 3.3V
ID: 1194428
zł46.19
Tax included
zł37.55 tax excl.
Precision Hall effect current sensor offering galvanic isolation, wide 150 kHz bandwidth and the ability to measure AC and DC current with very low power loss. With differential measurement and immunity to magnetic interference, it is perfect for applications requiring accurate current monitoring, such as power supplies, converters or motor control systems. Pololu 5296
Description

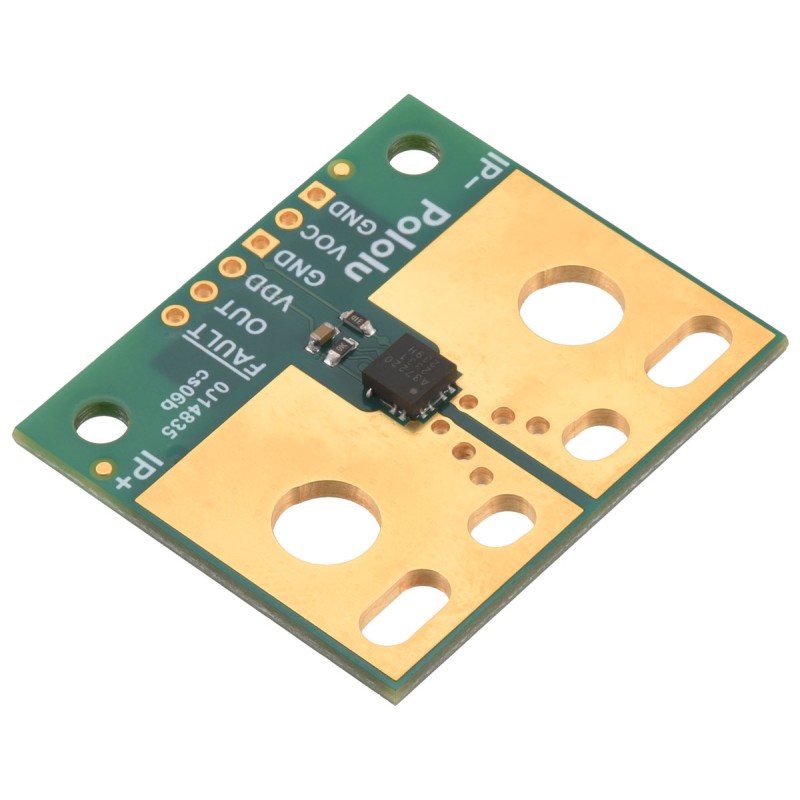

ACS37220 Hall Effect Current Sensor is a current sensing module based on the Hall effect, offering electrical isolation and a wide bandwidth of 150 kHz. Thanks to its ultra-low conductive path resistance, it ensures minimal power loss and high measurement efficiency. The sensor can be placed anywhere in the circuit and is suitable for applications requiring galvanic isolation. The use of differential Hall sensing provides immunity to external magnetic fields, enhancing measurement accuracy. The sensor outputs an analog voltage proportional to the current value, supporting both DC (direct current) and AC (alternating current) measurements. The module operates on a supply voltage between 3.15 V and 3.45 V, and the output is ratiometric—centered at VCC/2, varying by 8.8 mV per amp of current.

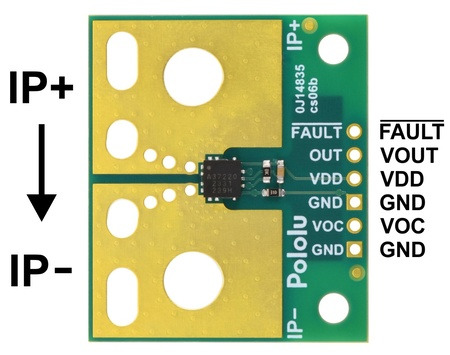

To function correctly, the sensor requires five connections: current input (IP+ and IP-), logic power (VCC and GND), and the sensor output (VOUT). The FAULT pin is pulled up to VDD by default and goes low when the current (IP) exceeds the overcurrent threshold in either direction, indicating a fault condition. The module is built on a multi-layer PCB for durability and reliability. Large mounting holes allow for direct wire connections or terminal usage. Alternatively, 2.54 mm spaced holes are available, though not recommended for high-current applications. With high accuracy, flexible mounting options, and strong EMI resistance, the sensor is well-suited for power systems, converters, battery monitoring, and motor control systems.
Features
- Sensor Type: Allegro ACS37220
- Measurement Range: -150 A to 150 A
- Technology: Hall effect with galvanic isolation
- Bandwidth: 150 kHz
- Supply Voltage: 3.15 V to 3.45 V
- Conduction Path Resistance: 0.1 mΩ
- Output: Analog voltage proportional to current
- Ratiometric Output: Centered at VCC/2
- Response Time: Under 4 µs
- Built-in Digital Temperature Compensation
- Supports DC and AC current measurement
- Connection Options: Screw terminals, 2.54 mm pin headers
- Pin Spacing: 2.54 mm (breadboard compatible)
- Dimensions: 30.48 x 35.56 mm
- Weight: 4.1 g
