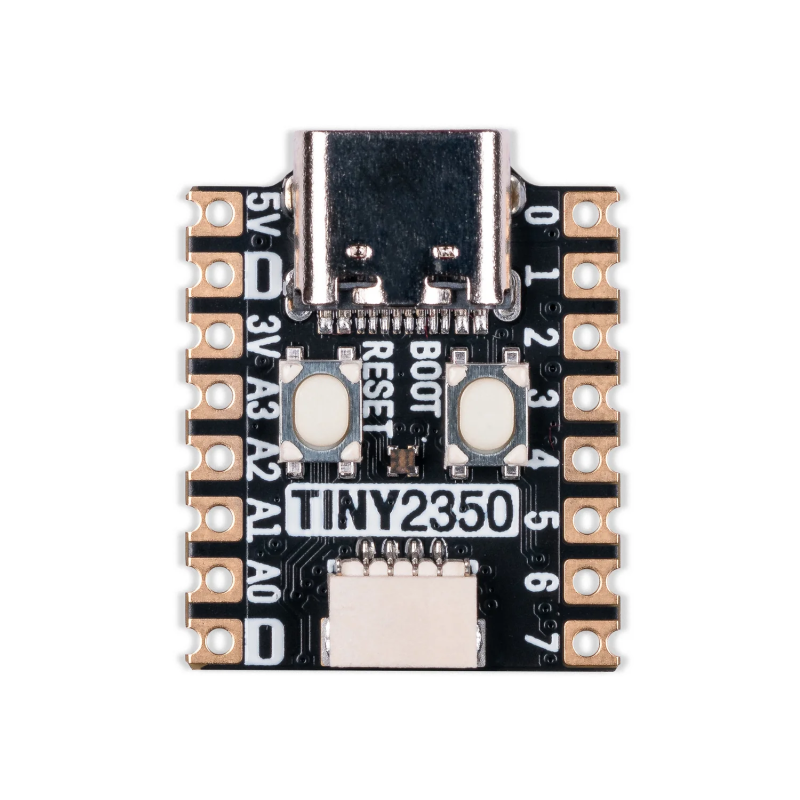

Pimoroni Tiny 2350 development board – RP2350, 4MB Flash, USB-C – PIM766
ID: 1199007
769894025833
zł57.07
Tax included
zł46.40 tax excl.
Pimoroni Tiny 2350 PIM766 is a compact board with an RP2350A microcontroller, 4 MB of flash memory and a USB-C connector, dedicated to projects requiring small dimensions. Thanks to the castellated pads it works well for PCB integration, and compatibility with MicroPython and the Qw/ST connector facilitates quick prototyping.
Description
A miniature development board with the RP2350A chip, an integrated USB-C connector and 4 MB of QSPI flash memory, intended for use in mobile projects, wearable systems and for integration with custom PCBs. Thanks to the castellated edges, it can be soldered directly onto printed circuit boards or connected using self-soldered connectors. It provides 12 GPIO lines, including 4× 12-bit ADC channels, a Qw/ST connector for connecting I2C modules, a programmable RGB LED and RESET and BOOT buttons, with the possibility of using the BOOT button as a user button. Power supply and programming are carried out via the USB-C connector. It supports C/C++ and MicroPython environments and is compatible with Raspberry Pi Pico 2 firmware.
Properties
- RP2350A chip (Dual Arm Cortex M33, up to 150 MHz, 520 KB SRAM)
- 4 MB QSPI flash memory with XiP support
- USB-C connector for power, programming and data transmission
- Programmable RGB LED
- Qw/ST connector (Qwiic/STEMMA QT) for I2C devices
- 12 GPIO pins (including 4× 12-bit ADC inputs)
- RESET and BOOT buttons (BOOT can act as a user button)
- Built-in 3.3 V regulator (maximum current output 300 mA)
- Supply voltage range: 3 V – 5.5 V
- Support for C/C++ and MicroPython
- Dimensions: 22.9 × 18 × 5.8 mm (length × width × height with USB-C port)
1199007
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 12
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 22,9 mm
- Width
- 18 mm
- USB connector type
- USB type C
