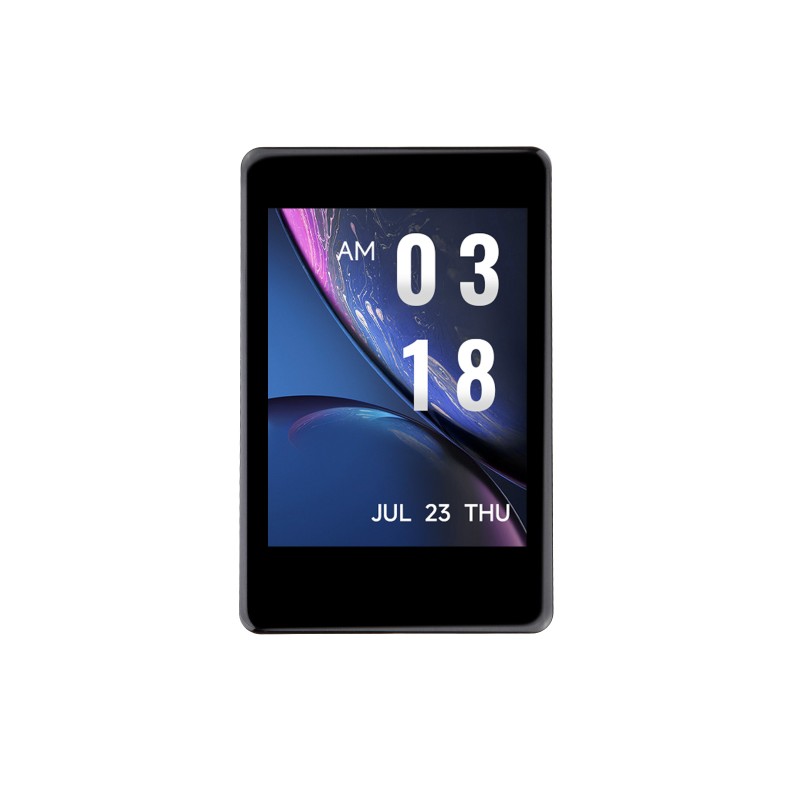

RP2350 development board with 2″ capacitive touch display 240×320 - Waveshare 30711
ID: 1197732
5902186305595
zł78.50
Tax included
zł63.82 tax excl.
RP2350-Touch-LCD-2 is a compact and cost-effective development board featuring an IPS touchscreen display, motion sensor, and camera interface. Designed for developing interactive, educational, and portable applications, it is based on the RP2350 microcontroller with a unique ARM + RISC-V architecture.
Description
RP2350-Touch-LCD-2 is a compact development board based on the RP2350 microcontroller, designed for user interface projects and mobile electronic devices. It features a 2" IPS display with capacitive touch, a 6-axis motion sensor, camera interface, and TF card slot, enabling the development of applications involving HMI and image recognition. USB communication and lithium battery charging enhance its mobility and integration with complete systems.
Features
- Microcontroller: RP2350 (2× ARM Cortex-M33 + 2× Hazard3 RISC-V, up to 150 MHz)
- Memory: 520 KB SRAM, 16 MB Flash
- Display: 2" IPS, 240×320 px, 262K colors, capacitive touch (I2C)
- Camera interface compatible with OV2640 / OV5640 (camera module not included)
- Sensor: QMI8658 – 3-axis accelerometer + 3-axis gyroscope
- TF card slot, lithium battery connector with charging support
- USB 1.1 (host/device), Type-C connector
- 22 GPIO, 2× UART, 2× I2C, 2× SPI, 2× 12-bit ADC, 14× PWM, 12× PIO
- Supported environments: C/C++, MicroPython, Arduino IDE
1197732
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 22
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 37,1 mm
- Width
- 58,8 mm
- USB connector type
- USB type C
