RP2040-One board with RP2040 microcontroller - Waveshare 22809
ID: 1182425
5906623423316
zł22.99
Tax included
zł18.69 tax excl.
Board with the RP2040 microcontroller in the form of a USB dongle. Equipped with edge connectors, RGB LED, boot and reset button. Waveshare RP2040-One
Description
Board in the form of a USB dongle equipped with the RP2040 microcontroller designed by the Raspberry Pi foundation. The system has two ARM Cortex M0+ cores operating at a frequency of up to 133 MHz and 264 kB of RAM. The microcontroller is not equipped with flash memory, but on the board there is an external memory with a capacity of 4 MB connected via the QSPI interface.
| 1. PCB USB-A | 5. Flash 4 MB |
| 2. RT9013-33GB | 6. RESET |
| 3. WS2812 | 7. RP2040 |
| 4. BOOT | 8. RP2040 pins |
On the board, apart from the RP2040 system and Flash memory, the user will find a 3.3 V voltage stabilizer, Boot and Reset buttons, RGB WS2812 diode, USB A connector (cut in the board) for power supply. The platform supports the popular MicroPython CircuitPython and C/C++ programming languages. Programs can be uploaded to the memory using the USB interface. Full documentation is available on the product page.
Features
- RP2040 microcontroller designed by Raspberry Pi
- Two ARM Cortex-M0+ cores clocked up to 133 MHz
- 264 kB onboard SRAM
- Real Time Clock (RTC)
- Voltage stabilizer 3.3V 500mA
- USB type A connector
- Reset and Boot buttons
- WS2812 RGB LED
- 4 MB external flash memory
- Supported programming languages: MicroPython, CircuitPython and C/C++
- Dimensions: 25.5 x 18mm
1182425
Data sheet
- Microcontroller
- RP2040
- Flash memory
- Brak
- Number of I/O
- 20
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 25,5 mm
- Width
- 18 mm
- USB connector type
- USB type A
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
High-quality black USB 2.0 extension cable. Lanberg CA-USBE-10CC-0018-BK
zł4.19
24h
Available quantity: 17
Available
Module with the RP2040 microcontroller with two ARM Cortex-M0 + cores operating at 133 MHz, 256 kB RAM and 30 GPIO. The board also has 2 MB of external QSPI flash memory. Module can be programmed in C/C++ or microPython. Raspberry Pi Pico
zł19.30
24h
Available quantity: 2418
Available
Cable with plug and socket USB 2.0 type. A, cable length 0.5 m. Equipped with a switch
zł22.90
Delivery date unknown
No product available!
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0 + cores operating at a frequency of 133 MHz, 264 kB RAM. There is as much as 16 MB of QSPI flash memory on the board. The system can be programmed in C / C ++ or microPython. KApico RP2040
zł16.90
Delivery date unknown
No product available!
The board with the RP2040 microcontroller equipped with two ARM Cortex-M0 + cores operating at a frequency of 133 MHz, 264 kB RAM. There is as much as 16 MB of QSPI flash memory on the board. The system can be programmed in C / C ++ or microPython. Soldered connectors. KApico RP2040
zł19.90
24h
Available quantity: 63
Available
Other products in the same category (16)
Raspberry Pi Pico W soldered board module dedicated to matrix displays with HUB75 interface. Pimoroni PIM662
zł106.76
4 weeks
No product available!
A board with an RP2040 microcontroller and a radio module operating in the 868 MHz frequency band. It has a built-in LiPo charging circuit and a STEMMA QT connector. Adafruit 5712
zł121.44
24h
Available quantity: 3
Available
A board with an RP2040 microcontroller and a LoRa RF95 module operating in the 868 MHz frequency band. It has a built-in LiPo charging circuit and STEMMA QT connector. Ideal for IoT projects. Adafruit 5714
zł177.72
24h
Available quantity: 1
Available
Board with RP2040 microcontroller and HDMI video connector. Has a built-in LiPo charging circuit and STEMMA QT connector. Allows the use of the Feather module to display data on a monitor. Adafruit 5710
zł85.77
24h
Available quantity: 4
Available

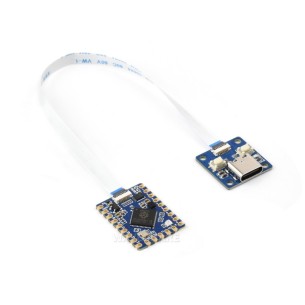

The RP2040 microcontroller board features two ARM Cortex-M0+ cores running at 133 MHz, 264 kB of RAM. The board also features 2 MB of QSPI flash memory and an FPC connector. It comes with a USB adapter. Waveshare RP2040-Tiny-Kit
zł25.03
4 weeks
No product available!
The RP2040 microcontroller board features two ARM Cortex-M0+ cores running at 133 MHz, 264 kB of RAM. The board also features 2 MB of QSPI flash memory and an FPC connector. The chip can be programmed in C/C++ or MicroPython. Waveshare RP2040-Tiny
zł19.68
24h
Available quantity: 3
Available

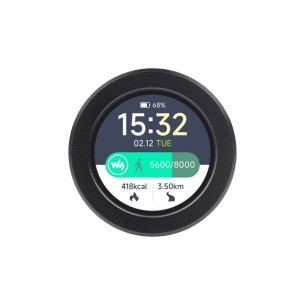

A 1.28" circular IPS LCD display module with touch panel. It has a resolution of 240x240 px and is controlled by an RP2040 microcontroller. It is equipped with an accelerometer and a gyroscope. Waveshare RP2040-Touch-LCD-1.28
