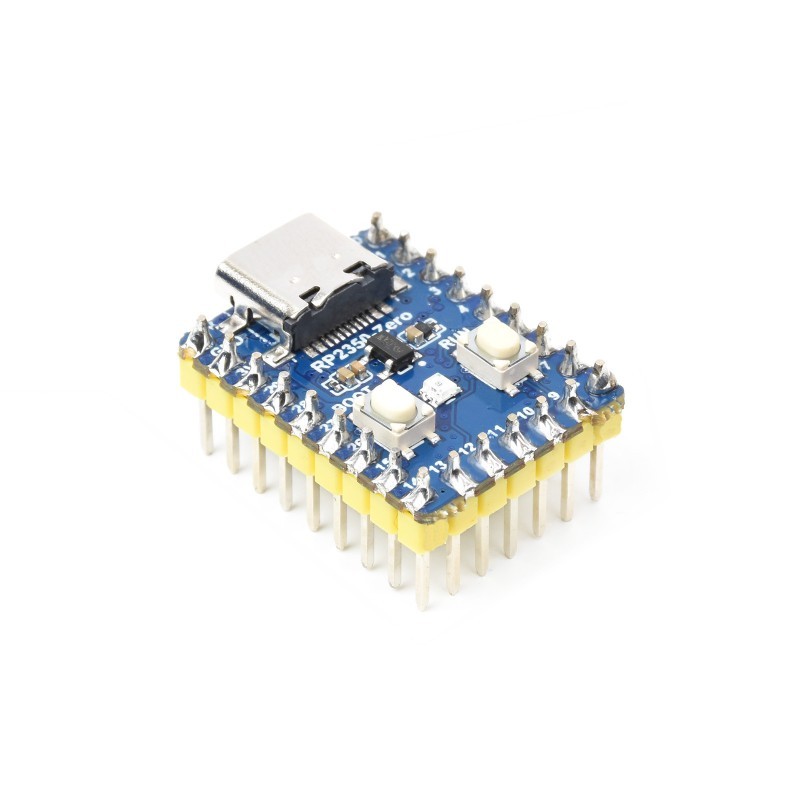

RP2350-Zero Mini development board 4 MB with soldered connectors - Waveshare 29361
ID: 1197492
5902186304932
zł25.15
Tax included
zł20.45 tax excl.
RP2350-Zero-M combines compact dimensions with high performance and a rich set of peripherals. With pre-soldered headers and compatibility with popular development environments such as C/C++ and MicroPython, it is an ideal choice for creators of educational projects, embedded system prototypes, and IoT solutions.
Description
The RP2350-Zero-M is a miniature development board based on the RP2350A microcontroller designed by Raspberry Pi. This version with factory-soldered pins allows for easy connection to a breadboard or development systems. Featuring a dual-core ARM Cortex-M33 and dual-core RISC-V Hazard 3 architecture, it delivers high computing power with low energy consumption, making it a versatile tool for embedded and educational applications.
Features
- Microcontroller: RP2350A (dual-core ARM Cortex-M33 + dual-core RISC-V Hazard 3)
- Clock speed: up to 150 MHz
- Memory: 520 KB SRAM, 4 MB Flash (P25Q32SH-UXH-IR)
- USB Type-C port (USB 1.1, host and device)
- 29 GPIO (including 20 on the edge connector)
- Interfaces: 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 24 PWM channels
- 12 programmable I/O (PIO) blocks
- Temperature sensor, WS2812 RGB LED
- Sleep and low-power modes
- Drag-and-drop programming via USB
- Version with factory-soldered pins
1197492
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 29
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 23,5 mm
- Width
- 18 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
