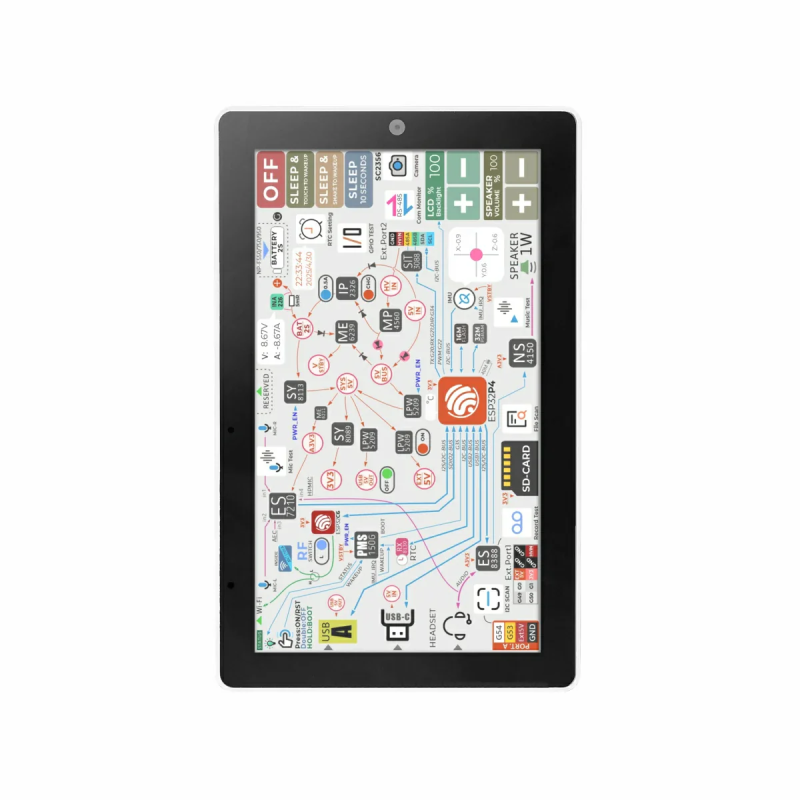

M5Stack Tab5 - 5" Touch IoT Terminal, ESP32-P4, WiFi6 (without battery)
ID: 1201322
5902186332454
zł294.99
Tax included
zł239.83 tax excl.
IoT development terminal equipped with an ESP32-P4 microcontroller, a 5″ 1280×720 IPS touchscreen, an ESP32-C6 Wi-Fi 6 module and a 2 MP camera. The device provides an RS-485 interface, USB ports and expansion connectors enabling integration with IoT systems, industrial automation and edge computing applications. M5Stack C145
Description
M5Stack Tab5 in the C145 version is a portable IoT terminal designed for building industrial automation applications, monitoring systems and edge computing projects. The device uses the ESP32-P4 microcontroller based on the RISC-V architecture with 16 MB Flash and 32 MB PSRAM, providing high data-processing performance. Wireless communication is handled by the ESP32-C6-MINI-1U module supporting Wi-Fi 6 in the 2.4 GHz band as well as Thread and Zigbee protocols. The antenna system allows switching between the built-in 3D antenna and an external antenna connected through an MMCX connector.
The terminal features a 5″ IPS touchscreen with a resolution of 1280 × 720 pixels using the MIPI-DSI interface and an SC2356 2 MP camera connected through MIPI-CSI, enabling applications related to image processing and edge AI systems. USB Type-A (Host) and USB Type-C (USB 2.0 OTG) interfaces allow connection of peripheral devices, while the industrial RS-485 interface based on the SIT3088 transceiver with a switchable 120 Ω termination resistor enables integration with automation systems and industrial communication networks.
The device offers extensive expansion capabilities through HY2.0-4P, M5-Bus and GPIO_EXT connectors. A microSD card slot enables local data storage, while STAMP pads allow integration of additional communication modules such as LoRaWAN, NB-IoT or Cat-M. The audio system based on the ES8388 codec and the ES7210 AEC front-end supports two microphones, a 1 W speaker and a 3.5 mm audio output, enabling audio recording, playback and voice recognition applications.
The terminal also integrates a BMI270 motion sensor (accelerometer and gyroscope) enabling motion detection and system wake-up, as well as an RX8130CE real-time clock providing precise timekeeping and timed interrupts. The device does not include a built-in battery and requires an external power supply in the range of 6 – 24 V.
Features
- Microcontroller: ESP32-P4NRW32 RISC-V, dual-core 360 MHz + LP core 40 MHz
- Wireless module: ESP32-C6-MINI-1U
- Wireless connectivity: Wi-Fi 6 2.4 GHz, Thread, Zigbee
- Flash memory: 16 MB
- PSRAM memory: 32 MB
- Display: IPS TFT 5″ 1280 × 720, MIPI-DSI interface
- Camera: SC2356 2 MP (1600 × 1200), MIPI-CSI
- USB: 1 × USB Type-A Host, 1 × USB Type-C OTG (USB 2.0)
- RS-485 interface: SIT3088 transceiver, switchable 120 Ω termination resistor
- Expansion interfaces: HY2.0-4P, M5-Bus, GPIO_EXT
- Storage slot: microSD
- Expansion pads: STAMP (Cat-M, NB-IoT, LoRaWAN)
- Audio codec: ES8388
- Microphone front-end: ES7210 AEC
- Microphones: 2
- Speaker: 1 W
- Audio output: 3.5 mm jack
- Motion sensor: BMI270 (accelerometer + gyroscope)
- RTC: RX8130CE
- Power supply range: 6 – 24 V
- Operating temperature: 0 – 40°C
- Dimensions: 128 × 80 × 12 mm
- Weight: 124.5 g
Kit includes
- Tab5 IoT terminal x1
- 1.25-6P terminal cable x1
1201322
Data sheet
- Microcontroller
- ESP32-P4
- Flash memory
- 16 MB
- Number of I/O
- Other
- Ethernet
- none
- WiFi/BT module
- Yes
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 128 mm
- Width
- 80 mm
- USB connector type
- USB-C, USB-A
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
