An evaluation kit for rapid prototyping of IoT devices with long range and high data rates. It supports sub-GHz and 2.4 GHz bands and various modulation schemes, including LoRa and FLRC, reaching speeds of up to 2.6 Mbps. The kit is compatible with Arduino Uno, STM32 Nucleo, and Nordic DK platforms and features an OLED display and Grove connectors for connecting sensors. Seeed Studio 100039980

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

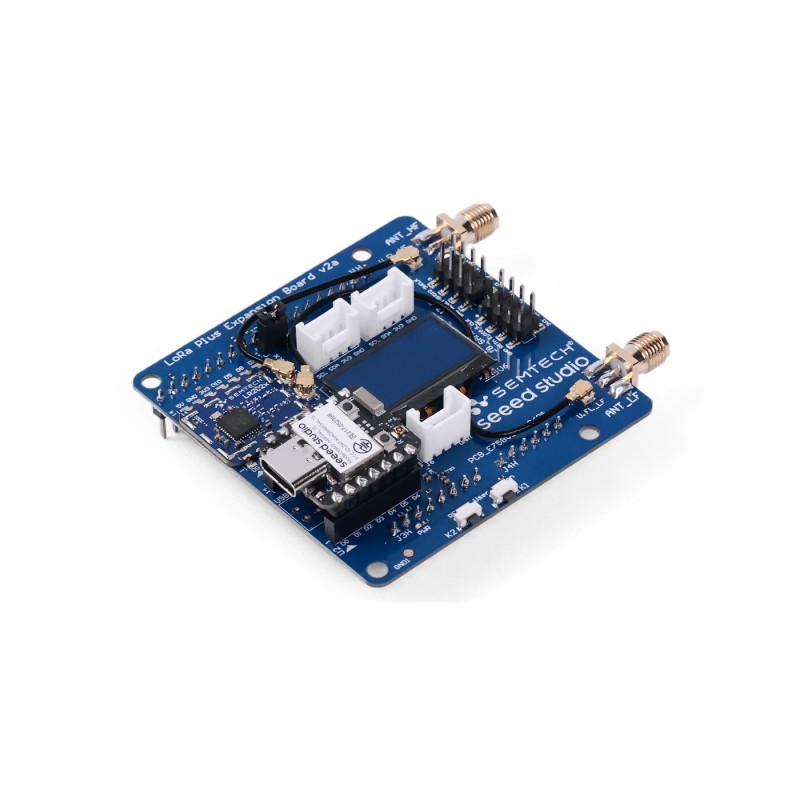

Semtech LR2021 LoRa Plus is an evaluation kit designed for rapid prototyping of IoT devices with long-range and high-speed transmission. Equipped with the fourth-generation LR2021 transceiver, it supports Sub-GHz and 2.4 GHz bands, ensuring global compatibility. Thanks to the FLRC modulation, the kit achieves data rates up to 2.6 Mbps, enabling applications that require higher bandwidth, such as audio or image transmission. The hardware is compatible with Arduino Uno, STM32 Nucleo, and Nordic DK platforms, facilitating integration with existing projects. It supports various modulation schemes: LoRa, FLRC, FSK, and OQPSK, allowing flexible operation depending on the scenario, from low-power sensors to real-time control.


The kit provides high energy efficiency, with low transmit current and high reception sensitivity, resulting in longer battery life and more stable connections. The Fast CAD technology with an intelligent adaptive threshold enables fast channel detection with minimal power consumption. The built-in 0.96" OLED display provides real-time monitoring, and Grove connectors allow quick sensor attachment. The kit enables a smooth transition from prototype to production thanks to full hardware compatibility with popular development platforms.

The LR2021 module delivers impressive performance in Sub-GHz transmission (+22 dBm to -10 dBm) and 2.4 GHz (+12 dBm), with reception sensitivity up to -141.5 dBm for LoRa SF12. The kit supports LF and HF antennas, SPI, I2C, and UART interfaces, as well as SWD debugging. Operating temperature ranges from -40°C to +85°C, and typical power supply is 3.3 V via USB Type-C. The LR2021 kit is an ideal solution for rapid prototyping of long-range, high-throughput IoT devices across various environments and applications.

Features

  • Main chip: LR2021
  • Chip size: 5(W) x 5(L) x 0.9(H) mm
  • Chip package: QFN-48
  • Power supply: 1.8 to 3.7V, recommended 3.3V
  • Sleep current: 470 nA (without RTC), 1.28 μA (with RTC)
  • Power modes: SIMO DC-DC, LDO
  • Maximum operating current (transmit): Sub-GHz 105 mA @ +22 dBm, 2.4 GHz 27 mA @ +14 dBm
  • Maximum operating current (receive): LoRa SF7 @ 125 kHz 5.7 mA, FLRC 10.9 mA
  • Output power: Sub-GHz +22 dBm to -10 dBm, 2.4 GHz +12 dBm
  • Reception sensitivity: LoRa SF12 @ 125 kHz -141.5 dBm, FLRC @ 260 kbps -111 dBm, BLE @ 2 Mbps -97 dBm
  • Phase noise: 915 MHz @ 100 kHz -104 dBc/Hz, 2.45 GHz @ 100 kHz -93 dBc/Hz
  • Antennas: RFI_LF (Sub-GHz), RFI_HF (2.4 GHz), 50Ω impedance
  • Interfaces: SPI, I2C x 2, UART x 1, SWD
  • Operating temperature: -40°C to +85°C
  • Voltage: 3.3V (USB Type-C)
  • Buttons: K1 user, K2 reset
  • Display: 0.96" OLED, 128 x 64 pixels
  • Compatible platforms: Arduino Uno, STM32 Nucleo, Nordic DK
  • Dimensions: 65 x 73 x 27 mm

Kit contains

  • 2 x Wio-LR2021 Modules for 868/915 MHz and 2.4 GHz bands
  • 2 x Seeed Studio XIAO nRF54L15 Modules
  • 2 x LoRa Plus Expansion Boards
  • 2 x LF Antennas (868-915 MHz)
  • 2 x HF Antennas (2.4 GHz)
  • 2 x USB Type-A Male to Type-C Male Cables (1m)
  • 2 x Coaxial U.FL to U.FL Cables (100mm)
