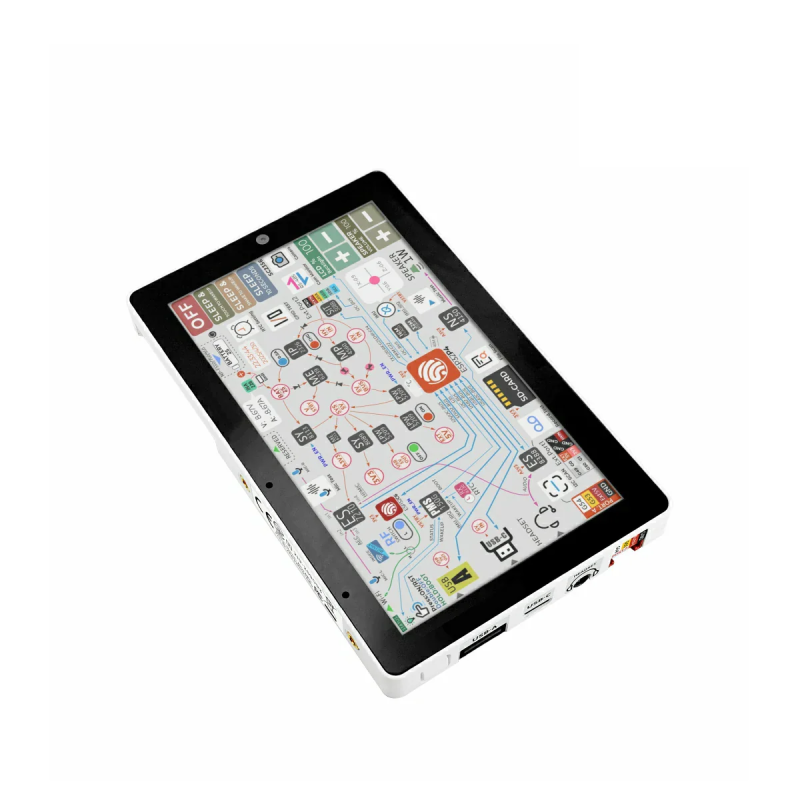

  • Main view
  • Top view
  • Angled view - rear of the device
  • Side view - connectors
  • Sharp angle view - rear of the device
  • Bottom view
  • Sharp angle view - rear (connectors)
  • Side view (labels)
  • Product in packaging
ID: 1200358
5902186330016
zł336.80
Tax included

zł273.82 tax excl.

IoT development terminal equipped with an ESP32-P4 microcontroller, 5″ IPS touchscreen 1280×720, ESP32-C6 Wi-Fi 6 module and a 2 MP camera. The device offers an RS-485 interface, USB ports, expansion connectors and a removable NP-F550 2000 mAh battery enabling mobile operation in IoT and industrial automation projects. M5Stack K145

24h
Available
Available quantity: 2

Description

The M5Stack Tab5 Kit in the K145 version is a portable IoT terminal designed for developing industrial automation systems, monitoring platforms and edge computing applications. The device is built around the ESP32-P4 microcontroller based on the RISC-V architecture, equipped with 16 MB Flash and 32 MB PSRAM, providing high processing performance for advanced embedded applications. Wireless connectivity is handled by the ESP32-C6-MINI-1U module supporting Wi-Fi 6 in the 2.4 GHz band as well as Thread and Zigbee protocols. The antenna system allows switching between the built-in 3D antenna and an external antenna connected via an MMCX connector.

The terminal features a 5″ IPS touchscreen display with a resolution of 1280 × 720 pixels using the MIPI-DSI interface and a SC2356 2 MP camera connected through MIPI-CSI, enabling image processing and edge AI applications such as object detection and video analysis. USB Type-A (Host) and USB Type-C (USB 2.0 OTG) ports allow connection of external peripherals, while the industrial RS-485 interface based on the SIT3088 transceiver with a switchable 120 Ω termination resistor enables integration with industrial communication systems.


The device provides extensive expansion capabilities through HY2.0-4P, M5-Bus and GPIO_EXT connectors. A microSD card slot enables local data storage, while STAMP expansion pads allow integration of additional communication modules such as LoRaWAN, NB-IoT and Cat-M. The audio system based on the ES8388 codec and ES7210 AEC front-end supports two microphones, a 1 W speaker and a 3.5 mm audio jack for recording, playback and voice recognition applications.

The terminal also integrates a BMI270 motion sensor (accelerometer and gyroscope) enabling motion detection and system wake-up, and an RX8130CE real-time clock for precise timekeeping and scheduled interrupts. Power is supplied by a removable NP-F550 Li-ion battery with a capacity of 2000 mAh supported by the IP2326 charging management IC and MP4560 power converter. Power monitoring is handled by the INA226 chip. The enclosure includes a 1/4″-20 tripod mount allowing installation on tripods or mounting brackets.

Features

  • Microcontroller: ESP32-P4NRW32 RISC-V, dual-core 360 MHz + LP core 40 MHz
  • Wireless module: ESP32-C6-MINI-1U
  • Wireless connectivity: Wi-Fi 6 2.4 GHz, Thread, Zigbee
  • Flash memory: 16 MB
  • PSRAM: 32 MB
  • Display: 5″ IPS TFT 1280 × 720, MIPI-DSI interface
  • Camera: SC2356 2 MP (1600 × 1200), MIPI-CSI
  • USB: 1 × USB Type-A Host, 1 × USB Type-C OTG (USB 2.0)
  • RS-485 interface: SIT3088 with switchable 120 Ω termination resistor
  • Expansion interfaces: HY2.0-4P, M5-Bus, GPIO_EXT
  • Storage slot: microSD
  • Expansion pads: STAMP (Cat-M, NB-IoT, LoRaWAN)
  • Audio codec: ES8388
  • Microphone front-end: ES7210 AEC
  • Microphones: 2
  • Speaker: 1 W
  • Audio output: 3.5 mm jack
  • Motion sensor: BMI270 (accelerometer + gyroscope)
  • RTC: RX8130CE
  • Battery: NP-F550 Li-ion 7.4 V 2000 mAh
  • Charging IC: IP2326
  • Power converter: MP4560
  • Power monitoring: INA226
  • Input voltage range: 6 – 24 V
  • Operating temperature: 0 – 40°C
  • Dimensions: 128 × 80 × 26.7 mm
  • Weight: 277.4 g

Kit includes

  • Tab5 IoT terminal x1
  • 1.25-6P terminal cable x1
  • NP-F550 2000 mAh battery x1
1200358

Data sheet

Microcontroller
ESP32-P4
Flash memory
16 MB
Number of I/O
Other
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
No
MicroSD slot
Yes
Length
128 mm
Width
80 mm
USB connector type
USB-C, USB-A
