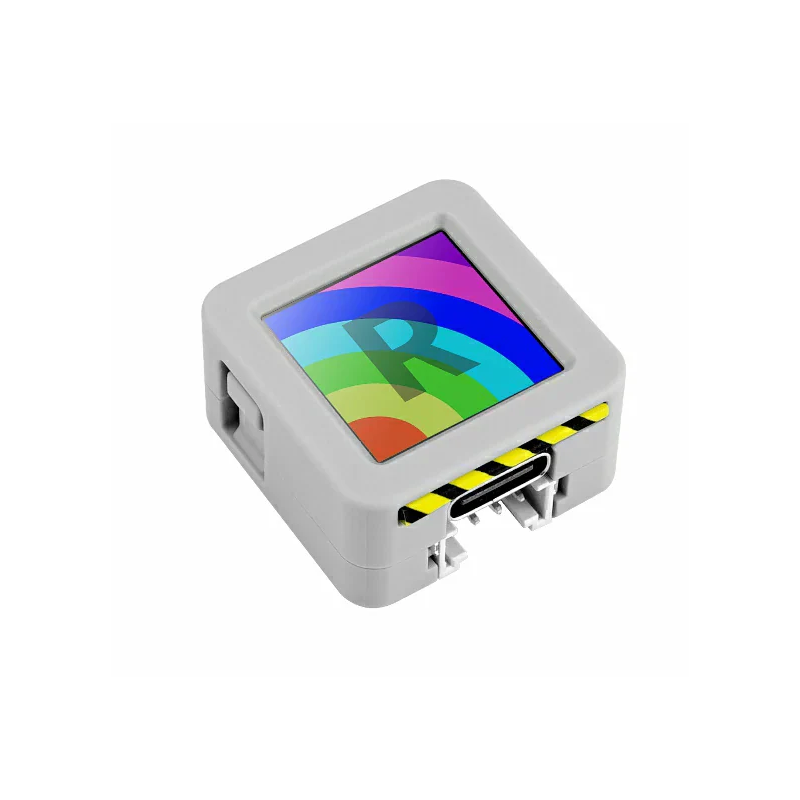

ATOMS3R Development Kit - development module with ESP32-S3-PICO-1 and 0.85" display
search
  • ATOMS3R Development Kit - development module with ESP32-S3-PICO-1 and 0.85" display
  • Top view
  • Bottom view
ID: 1197044
5902186301177
zł93.78
Tax included

zł76.24 tax excl.

Miniature, multifunctional controller based on ESP32-S3 with WiFi, color IPS display and 9-axis sensors, designed for compact IoT and educational projects. With rich interface options and improved connectivity, it is an ideal solution for embedded applications and wireless control. M5stack C126

24h
Available
Available quantity: 1

Description

AtomS3R is a compact, highly integrated programmable controller based on the ESP32-S3-PICO-1-N8R8 chip, featuring built-in WiFi, 8 MB of FLASH memory, and 8 MB of PSRAM. The device is equipped with a 0.85-inch color IPS screen and a programmable button placed directly below the screen, enabling convenient control. It also includes a 5V to 3.3V power management circuit, as well as a built-in 3-axis geomagnetic sensor BMM150 and a 6-axis motion sensor BMI270.


AtomS3R supports infrared transmission, and with a Type-C connector, both power supply and firmware uploading are possible. The device also features an HY2.0-4P expansion port and six GPIO and power pins located on the bottom, which greatly simplifies integration with other modules. Compared to previous versions, the improved 3D antenna provides better connection stability and quality. Thanks to its small size, it is ideal for embedded applications such as smart devices, IoT projects, and educational programming tools.

Features

  • Microcontroller: ESP32-S3-PICO-1-N8R8 (dual-core Xtensa LX7, up to 240 MHz)
  • Memory: 8MB FLASH, 8MB PSRAM
  • Display: 0.85" color IPS, resolution 128x128, driver GC9107
  • Motion sensor: BMI270 (6-axis), accuracy: 0.05% (acceleration), 0.05°/s (angular velocity)
  • Geomagnetic sensor: BMM150 (3-axis), accuracy: 0.3 μT
  • IR transmission: 12.46m @ ∠180°, 1.45m @ ∠90°, 3.88m @ ∠45°
  • Button: programmable

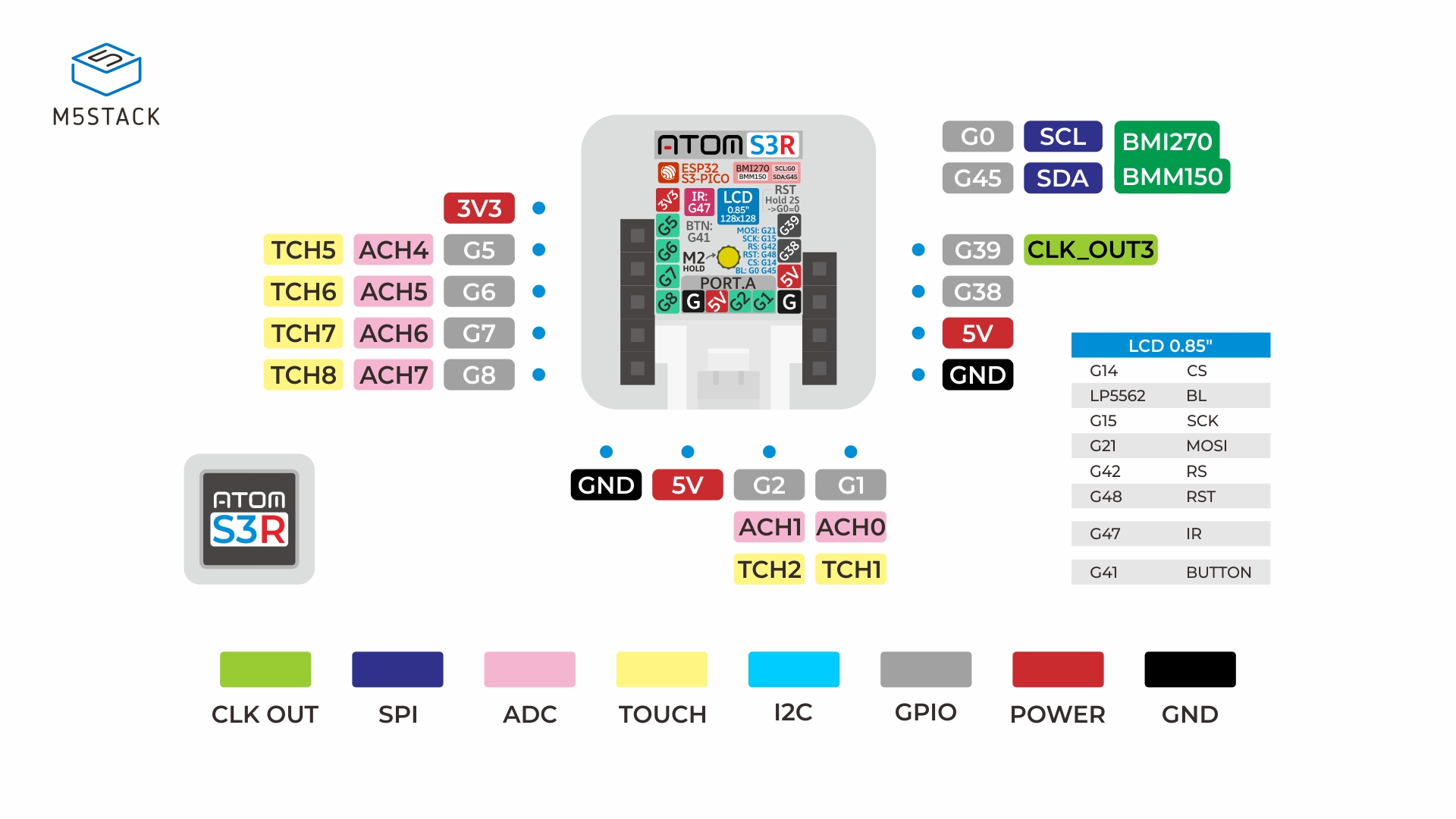

  • Connectors: USB Type-C (power and programming), HY2.0-4P, 6x GPIO (G5, G6, G7, G8, G38, G39)
  • Operating current (LCD): 56.69 mA @ DC5V
  • Standby current (USB): 92.50 μA @ DC5V
  • Operating temperature: 0°C to 40°C
  • Dimensions: 24 x 24 x 12.9 mm
  • Weight: 6.7g
1197044

Data sheet

Microcontroller
ESP32
Flash memory
8 MB
Number of I/O
06
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
No
MicroSD slot
No
Length
24 mm
Width
24mm
USB connector type
USB type C
