Compact, programmable controller with built-in camera and ESP32-S3-PICO-1-N8R8 module, offering 8MB FLASH and 8MB PSRAM. Equipped with GC0308 0.3 MP camera and integrated 9-axis sensor system, it is ideal for IoT, device monitoring and education applications, with USB Video Class (UVC) function enabling seamless integration with computers without the need to install drivers. M5stack C126-CAM

24h
Available
Available quantity: 2

Description

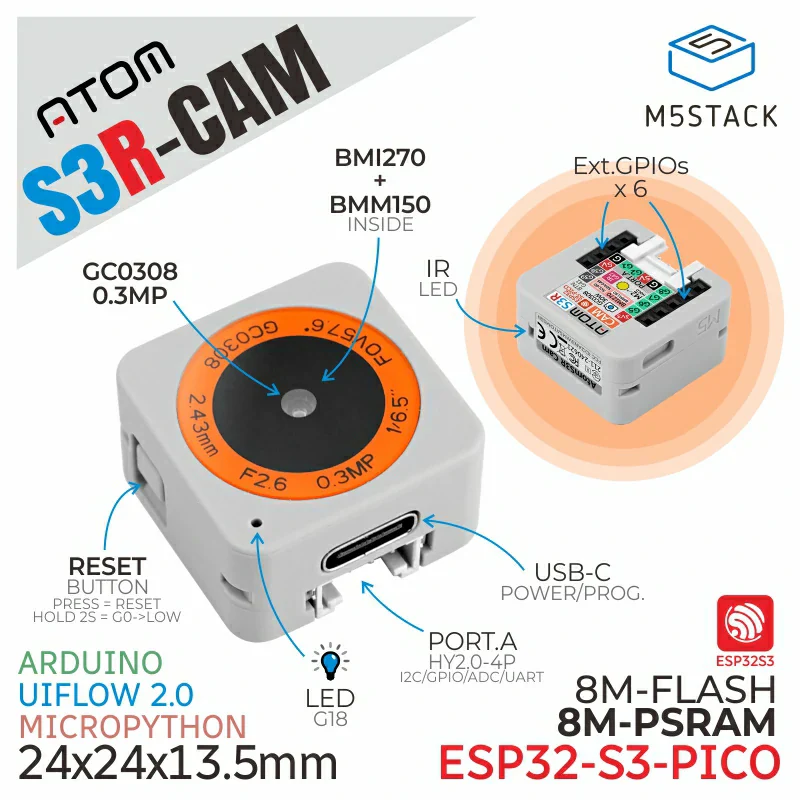

AtomS3R Cam is a miniaturized programmable controller with a built-in camera, utilizing the ESP32-S3-PICO-1-N8R8 as the main control chip. It has 8MB of FLASH memory and 8MB of PSRAM, along with a WiFi module, making it an ideal solution for IoT applications and device monitoring. The product is equipped with a GC0308 camera with a 0.3 MP resolution, supporting image capture and IR transmission control. The camera is protected by glass, preventing dust buildup and improving image quality.


Thanks to the pre-installed UVC (USB Video Class) software, the AtomS3R Cam functions as a USB camera that does not require driver installation. The USB Type-C connector allows for device power and software updates. The device also features an integrated 9-axis sensor system (BMI270 6-axis sensor and BMM150 geomagnetic sensor). With these features, the AtomS3R Cam is a versatile device that can be used in various applications such as educational tools, IoT device monitoring, and other electronics and programming projects. External connectors allow for easy expansion and customization to meet different needs.

Features

  • Main controller: ESP32-S3-PICO-1-N8R8, Dual-core Xtensa LX7 processor, up to 240MHz
  • Built-in memory: 8MB FLASH, 8MB PSRAM
  • Sensor system: 9-axis (BMI270 6-axis sensor + BMM150 3-axis geomagnetic sensor)
  • Camera: GC0308, resolution 0.3 MP, maximum frame rate: 30 fps
  • Camera panel material: Glass, improves image quality and protects from dust
  • IR transmission range: 12.46 m at 180° angle, 1.45 m at 90° angle, 3.88 m at 45° angle
  • Power supply via USB Type-C port, power supply via Grove 5V port
  • Expansion ports: HY2.0-4P, 6 reserved GPIO pins (G5, G6, G7, G8, G38, G39)
  • Operating temperature: 0°C to 40°C
  • Dimensions: 24 x 24 x 13.5 mm
  • Weight: 7.3 g
