Industrial-grade single-board computer (SBC) with an Intel N150 processor (4 cores/4 threads, up to 3.60 GHz) and an RP2040 coprocessor for real-time tasks and GPIO support. Equipped with 16 GB LPDDR5 4800MT/s with IBECC and 128 GB eMMC 5.1, it provides high performance and stability for industrial and IoT applications. It offers a rich set of interfaces, including 3× USB 3.2 Gen 2, HDMI 2.1, eDP, Gigabit Ethernet, M.2, and PCIe, for easy integration with advanced systems. It supports Windows 10/11 and Ubuntu 22.04/24.04. DFRobot DFR1227

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

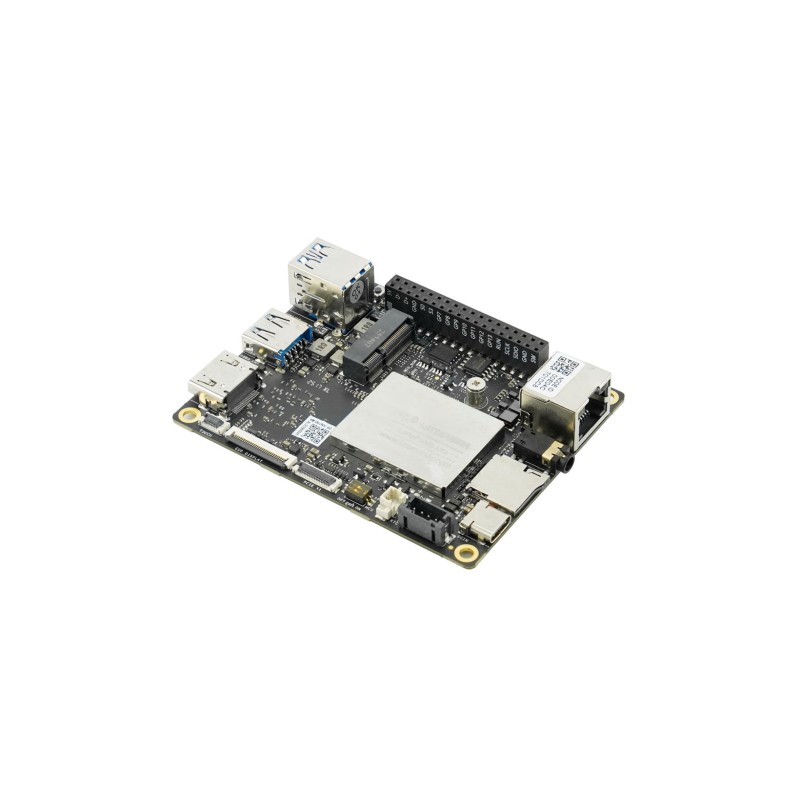

LattePanda IOTA is a compact, high-performance industrial-grade single board computer designed as a bridge between rapid prototyping and commercial deployment. Equipped with an Intel® N150 processor (4 cores / 4 threads, up to 3.60 GHz) and an RP2040 microcontroller (Dual-Core Arm Cortex-M0+), it delivers a significant performance increase compared to the previous generation. With 16 GB LPDDR5 4800MT/s memory with IBECC support and built-in 128 GB eMMC 5.1 storage, it ensures stable, fast, and energy-efficient operation in demanding industrial and embedded applications.


The device offers configurable TDP in the range of 6W to 15W, enabling fanless operation for silent systems or full performance with active cooling. A rich set of interfaces – including 3× USB 3.2 Gen 2 (10Gbps), Gigabit Ethernet, HDMI 2.1, eDP, as well as M.2 and PCIe connectors – allows flexible integration in industrial automation systems, robotics, intelligent IoT gateways, HMI systems, and interactive installations. The built-in RP2040 coprocessor enables GPIO handling, motor control, sensor reading, and real-time task execution without loading the main CPU.

Compact dimensions of 88 × 70 mm facilitate integration into existing projects without modifying the enclosure or mechanical design. Support for Windows 10, Windows 11, and Ubuntu 22.04/24.04 ensures broad compatibility with desktop, industrial, and cloud-based software solutions.

Features

  • Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
  • RAM: 16GB LPDDR5 4800MT/s with IBECC support
  • Storage: 128GB eMMC 5.1
  • Operating system: supports Windows 10/11, Ubuntu 22.04/24.04
  • Video outputs:
    • HDMI 2.1 – up to 4096 × 2160 @60Hz
    • eDP 1.4b (2 Lanes) – up to 1920 × 1080 @60Hz
  • USB ports:
    • 3× USB 3.2 Gen 2 Type-A (10Gbps)
    • 1× USB 2.0 Pin Header
    • 1× USB Type-C PD 15V (power input)
  • Network: 1× 1GbE RJ45 (WOL support)
  • Expansion connectors:
    • 1× M.2 E Key 2230 Slot
    • 1× TF Card Slot
    • 1× PCIe FPC Connector
  • Coprocessor: RP2040 MCU
  • GPIO and additional features:
    • up to 3× analog inputs
    • up to 16× digital I/O
    • 1× UART
    • 1× USB 2.0
    • 1× PH2.0 4-Pin connector (power)
    • 1× RTC battery connector
    • 1× DIP Switch
    • 1× Power Management Connector
    • 1× fan connector
  • Audio: 3.5 mm Microphone/Headphone Combo
  • Configurable TDP: 6W to 15W
  • Power supply:
    • USB Type-C: PD 15V
    • PH2.0 4-Pin Connector: 10–15V DC
  • Operating temperature range: 0~60°C
  • Operating humidity: 0 to 80% RH
  • Dimensions: 88 × 70 × 19 mm

Kit contains

  • LattePanda IOTA (N150 16GB/128GB)
  • RTC battery CR2032 3V
