Industrial-grade single-board computer (SBC) with an Intel N150 processor (4 cores/4 threads, up to 3.60 GHz) and an RP2040 coprocessor for real-time tasks and GPIO support. Equipped with 8 GB LPDDR5 4800MT/s with IBECC and 64 GB eMMC 5.1, it provides high performance and stability for industrial and IoT applications. It offers a rich set of interfaces, including 3× USB 3.2 Gen 2, HDMI 2.1, eDP, Gigabit Ethernet, M.2, and PCIe, for easy integration with advanced systems. It supports Windows 10/11 and Ubuntu 22.04/24.04. DFRobot DFR1226

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

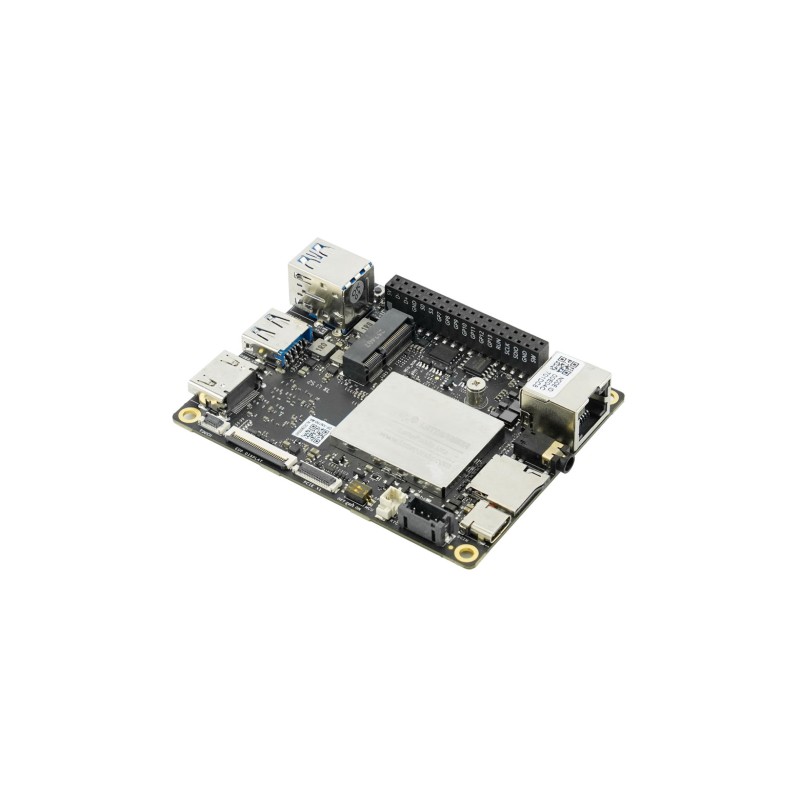

LattePanda IOTA is a compact, high-performance industrial-grade single-board computer, designed as a bridge between rapid prototyping and commercial deployment. It is equipped with a Intel® Processor N150 (4 cores / 4 threads, up to 3.60 GHz) and a RP2040 microcontroller (Dual-Core Arm Cortex-M0+), offering a significant performance increase over previous generations while maintaining energy efficiency. With 8 GB LPDDR5 4800MT/s RAM with IBECC support and built-in 64 GB eMMC 5.1 storage, it ensures stable and fast operation in demanding industrial and embedded applications.

LattePanda IOTA - interfaces

LattePanda IOTA features a configurable TDP range of 6 W to 15 W, allowing for passive operation (fanless) or full performance with active cooling. Its rich set of interfaces – including 3× USB 3.2 Gen 2 (10 Gbps), Gigabit Ethernet, HDMI 2.1, eDP 1.4b, M.2 E Key, and PCIe – enables flexible integration in industrial automation systems, robotics, IoT gateways, multimedia kiosks, and interactive installations. The RP2040 coprocessor supports direct GPIO handling, motor control, sensor reading, and real-time tasks without loading the main CPU.

The device retains a compact form factor of 88 × 70 × 19 mm, making it easy to integrate into existing mechanical designs. Support for Windows 10, Windows 11, and Ubuntu 22.04/24.04 ensures full compatibility with desktop and industrial software, making LattePanda IOTA a versatile platform for edge computing and next-generation IoT solutions.

Features

  • Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
  • RAM: 8 GB LPDDR5 4800MT/s with IBECC support
  • Storage: 64 GB eMMC 5.1
  • Operating system: Windows 10/11, Ubuntu 22.04/24.04
  • Video outputs:
    • HDMI 2.1 – up to 4096 × 2160 @60 Hz
    • eDP 1.4b (2 Lanes) – up to 1920 × 1080 @60 Hz
  • USB ports:
    • 3× USB 3.2 Gen 2 Type-A (10 Gbps)
    • 1× USB 2.0 Pin Header
    • 1× USB Type-C PD 15 V (power input)
  • Network: 1× 1 GbE RJ45 (WOL supported)
  • Expansion connectors:
    • 1× M.2 E Key 2230
    • 1× microSD card slot
    • 1× PCIe FPC connector
  • Coprocessor: RP2040 MCU
  • GPIO and additional functions:
    • up to 3× analog inputs
    • up to 16× digital I/O
    • 1× UART
    • 1× USB 2.0
    • 1× PH2.0 4-Pin power connector
    • 1× RTC battery connector
    • 1× DIP Switch
    • 1× Power Management Connector
    • 1× fan connector
  • Audio: 3.5 mm Microphone/Headphone Combo
  • Configurable TDP: 6 W to 15 W
  • Power input:
    • USB Type-C: PD 15 V
    • PH2.0 4-Pin: 10–15 V DC
  • Operating temperature: 0 ~ 60°C
  • Operating humidity: 0–80% RH
  • Dimensions: 88 × 70 × 19 mm

Kit contains

  • LattePanda IOTA (N150 8 GB / 64 GB)
  • RTC battery CR2032 3 V
