ID: 1204196
zł1,056.58
Tax included

zł859.01 tax excl.

A compact computer-on-module compute module with an Intel N100 processor, 16 GB of LPDDR5 memory, and 64 GB of eMMC storage. The module offers three HDMI/DisplayPort video outputs, numerous USB ports, PCIe 3.0, and SATA 3.0 lanes, enabling flexible integration in industrial and IoT systems. An adjustable TDP from 6 to 35 W allows for performance tailored to application needs, and support for Windows 10, Windows 11, and Ubuntu ensures broad software compatibility. Its compact size and extensive pinout make the module ideal for embedded projects and modern automation systems. DFRobot DFR1147

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

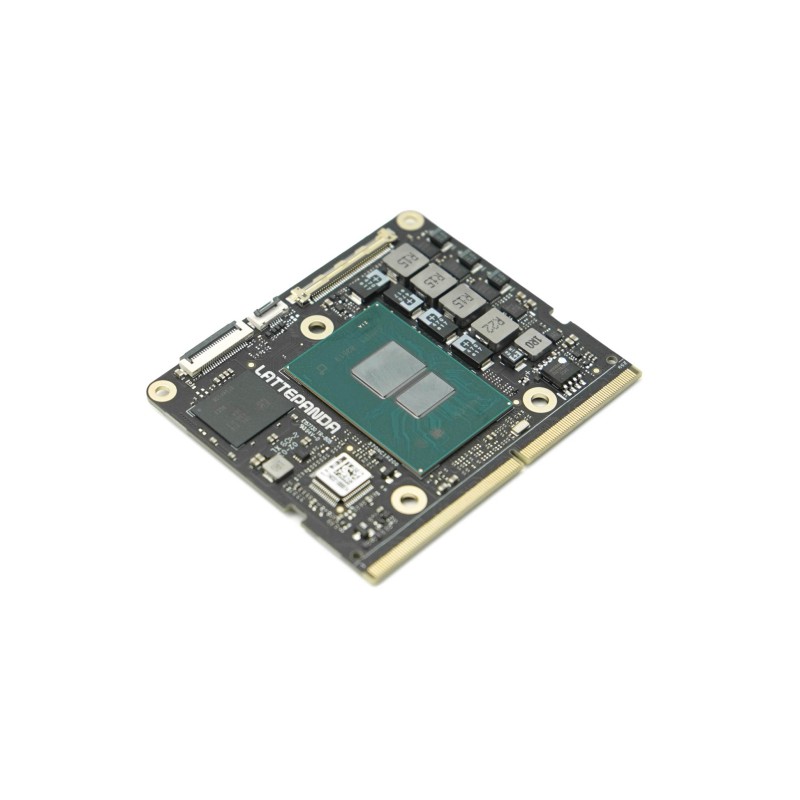

LattePanda Mu is a compact computer-on-module designed for professional embedded applications and industrial projects. It is powered by an Intel Processor N100 with four cores and clock speeds up to 3.4 GHz, providing stable and efficient performance across a wide range of applications. The module features 16 GB LPDDR5 4800MT/s memory with IBECC support for enhanced reliability in environments requiring high data integrity. Built-in 64 GB eMMC 5.1 storage enables fast system boot-up and efficient storage of applications and data.


Thanks to its compact size, LattePanda Mu can be easily integrated into space-constrained devices such as AI robots, mobile terminals, industrial equipment, or IoT systems. The module provides a wide range of interfaces, including 3 HDMI/DisplayPort outputs, multiple USB ports, PCIe 3.0 lanes, and SATA 3.0 ports, enabling the design of custom carrier boards to meet specific requirements. A configurable TDP ranging from 6W to 35W allows optimization between power efficiency and performance – from energy-saving passive cooling to high-performance active cooling configurations.

Open-source carrier board design files (KiCAD) significantly accelerate hardware design and implementation. LattePanda Mu supports Windows 10, Windows 11, and Ubuntu, providing extensive software flexibility. Its rich set of interfaces and expandability make it a solid foundation for modern industrial systems, edge computing devices, and smart automation solutions. This versatile module combines x86 architecture with a compact form factor and professional integration capabilities.

Features

  • Processor: Intel Processor N100, 4 cores / 4 threads, up to 3.4GHz
  • RAM: 16GB LPDDR5 4800MT/s with IBECC support
  • Storage: 64GB eMMC 5.1
  • Configurable TDP: 6W to 35W
  • Multiple OS support: Windows 10, Windows 11, Ubuntu
  • Video outputs: 3 outputs; maximum resolution 4096 × 2160@60Hz
  • PCIe 3.0: up to 9 lanes
  • SATA 3.0: up to 2 ports
  • USB 3.2 (10Gbps): up to 4 ports
  • USB 2.0 (480Mbps): 8 ports
  • Additional interfaces: I2C, UART, and up to 64 expandable GPIOs
  • Power supply: 9 to 20V
  • Operating environment: 0 to 60°C; 0 to 80% relative humidity
  • Dimensions: 69.6 × 60 mm

Kit contains

  • LattePanda Mu Compute Module (N100 16GB)
