ID: 1204192
zł1,587.93
Tax included

zł1,291.00 tax excl.

A compact computer-on-module (COM) with an Intel Core i3-N305 processor (8 cores, up to 3.8 GHz), designed for industrial applications and embedded systems. Equipped with 16 GB LPDDR5 4800MT/s with IBECC and 64 GB eMMC 5.1, it delivers high performance and stability in demanding applications. It offers extensive expansion options, including up to three 4K video outputs, PCIe 3.0 lanes, SATA, and multiple USB ports, enabling custom backplane design. Configurable TDP ranging from 9 to 35 W and Windows 10/11 and Ubuntu support allow for flexible adaptation to specific OEM and IoT applications. DFRobot DFR1149

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

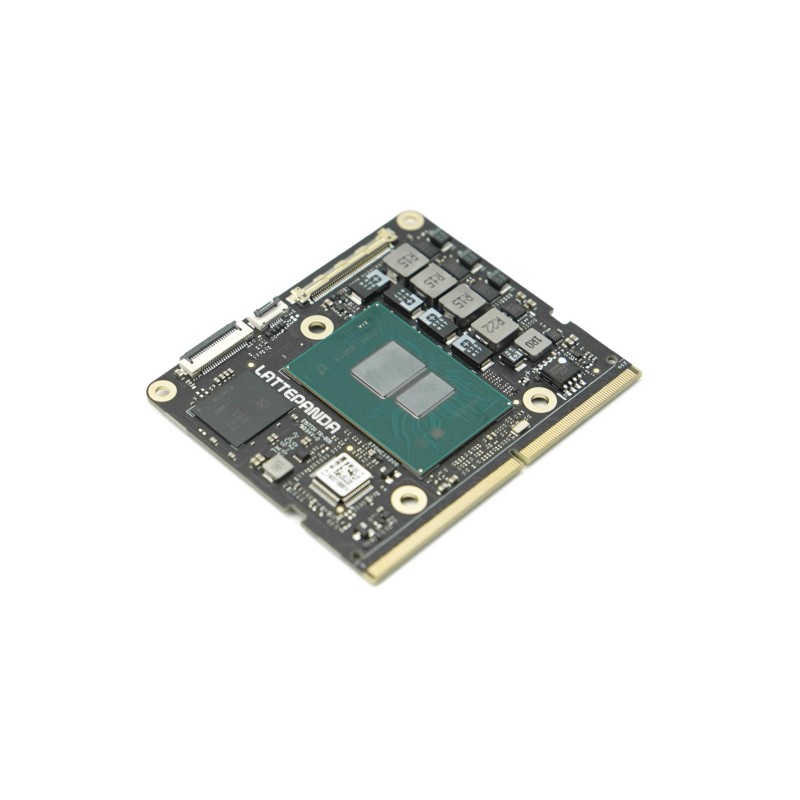

LattePanda Mu is a high-performance and compact computer-on-module designed for professional industrial applications and embedded projects. At its core is an Intel® Core™ i3-N305 processor featuring eight cores and clock speeds up to 3.8 GHz, delivering strong computing power and smooth multitasking performance. The module is equipped with 16 GB LPDDR5 4800MT/s memory with IBECC support, ensuring reliable operation even in demanding environments. Built-in 64 GB eMMC 5.1 storage enables fast data access and operating system storage.


Thanks to its compact dimensions, LattePanda Mu is ideal for space-constrained devices such as AI robots, industrial terminals, and mobile measurement systems. The module provides a wide range of exposed pins, including support for up to 3 HDMI/DisplayPort outputs, multiple USB ports, and PCIe 3.0 lanes, enabling the design of fully customized carrier boards. A configurable TDP ranging from 9W to 35W allows optimization between energy efficiency and maximum performance, depending on application requirements.

Open-source carrier board design files (KiCAD) significantly reduce time-to-market and simplify the hardware development process. LattePanda Mu supports multiple operating systems, including Windows 10, Windows 11, and Ubuntu, providing software flexibility and compatibility with existing applications. It is an ideal solution for system integrators, OEM manufacturers, and companies developing their own hardware platforms. The module combines the high performance of x86 architecture with the scalability typical of embedded systems. With its rich interface set and configurable design options, it serves as a solid foundation for modern industrial and commercial applications.

Features

  • Processor: Intel® Core™ i3-N305, 8 cores / 8 threads, up to 3.8GHz
  • RAM: 16GB LPDDR5 4800MT/s with IBECC support
  • Storage: 64GB eMMC 5.1
  • Configurable TDP: 9W to 35W
  • Multiple OS support: Windows 10, Windows 11, Ubuntu
  • Video outputs: 3 outputs, maximum resolution 4096 × 2160@60Hz
  • PCIe 3.0: up to 9 lanes
  • SATA 3.0: up to 2 ports
  • USB 3.2 (10Gbps): up to 4 ports
  • USB 2.0 (480Mbps): 8 ports
  • Additional interfaces: I2C, UART, and GPIO (up to 64 expandable GPIOs)
  • Power supply: 9 to 20 V
  • Operating environment: 0 to 60°C; 0~80% relative humidity
  • Dimensions: 69.6 × 60 mm

Kit contains

  • LattePanda Mu Compute Module (N305 16GB)
