ID: 1204194
zł1,172.63
Tax included

zł953.36 tax excl.

Industrial-grade single-board computer with an Intel N150 processor (4 cores/4 threads, up to 3.60 GHz) and an RP2040 coprocessor for real-time tasks and GPIO support. Equipped with 8 GB LPDDR5 4800MT/s with IBECC and 64 GB eMMC 5.1, it delivers high performance and stability for industrial and IoT applications. It offers a rich set of interfaces, including 3× USB 3.2 Gen 2, HDMI 2.1, eDP, Gigabit Ethernet, M.2, and PCIe, for easy integration with advanced systems. It supports Windows 10/11 and Ubuntu 22.04/24.04, and comes pre-activated with Windows 11 IoT Enterprise LTSC 2024. DFRobot DFR1226-ENT

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

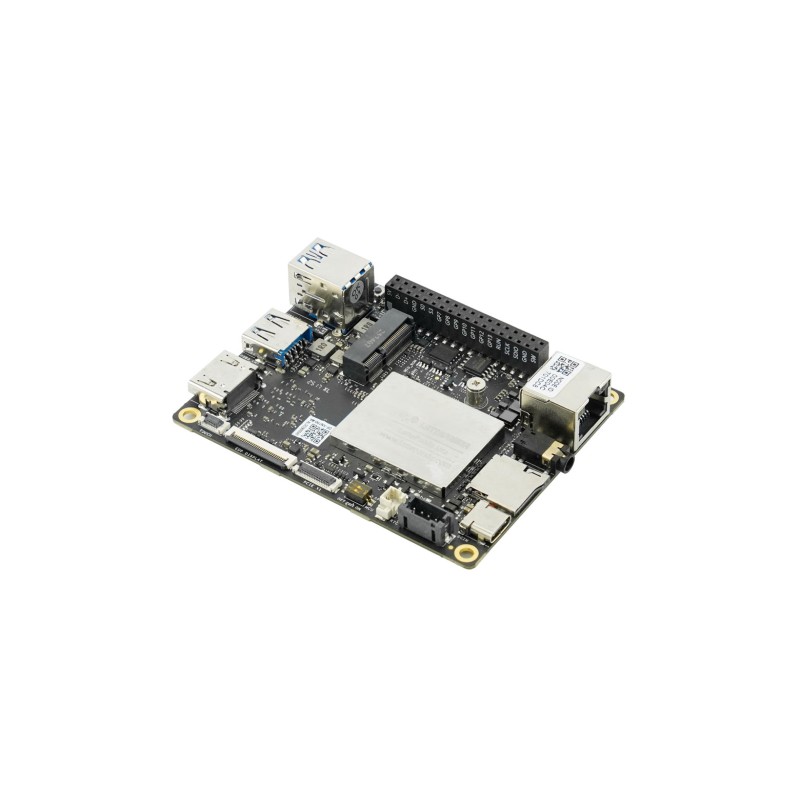

LattePanda IOTA is a compact, high-performance industrial-grade single board computer designed as a bridge between rapid prototyping and commercial deployment. Equipped with an Intel® N150 processor (4 cores / 4 threads, up to 3.60 GHz) and an RP2040 microcontroller (Dual-Core Arm Cortex-M0+), it delivers a significant performance increase compared to the previous LattePanda V1 generation. With 8 GB LPDDR5 4800MT/s memory with IBECC support and built-in 64 GB eMMC 5.1 storage, it ensures stable and fast operation in demanding applications.


LattePanda IOTA offers configurable TDP in the range of 6W to 15W, enabling fanless operation or full performance with active cooling. A rich set of interfaces – including 3× USB 3.2 Gen 2 (10Gbps), Gigabit Ethernet, HDMI 2.1, eDP, as well as M.2 and PCIe connectors – allows flexible integration in industrial automation systems, robotics, intelligent IoT gateways, and interactive installations. The RP2040 coprocessor enables GPIO handling, motor control, sensor reading, and real-time task execution without loading the main CPU.

The device maintains the classic 88 × 70 mm form factor, enabling seamless migration of existing projects without modifying the enclosure or mechanical design. Support for Windows 10, Windows 11, and Ubuntu 22.04/24.04 ensures full compatibility with desktop and industrial software. The kit includes a Windows 11 IoT Enterprise LTSC 2024 license (pre-activated).

Features

  • Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
  • RAM: 8GB LPDDR5 4800MT/s with IBECC support
  • Storage: 64GB eMMC 5.1
  • Operating system: Windows (Pre-activated), supports Windows 10/11, Ubuntu 22.04/24.04
  • License: Windows 11 IoT Enterprise LTSC 2024 (license sticker included)
  • Video outputs:
    • HDMI 2.1 – up to 4096 × 2160 @60Hz
    • eDP 1.4b (2 Lanes) – up to 1920 × 1080 @60Hz
  • USB ports:
    • 3× USB 3.2 Gen 2 Type-A (10Gbps)
    • 1× USB 2.0 Pin Header
    • 1× USB Type-C PD 15V (power input)
  • Network: 1× 1GbE RJ45 (WOL support)
  • Expansion connectors:
    • 1× M.2 E Key 2230
    • 1× microSD card slot
    • 1× PCIe FPC connector
  • Coprocessor: RP2040 MCU
  • GPIO and additional features:
    • up to 3× analog inputs
    • up to 16× digital I/O
    • 1× UART
    • 1× USB 2.0
    • 1× PH2.0 4-Pin connector (power)
    • 1× RTC battery connector
    • 1× DIP switch
    • 1× Power Management Connector
    • 1× fan connector
  • Audio: 3.5 mm Microphone/Headphone Combo
  • Configurable TDP: 6W to 15W
  • Power supply:
    • USB Type-C: PD 15V
    • PH2.0 4-Pin Connector: 10–15V DC
  • Operating temperature range: 0~60°C
  • Operating humidity: 0 to 80% RH
  • Dimensions: 88 × 70 × 19 mm

Kit contains

  • LattePanda IOTA (N150 8GB/64GB) with Windows IoT Enterprise OS
  • RTC battery CR2032 3V
