ID: 1204193
zł1,447.46
Tax included

zł1,176.80 tax excl.

Industrial-grade single-board computer with an Intel N150 processor (4 cores/4 threads, up to 3.60 GHz) and an RP2040 coprocessor for real-time tasks and GPIO support. Equipped with 16 GB LPDDR5 4800MT/s with IBECC and 128 GB eMMC 5.1, it delivers high performance and stability for industrial and IoT applications. It offers a rich set of interfaces, including 3× USB 3.2 Gen 2, HDMI 2.1, eDP, Gigabit Ethernet, M.2, and PCIe, for easy integration with advanced systems. It supports Windows 10/11 and Ubuntu 22.04/24.04, and comes pre-activated with Windows 11 IoT Enterprise LTSC 2024. DFRobot DFR1227-ENT

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

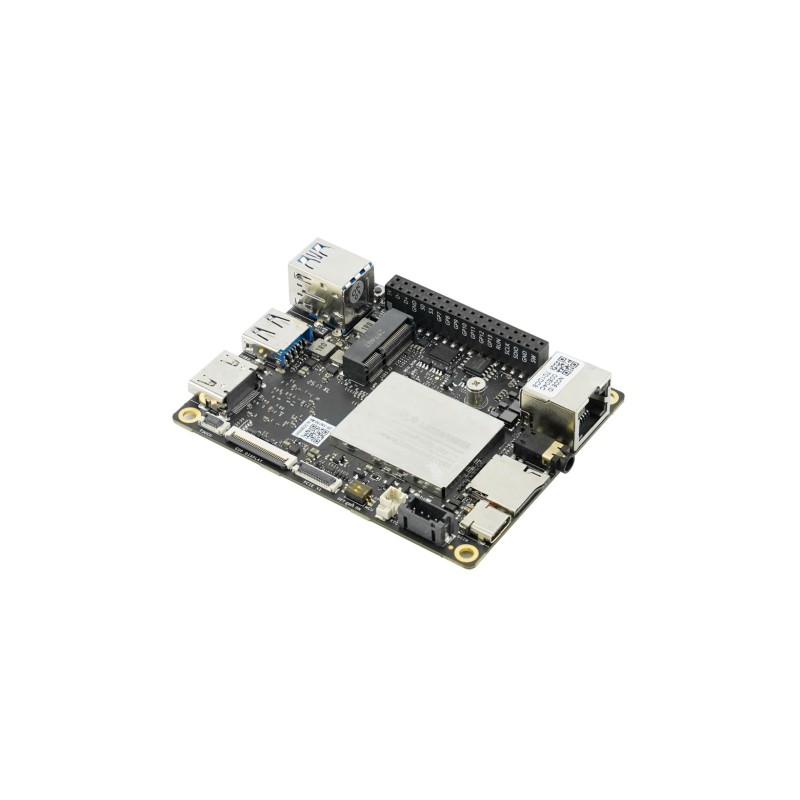

LattePanda IOTA x86 Single Board Computer is a compact, high-performance industrial-grade single board computer designed as a bridge between rapid prototyping and commercial deployment. Equipped with an Intel® Processor N150 (4 cores / 4 threads, up to 3.60 GHz) and an RP2040 microcontroller (Dual-Core Arm Cortex-M0+), it delivers a significant performance increase compared to the previous LattePanda V1 generation. With 16 GB LPDDR5 4800MT/s memory with IBECC support and built-in 128 GB eMMC 5.1 storage, it ensures stable and fast operation in demanding applications.


LattePanda IOTA features configurable TDP ranging from 6W to 15W, enabling passive (fanless) operation or full performance with active cooling. A rich set of interfaces – including 3× USB 3.2 Gen 2 (10Gbps), Gigabit Ethernet, HDMI 2.1, eDP, as well as M.2 and PCIe connectors – allows flexible integration into industrial automation systems, robotics, smart IoT gateways, and interactive installations. The integrated RP2040 coprocessor enables GPIO control, motor driving, sensor data acquisition, and real-time task handling without loading the main CPU.

The board retains the classic 88 × 70 mm form factor, allowing seamless migration of existing projects without modifying enclosures or mechanical structures. Support for Windows 10, Windows 11, and Ubuntu 22.04/24.04 ensures full compatibility with desktop and industrial software. The package includes a pre-activated Windows 11 IoT Enterprise LTSC 2024 license.

Features

  • Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
  • RAM: 16GB LPDDR5 4800MT/s with IBECC support
  • Storage: 128GB eMMC 5.1
  • Operating system: Windows (pre-activated), supports Windows 10/11, Ubuntu 22.04/24.04
  • License: Windows 11 IoT Enterprise LTSC 2024 (license sticker included)
  • Video outputs:
    • HDMI 2.1 – up to 4096 × 2160 @60Hz
    • eDP 1.4b (2 Lanes) – up to 1920 × 1080 @60Hz
  • USB ports:
    • 3× USB 3.2 Gen 2 Type-A (10Gbps)
    • 1× USB 2.0 Pin Header
    • 1× USB Type-C PD 15V (power input)
  • Network: 1× 1GbE RJ45 (WOL support)
  • Expansion connectors:
    • 1× M.2 E Key 2230 slot
    • 1× TF card slot
    • 1× PCIe FPC connector
  • Coprocessor: RP2040 MCU
  • GPIO and additional functions:
    • up to 3× analog inputs
    • up to 16× digital I/O
    • 1× UART
    • 1× USB 2.0
    • 1× PH2.0 4-pin connector (power)
    • 1× RTC battery connector
    • 1× DIP switch
    • 1× Power Management connector
    • 1× fan connector
  • Audio: 3.5 mm microphone/headphone combo jack
  • Configurable TDP: 6W to 15W
  • Power supply:
    • USB Type-C: PD 15V
    • PH2.0 4-pin connector: 10–15V DC
  • Operating temperature range: 0~60°C
  • Operating humidity: 0 to 80% RH
  • Dimensions: 88 × 70 × 19 mm

Kit contains

  • LattePanda IOTA (N150 16GB/128GB) with Windows IoT Enterprise OS
  • RTC battery CR2032 3V
