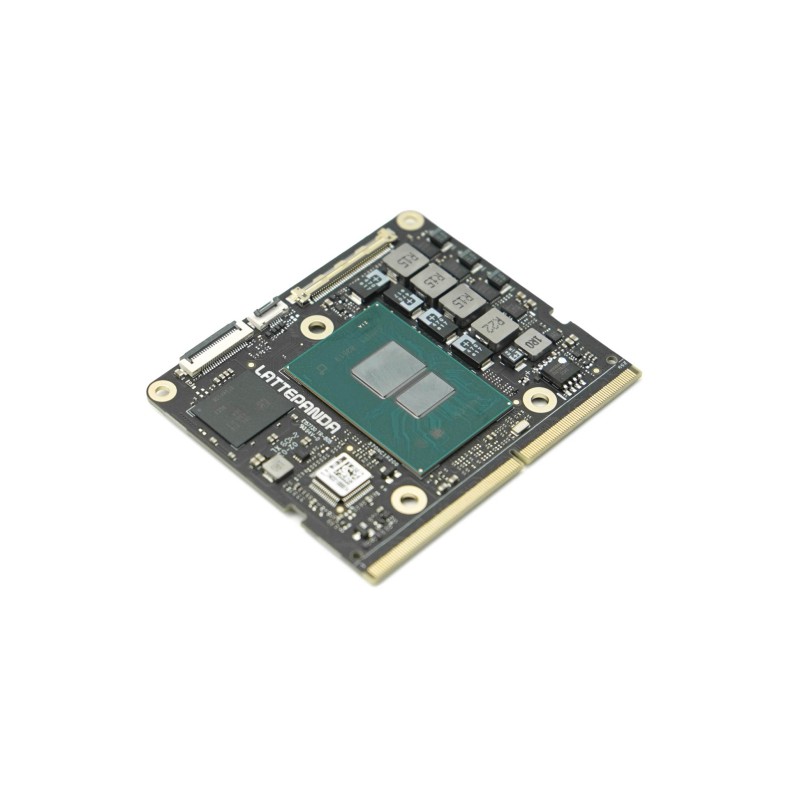

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1204197
zł1,233.69
Tax included

zł1,003.00 tax excl.

A compact computer-on-module compute module with an Intel N100 processor, 8GB of LPDDR5 memory, and 64GB of eMMC storage. The module offers three HDMI/DisplayPort video outputs, multiple USB ports, PCIe 3.0, and SATA 3.0 lanes for flexible integration into industrial and IoT systems. An adjustable TDP from 6W to 35W allows for performance tailored to application needs, and support for Windows 10, Windows 11, and Ubuntu ensures broad software compatibility. Windows 11 IoT Enterprise is pre-activated. DFRobot DFR1146-ENT

4 weeks
On request
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

LattePanda Mu is a compact computer-on-module designed for professional embedded applications and industrial projects. It features an Intel Processor N100 with four cores and clock speeds up to 3.4 GHz, providing stable and efficient performance across a wide range of applications. The module comes with 8 GB LPDDR5 4800MT/s memory with IBECC support, ensuring high reliability in environments requiring strong data integrity. Built-in 64 GB eMMC 5.1 storage allows fast system boot-up and efficient storage of applications and data.


Thanks to its compact size, LattePanda Mu can be easily integrated into space-constrained devices such as AI robots, mobile terminals, industrial equipment, or IoT systems. The module offers a wide range of interfaces, including 3 HDMI/DisplayPort outputs, multiple USB ports, PCIe 3.0 lanes, and SATA 3.0 ports, allowing the design of custom carrier boards according to individual requirements. A configurable TDP ranging from 6 W to 35 W enables optimization between power efficiency and performance – from energy-saving passive cooling to high-performance active cooling setups.

Open-source carrier board design files (KiCAD) significantly speed up hardware development and deployment. LattePanda Mu supports Windows 10, Windows 11, and Ubuntu, providing extensive software flexibility. The module comes with a pre-activated Windows 11 IoT Enterprise license. Its rich interface options and expandability make it a solid foundation for building modern industrial systems, edge computing devices, and smart automation solutions. This versatile module combines x86 architecture with a compact form factor and professional integration capabilities.

Features

  • Processor: Intel Processor N100, 4 cores / 4 threads, up to 3.4GHz
  • RAM: 8 GB LPDDR5 4800MT/s with IBECC support
  • Storage: 64GB eMMC 5.1
  • Configurable TDP: 6W to 35W
  • Multiple OS support: Windows 10, Windows 11, Ubuntu
  • License: Windows 11 IoT Enterprise
  • Video outputs: 3 outputs; maximum resolution 4096 × 2160@60Hz
  • PCIe 3.0: up to 9 lanes
  • SATA 3.0: up to 2 ports
  • USB 3.2 (10Gbps): up to 4 ports
  • USB 2.0 (480Mbps): 8 ports
  • Additional interfaces: I2C, UART, and up to 64 expandable GPIOs
  • Power supply: 9 to 20V
  • Operating environment: 0 to 60°C; 0 to 80% relative humidity
  • Dimensions: 69.6 × 60 mm

Kit contains

  • LattePanda Mu Compute Module (N100 8GB)
  • Windows 11 IoT Enterprise activation key
