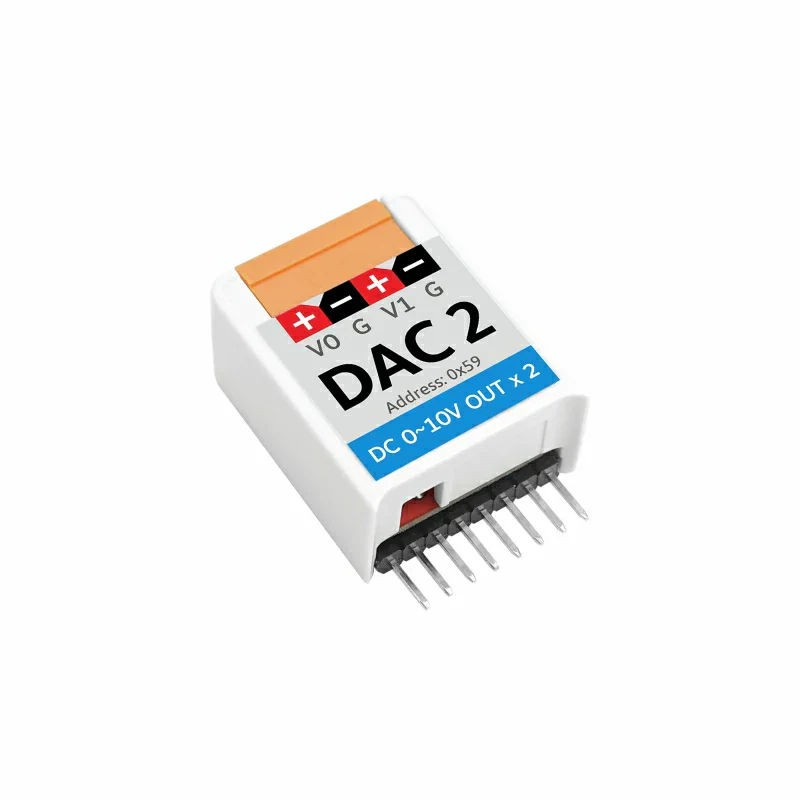

M5StickC DAC 2 Hat – expansion module with GP8413 DAC converter for M5StickC
ID: 1197349
5902186303515
zł41.18
Tax included
zł33.48 tax excl.
DAC 2 Hat module for M5StickC – precise I2C digital-to-analog conversion (0–5V / 0–10V) with short-circuit protection. M5Stack U068-B
Description
The M5Stack DAC2 Hat is an I2C digital-to-analog signal converter module designed to be compatible with the StickC series controllers. Featuring the GP8413 chip, it delivers high precision and accuracy. This chip enables linear conversion of a 15-bit digital value into two independent analog voltages in the 0–5V or 0–10V range. The output voltage error is only 0.2%, with linearity up to 0.01%.
To enhance scalability, the circuit supports a 3-bit hardware address, allowing up to 8 devices to be connected and operated simultaneously. The DAC2 Hat is also equipped with safety features, including output short-circuit protection. In case of a short circuit between the output and ground, the device automatically enters protection mode and disables the output to prevent damage.
The DAC2 Hat is ideal for a wide range of applications, such as general signal conversion, motor speed control, LED dimming, inverters, power supplies, or analog signal isolation in industrial environments.
Features
- DAC chip: GP8413
- Resolution: 15-bit
- I2C address: 0x59 (default)
- Maximum output voltage: 10 V
- Output voltage error: <0.2%
- Output voltage linearity error: 0.01%
- Operating temperature range: 0–40°C
- Product dimensions: 35 × 24 × 13.7 mm
- Product weight: 6.7 g
Kit Includes
- 1× DAC2 Hat
- 1× VH3.96-4P connector
- 1× Sticker
