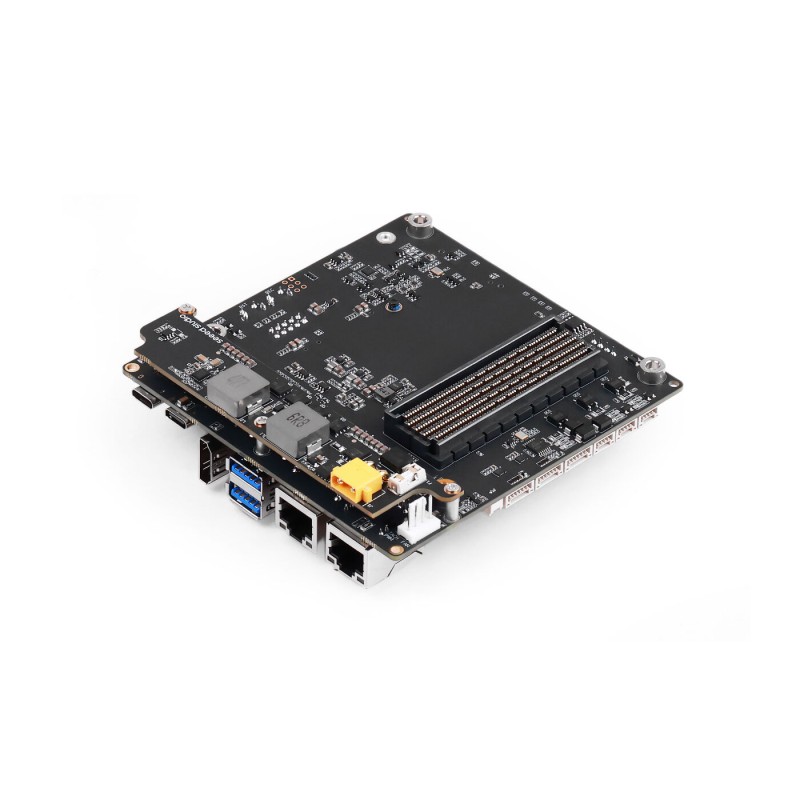

Main view
search
  • Main view
  • Top view
  • Set view
ID: 1204140
zł1,621.25
Tax included

zł1,318.09 tax excl.

A compact baseboard for NVIDIA Jetson AGX Orin 32GB and 64GB modules, offering AI performance up to 275 TOPS. It features extensive interfaces, including USB 3.2, USB-C, 1G/10G Ethernet, CAN-FD, RS-485, I2S, DI/DO, and HDMI 2.1, making it ideal for robot prototyping and AI projects. The board supports 19-48V DC power, 12V PWM fans, and desktop or wall mounting. Seeed Studio 100094378

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

reComputer Mini J501 Carrier Board is a compact baseboard designed for NVIDIA Jetson AGX Orin modules, available in 32GB and 64GB versions. With extensive input/output ports including CAN, USB, Ethernet, RS-485, and I2S, it is ideal for humanoid controllers and rapid robot prototyping. The board enables advanced AI in robotics projects, offering an excellent alternative to the NVIDIA® Jetson AGX Orin™ Developer Kit. The platform delivers performance up to 275 TOPS, making it perfect for developing embedded AI systems in robots. Its compact size makes it suitable for prototyping robots with limited space, especially humanoids.


The wide input voltage range allows power from 48 V battery systems (up to 54 V maximum). Integrated IO ports include USB 3.2 Type-A, USB 3.0 Type-C, USB 2.0 Type-C, 1G and 10G Ethernet, CAN-FD, RS-485, and I2S, providing flexibility in device design. The board also supports 4 DI and 4 DO channels, with DO outputs configurable as UART. Additionally, an HDMI 2.1 port is available for display connection. The cooling system supports 12 V PWM fans, and for user convenience, the board features Reset and Recovery buttons. Its modular design allows desktop or wall mounting, and the compact weight facilitates integration with prototypes.

Features

  • Compatibility: NVIDIA Jetson AGX Orin™ 32GB and 64GB modules
  • Memory interfaces: M.2 Key slot
  • Connectivity: M.2 Key E slot for WiFi/Bluetooth module
  • I/O:
    • 2× USB 3.2 Type-A (10Gbps)
    • 1× USB 3.0 Type-C (Recovery)
    • 1× USB 2.0 Type-C (Debug)
    • 1× RJ45 1G Ethernet
    • 1× RJ45 10G Ethernet
    • 2× CAN (supports CAN-FD)
    • RS-485
    • I2S
    • 4× DI, 4× DO (DO configurable as UART)
    • 1× HDMI 2.1
    • 1× 4-pin fan connector (12V PWM)
    • Reset and Recovery buttons
    • RTC 2-pin
  • Power: XT30 connector, 19–48 V DC
  • Dimensions: 110 × 110 × 38 mm
  • Weight: 90 g

Kit contains

  • reComputer Mini J501 carrier board
  • Power board
  • XT30 to DC power cable
  • USB Type-C to Type-A cable
  • 3× JST GH-1.25 4-pin 100 mm cables
  • 3× JST GH-1.25 6-pin 100 mm cables
  • M2.5×4 screw
  • 3× M2×6 screws
  • 4× M2.5×25 pins
  • 4× M2.5×8 screws
