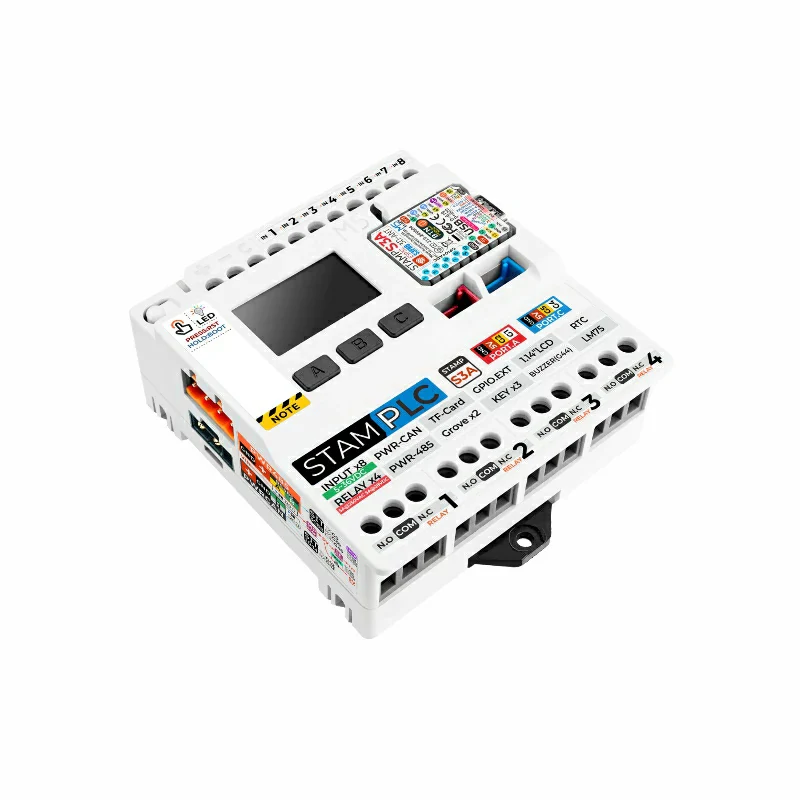

Advanced programmable logic controller (PLC) based on ESP32-S3, designed for industrial, automation and remote monitoring applications. It offers 8 optically isolated digital inputs, 4 relay outputs, PWR-CAN and PWR-485 interfaces and the ability to communicate with the EZDATA cloud. With wide power supply options, display, sensors and easy integration with Grove sensors, it is a comprehensive solution for IoT and automation systems. M5Stack K141

24h
Available
Available quantity: 4

Description

StamPLC is a next-generation programmable logic controller (PLC) designed for industrial applications, automation, and remote monitoring. At the heart of the device is the StampS3A control module, based on the ESP32-S3, which provides high computing performance and efficient wireless connectivity. The controller offers 8 opto-isolated digital inputs and 4 relay digital outputs, supporting both AC and DC loads, allowing safe control of industrial devices. Additionally, thanks to the GPIO.EXT port and two Grove interfaces, integration with sensors and actuators is fast and reliable.


The device is equipped with PWR-CAN and PWR-485 interfaces, enabling communication within industrial field networks such as Modbus and CAN. A 1.14-inch color display and user buttons allow for easy configuration and monitoring, with a built-in buzzer enhancing usability and safety. The integrated microSD card slot allows for local data storage and firmware updates. In harsh environments, the device can be powered from a DC 6–36V source and mounted on a DIN rail. With built-in sensors for temperature (LM75), voltage/current (INA226), and a real-time clock (RTC), the device enables accurate diagnostics and time synchronization. Factory firmware supports automatic data transmission to M5’s EZDATA cloud platform, enabling remote monitoring and control via the Internet. StamPLC is an ideal solution for industrial automation, smart production systems, and IoT projects.

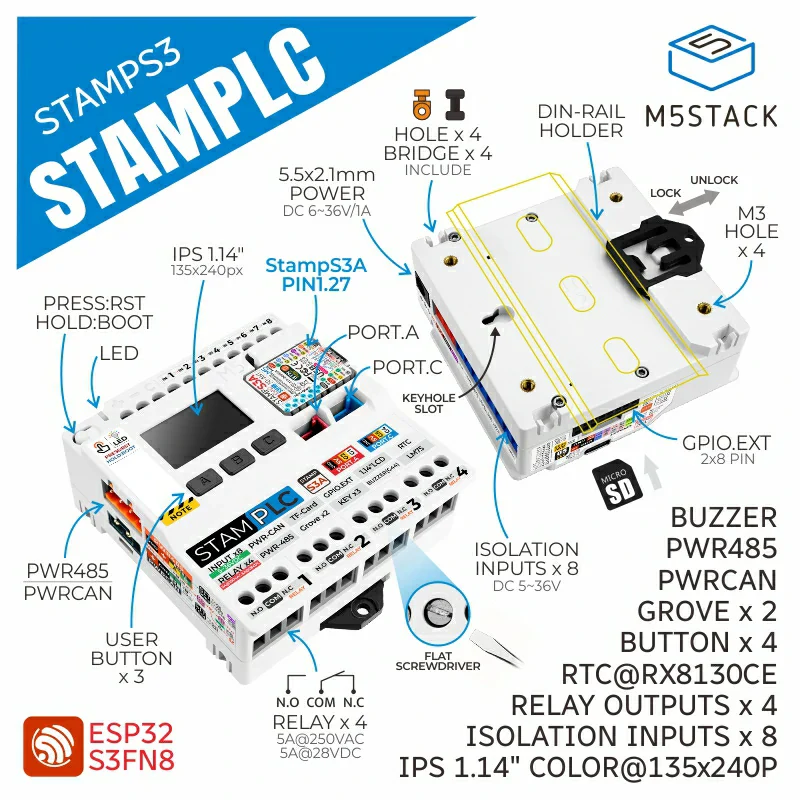

Features

  • Control module: StampS3A with ESP32-S3FN8, 8MB Flash, 2.4GHz Wi-Fi
  • Digital inputs: 8 opto-isolated, voltage range: DC 5–36V
  • Digital outputs: 4 relays (AC: 5A @ 250V, DC: 5A @ 28V)
  • Display: 1.14" color (135×240 px, ST7789v2)
  • Interfaces: GPIO.EXT, 2x Grove, PWR-CAN (XT30), PWR-485 (HT3.96-4P)
  • Sensors: LM75 (temperature), INA226 (voltage/current), RTC RX8130CE
  • Data handling: microSD card slot
  • Buttons: 3 user buttons, RESET/BOOT, buzzer
  • Mounting: DIN rail
  • Development platforms: UIFlow 2.0, Arduino IDE, ESP-IDF
  • Power supply: DC 6 to 36V, DC5521 connector
  • Operating temperature: 0 to 40°C
  • Dimensions: 72 x 80 x 33.4 mm
  • Weight: 139.4 g

Kit contains

  • 1 x StamPLC
  • 4 x Mounting accessories
  • 4 x Screw terminals
1197331

Data sheet

Microcontroller
ESP32-S3
Flash memory
8 MB
Number of I/O
12
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
No
MicroSD slot
Yes
Length
72mm
Width
80 mm
USB connector type
USB type C
