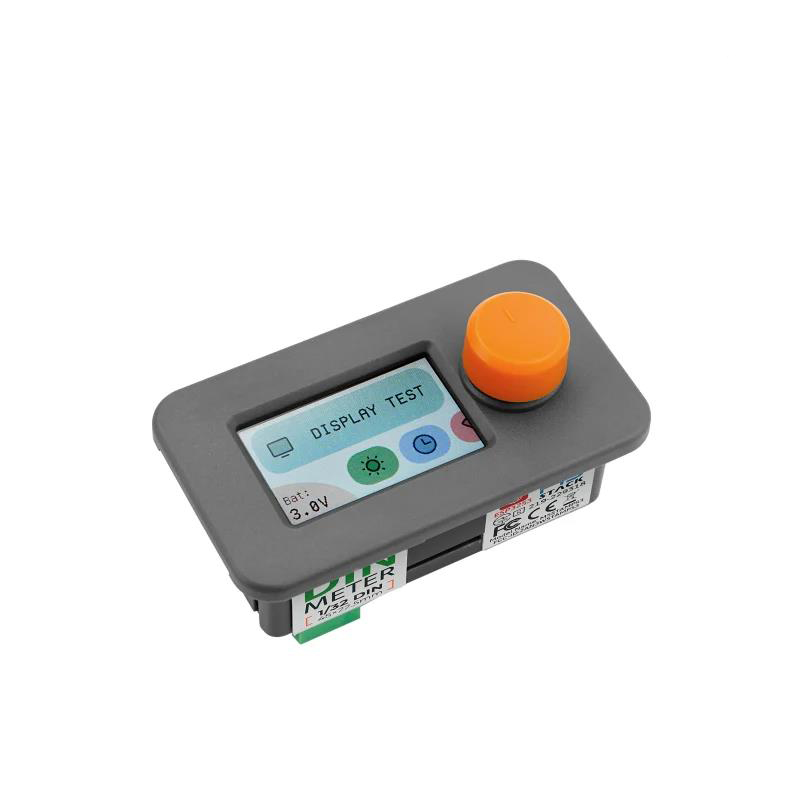

M5Stack Din Meter - development module with M5Stamp S3 and 1.14" display
ID: 1192660
5902186300361
zł132.36
Tax included
zł107.61 tax excl.
Advanced development board with ST7789 based display, rotary encoder and M5Stamp S3 control unit for precise tracking of knob position. The device supports wide input voltage range, can be powered by USB, DC or battery and offers expansion options for I2C and GPIO devices. Ideal for industrial automation, IoT, smart home and educational projects. M5Stack K134
Description
The Din Meter is an advanced development board in the 1/32 DIN standard, equipped with a 1.14-inch ST7789 display and an M5Stamp S3 as the main control unit. Thanks to the built-in rotary encoder, the device allows for precise tracking of the knob's position. Additionally, the board features a built-in RTC chip, a buzzer, and buttons located under the screen, enabling interaction with the device and alert notifications. The device supports a wide input voltage range from 6 to 36V DC and offers dedicated connectors for connecting a lithium-ion battery and charging circuit, ensuring great flexibility in power supply. Furthermore, reserved PORTA and PORTB ports allow for expansion with I2C and GPIO devices. The Din Meter is perfect for applications in parameter measurement, smart home control, IoT projects, wearable devices, access control, industrial automation, and educational projects. The device supports multiple power modes: USB, DC, and battery-powered.
Features
- ST7789v2 display
- M5StampS3 control module
- Built-in rotary encoder
- Wide input voltage range: 6 to 36V
- Reserved PORTA and PORTB ports
- Interface for lithium-ion battery (for charging)
- 1/32 DIN standard (45 × 22.5 mm)
- Programming platforms: Arduino, UIFlow
- Processor: ESP32-S3 @ Xtensa LX7, 8MB FLASH, WIFI, OTG\CDC
- Operating temperature range: 0–40°C
- Product dimensions: 53 × 32 × 30 mm
- Weight: 17.6 g

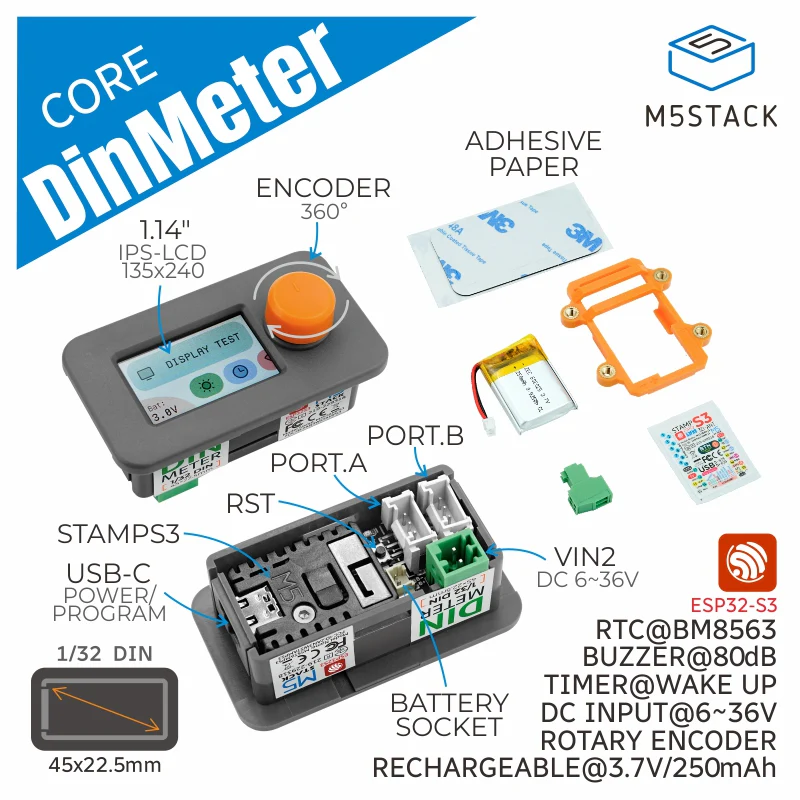

Kit contains
- M5DinMeter
- Self-adhesive tape
- 250mAh battery
- Tag
- DC-JACK input terminal (6-36V)
- Rear mounting bracket
1192660
Data sheet
- Microcontroller
- ESP32-S3
- Flash memory
- 8 MB
- Number of I/O
- 02
- Ethernet
- none
- WiFi/BT module
- Yes
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 53 cm
- Width
- 32 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
