ID: 1205031
zł423.91
Tax included

zł344.64 tax excl.

This multimeter offers high accuracy thanks to True RMS technology and a base DC voltage accuracy of 0.2%. Equipped with additional EMI shielding, it is ideal for high-noise environments, such as drives and industrial installations. It allows for simultaneous voltage and frequency measurements, as well as a wide range of measurements, including current, resistance, and capacitance. Brymen BM2805CSE

24h
Available
Available quantity: 1

Description

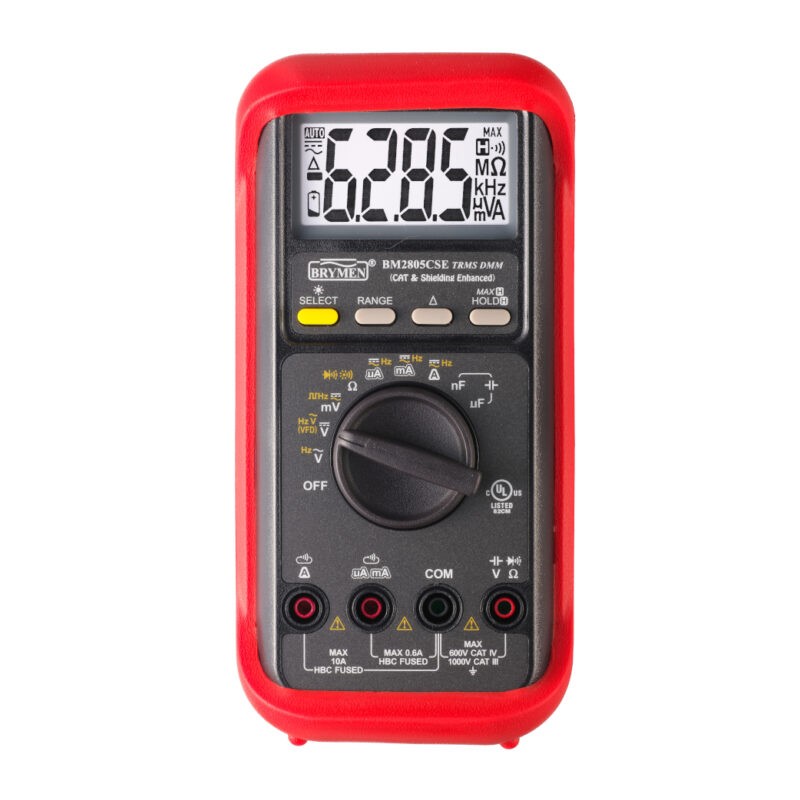

Brymen BM2805CSE is a modern professional-grade digital multimeter designed for operation in demanding industrial and service environments. The device offers True RMS measurement, ensuring high accuracy even for distorted signals. One of the key advantages of this model is additional EMI shielding, which effectively reduces the impact of electromagnetic interference, making the meter ideal for diagnostics of drives and electric vehicles. The multimeter features a clear backlit 6000-count LCD display with large digits, significantly improving user comfort. High base accuracy for DC voltage measurement at 0.2% + 2 digits allows precise measurements across a wide range of applications. An ergonomic rotary switch enables quick function selection, while the robust construction ensures durability and reliability.

The BM2805CSE model offers simultaneous voltage and frequency measurement (V + Hz), which is particularly useful when analyzing systems with inverters (VFD). A wide frequency measurement range covering both electrical and logical signals makes this meter a versatile diagnostic tool. Additionally, the iAPO (intelligent Auto Power OFF) technology extends battery life, resulting in lower operating costs and greater convenience. The device enables measurement of voltage, current, resistance, capacitance, and frequency, as well as diode and continuity testing. Built-in audible and visual indicators improve usability in challenging lighting and acoustic conditions. High safety category CAT III 1000 V and CAT IV 600 V ensures safe operation even in high-energy installations.

Features

  • DC voltage measurement: 60 mV – 1000 V, input impedance 10 MΩ, 20 pF
  • AC voltage measurement: up to 1000 V, accuracy from ± (0.7% + 3 digits) in the 45 Hz – 500 Hz range
  • VFD voltage measurement (with low-pass filter): up to 1000 V
  • DC current measurement: 600 µA – 10 A, accuracy from ± (0.7% + 3 digits)
  • AC current measurement: 600 µA – 10 A, accuracy from ± (1.0% + 3 digits), frequency range 50 Hz – 500 Hz
  • Resistance measurement: 600 Ω – 60 MΩ, accuracy from ± (0.3% + 3 digits)
  • Capacitance measurement: 20 nF – 2000 µF, accuracy from ± (1.5% + 3 digits)
  • Frequency measurement: 5 Hz – 300 kHz, accuracy ± (0.03% + 4 digits)
  • Logical frequency and VFD signal measurement
  • Diode test
  • Continuity test
  • True RMS measurement
  • Display: 3 5/6-digit LCD, 6000 counts, backlight, digit height 26 mm
  • Base DCV accuracy: ± (0.2% + 2 digits)
  • Additional EMI shielding
  • Intelligent auto power off
  • Ergonomic rotary switch
  • Safety: CAT III 1000 V, CAT IV 600 V
  • Surge protection: high impulse resistance
  • Dimensions: 186 × 87 × 35.5 mm
  • Weight: 430 g

Kit contains

  • Brymen BM2805CSE multimeter
  • Test leads
  • User manual
1205031

Data sheet

Upper DC voltage range
200mV/2000mV/20V/200V/1000 V
Upper AC voltage range
600mV/6V/60V/600V/1000V
Upper DC current range
200μA/2mA/20mA/200mA/10A
Upper AC current range
600μA/6000μA/60mA/600mA/10A
Upper resistance range
60 MΩ
Upper capacitance range
2nF/20nF/200nF/2μF/20μF/200μF/2mF
Frequency range
10 Hz - 300 kHz
Temperature measurement
No
Range adjustment
Automatic
True RMS
Yes
Hold function
Yes
Continuity tester
Yes
Diode tester
Yes
Transistor hFE measurement
No
Buzzer
Yes
Battery indicator
Yes
Automatic shut-off
Yes
Display backlight
Yes
Battery type
LR03/AAA
Length
186 mm
Width
87 mm
Thickness
35mm
Weight
428 g
