  • Open multimeter with probes
ID: 1205020
zł287.77
Tax included

zł233.96 tax excl.

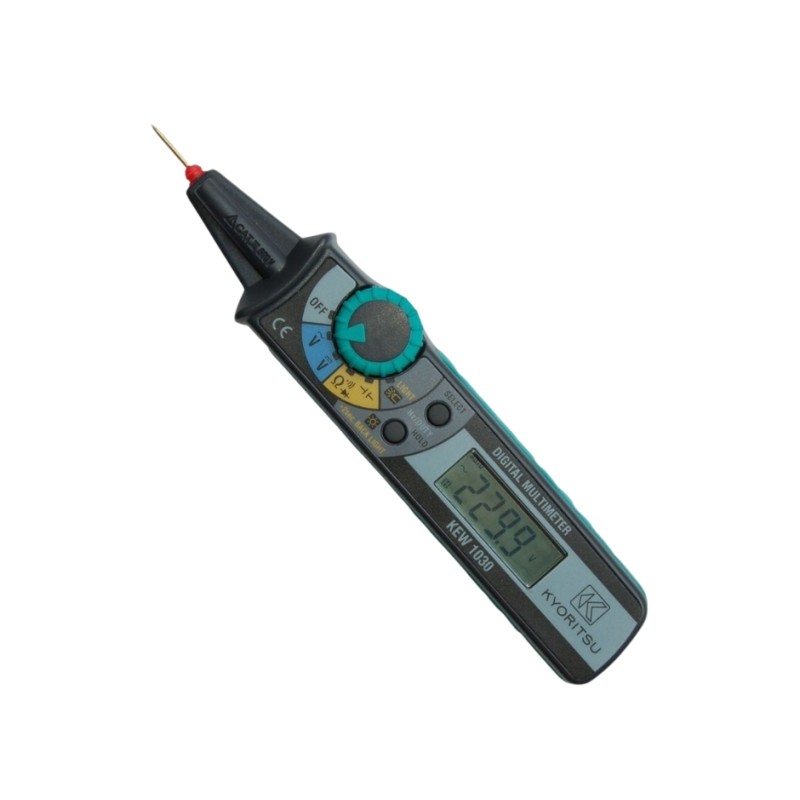

Compact digital multimeter with auto-ranging for AC/DC voltage, resistance, capacitance and frequency measurement. Kyoritsu KEW1030

24h
Available
Available quantity: 2

Description

Compact digital multimeter in a pen-style form designed for measurement of DC and AC voltage, resistance, capacitance, frequency and duty cycle. The construction supports convenient operation in field conditions and confined spaces, which suits electrical installations, device servicing and low-voltage circuit diagnostics.

Automatic range selection simplifies operation and reduces the risk of measurement errors. Continuity test with acoustic signal enables quick verification of connections, while diode test supports checking semiconductor components. Built-in flashlight improves visibility in low-light environments, and backlit LCD enhances readability of measurement results.

Features

  • DC voltage measurement: 400 mV - 600 V
  • AC voltage measurement: 4 V - 600 V
  • Resistance: 400 Ω - 40 MΩ
  • Capacitance: 50 nF - 100 µF
  • Frequency: 5 Hz - 200 kHz
  • Duty cycle: 0.1 - 99.9%
  • Continuity test with buzzer: ≤ 120 Ω
  • Diode test: 0.3 - 1.5 V
  • DC voltage accuracy: ±0.8% - ±1.0%
  • AC voltage accuracy: ±1.3% - ±1.6%
  • Auto-ranging
  • Data Hold function
  • Backlit LCD display
  • Built-in flashlight
  • Low battery indication: 2.4 V ± 0.2 V
  • Overload protection: 600 V
  • Measurement category: CAT III 600 V
  • Power supply: 2 x LR44 1.5 V
  • Dimensions: 190 x 39 x 31 mm
  • Weight: 100 g

Kit includes

  • Multimeter
  • Carrying case
  • 2 x LR44 batteries
1205020

Data sheet

Upper DC voltage range
400 mV/4 V/40 V/400 V/600 V
Upper AC voltage range
4 V/40 V/400 V/600 V
Upper DC current range
No
Upper AC current range
No
Upper resistance range
400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
Upper capacitance range
2nF/20nF/2μF/100μF
Frequency range
5 Hz - 200 kHz
Temperature measurement
No
Range adjustment
Automatic
True RMS
No
Hold function
Yes
Continuity tester
Yes
Diode tester
Yes
Transistor hFE measurement
No
Buzzer
Yes
Battery indicator
Yes
Automatic shut-off
Yes
Display backlight
Yes
Battery type
LR44
Length
190 mm
Width
39 mm
Thickness
31 mm
Weight
100 g
