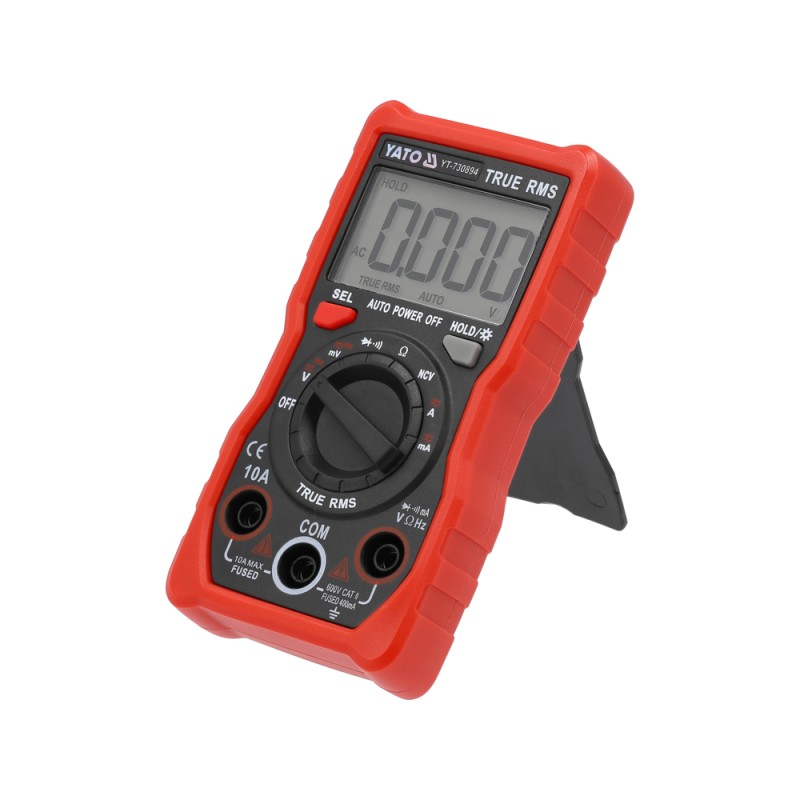

Digital True RMS Multimeter YT-730894
ID: 1202870
5906083105791
zł44.61
Tax included
zł36.27 tax excl.
Digital universal multimeter with True RMS measurement and 4000-count LCD display, designed for AC/DC voltage and current measurement, resistance measurement, frequency measurement, and temperature measurement in service and installation applications. Yato YT-730894
Description
The YT-730894 is a digital universal multimeter designed for advanced electrical measurements in electrical installations, technical service, and workshop environments. The device supports True RMS technology, enabling accurate measurement of effective voltage and current values, including non-sinusoidal waveforms. The multimeter features automatic range selection and a clear 4000-count LCD display for precise and readable measurements.
Multimeter allows measurement of AC and DC voltage, AC and DC current, resistance, and frequency, as well as diode testing and audible continuity testing. Additional functions include temperature measurement using an external probe and non-contact voltage detection (NCV). The YT-730894 is suitable for electrical diagnostics, installation work, servicing tasks, and semi-professional applications.
Features
- Device type: Digital multimeter
- Measurement technology: True RMS
- Display: LCD, 4000 counts
- AC voltage measurement range: up to 600 V AC
- DC voltage measurement range: up to 600 V DC
- AC current measurement range: up to 10 A AC
- DC current measurement range: up to 10 A DC
- Resistance measurement range: up to 40 MΩ
- Capacitance measurement: No
- Frequency measurement: Yes
- Temperature measurement: Yes
- Diode test: Yes
- Continuity tester: Yes (audible signal)
- NCV voltage detection: Yes
- Range selection: Automatic
- Hold function: Yes
- Display backlight: Yes
- Auto power off: Yes
- Power supply: Batteries
- Application: Electrical and service measurements
- Brand: Yato
- Manufacturer code: YT-730894
Kit includes
- 1x Digital True RMS multimeter YT-730894
- 1x Set of test leads
- 1x Temperature probe
1202870
Data sheet
- Upper DC voltage range
- 400 mV/4 V/40 V/400 V/600 V
- Upper AC voltage range
- 4 V/40 V/400 V/600 V
- Upper DC current range
- 200μA/2mA/20mA/200mA/10A
- Upper AC current range
- 600μA/6000μA/60mA/600mA/10A
- Upper resistance range
- 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
- Upper capacitance range
- No
- Frequency range
- 0 Hz - 3 MHz
- Temperature measurement
- Yes
- Range adjustment
- Automatic
- True RMS
- Yes
- Hold function
- Yes
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- No
- Buzzer
- Yes
- Battery indicator
- Yes
- Automatic shut-off
- Yes
- Display backlight
- Yes
- Battery type
- 6F22
- Length
- 120 mm
- Width
- 60 mm
- Thickness
- 30 mm
- Weight
- 115 g
Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
