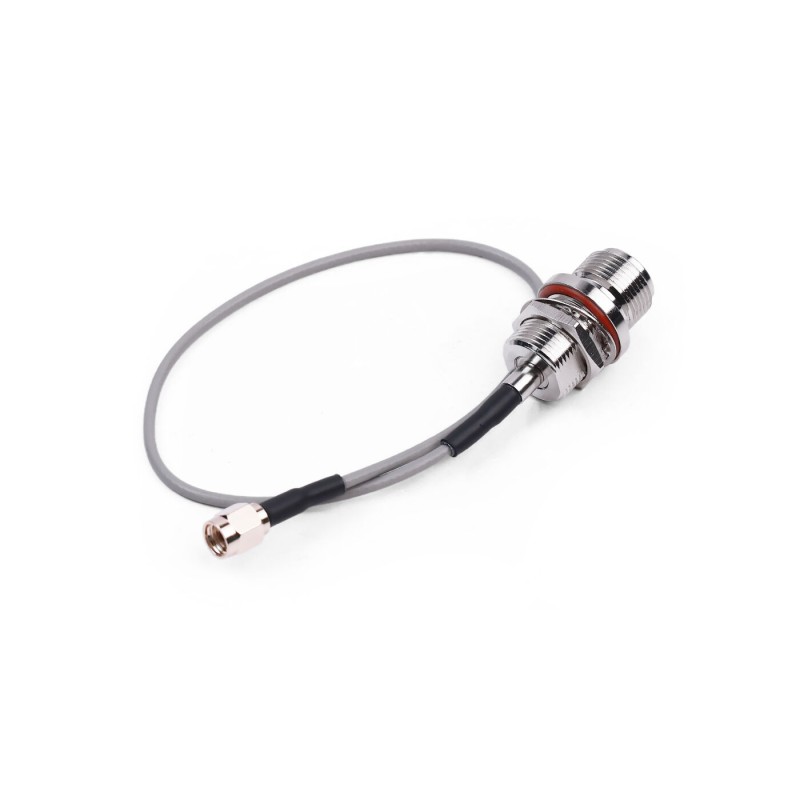

RF Cable RP-SMA Male to N-Type SMA Female - RP-SMA male to N-Type SMA female 300mm - Seeed Studio 100007236
ID: 1205297
zł18.56
Tax included
zł15.09 tax excl.
High-quality coaxial cable designed for signal transmission up to 6 GHz with 50 Ω impedance. Silver-plated copper and a PTFE dielectric ensure low attenuation and stable performance, while 60 dB+ shielding protects against interference. The cable is terminated with RP-SMA male and N-Type female (bulkhead) connectors, allowing for easy installation in enclosures and integration with RF devices. Seeed Studio 100007236
Description
The 300 mm RF cable is a high-quality coaxial cable designed for radio applications requiring stable and low-loss signal transmission. Manufactured to the RG316 standard, it features silver-plated copper conductors and a PTFE dielectric, ensuring excellent electrical performance and minimal signal attenuation across a wide frequency range. With an impedance of 50 Ω and support for frequencies up to 6 GHz, the cable is ideal for RF systems, LoRa, Wi-Fi, and other wireless applications.
The cable is equipped with RP-SMA male and N-Type female (bulkhead) connectors, allowing for easy and secure connection to devices as well as installation in enclosures. The bulkhead design enables stable mounting through a panel or housing, improving installation reliability. The cable is compatible with devices such as SenseCAP M1, SenseCAP M2, and Meshtastic systems. The FEP jacket provides high resistance to environmental factors, making the cable suitable for both indoor and outdoor use. Additionally, shielding effectiveness exceeding 60 dB protects the signal from electromagnetic interference. The cable construction also ensures high mechanical durability and resistance to repeated connections.
Features

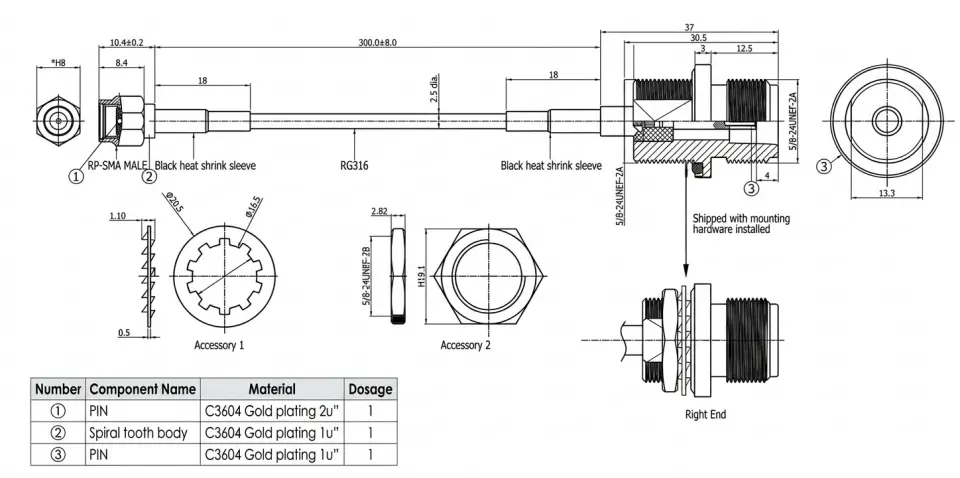

- Cable length: 300.0 ± 8.0 mm
- Cable type: RG316
- Impedance: 50 ± 2 Ω
- Maximum operating frequency: 0 ~ 6 GHz
- Inner conductor: silver-plated copper, Φ0.52 ± 0.01 mm
- Dielectric: PTFE, Φ1.53 ± 0.05 mm
- Outer conductor: silver-plated copper braid, Φ1.95 ± 0.05 mm
- Jacket: FEP (gray), Φ2.50 ± 0.05 mm
- Capacitance: 106 pF/m
- Connectors: RP-SMA male to N-Type female (bulkhead)
- Connector frequency range: DC – 6 GHz
- Nominal connector impedance: 50 Ω
- Maximum connector operating voltage: 335 V
- Connector test voltage: 750 V
- VSWR: max. 1.4
- Connector mechanical strength: min. 15 IN-LBS
- Connector lifespan: 500 cycles
- Cable operating temperature: -65°C to +150°C
- Connector operating temperature: -55°C to +125°C
- Minimum bending radius (static): 15 mm
- Shielding effectiveness: > 60 dB (0–1 GHz)
- Attenuation
- 0.5 GHz: 0.2676 ± 0.10 dB/m
- 0.6 GHz: 0.3163 ± 0.10 dB/m
- 0.8 GHz: 0.3310 ± 0.10 dB/m
- 1 GHz: 0.4043 ± 0.10 dB/m
- 2 GHz: 0.6956 ± 0.15 dB/m
- 3 GHz: 0.6835 ± 0.15 dB/m
- 4 GHz: 0.9624 ± 0.18 dB/m
- 5 GHz: 0.9989 ± 0.20 dB/m
- 6 GHz: 1.0138 ± 0.20 dB/m
- Compliance: RoHS & REACH
1205297
Data sheet
- Cable length (cm)
- 30 cm
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
