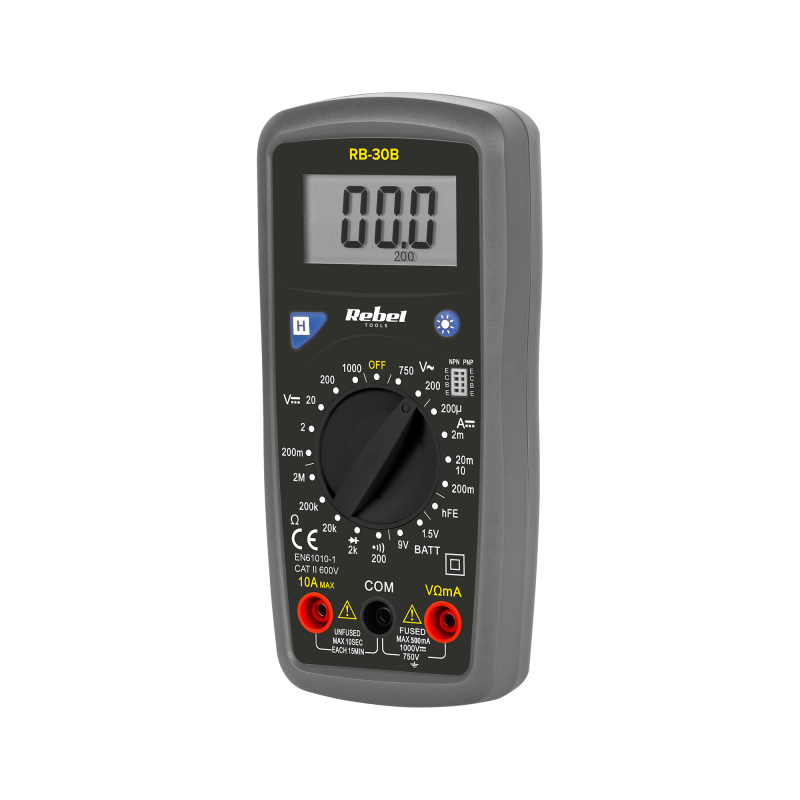

REBEL RB-30B – Digital universal multimeter, DC/AC, diode and transistor test, backlit display
ID: 1200263
5901890058148
zł36.08
Tax included
zł29.33 tax excl.
Digital multimeter REBEL RB-30B for measuring voltage, current, and resistance, with diode, transistor, and battery test functions. Equipped with a backlit display, “data hold” function, and foldable stand. Designed for diagnosing electrical installations in home and service environments.
Description
Digital universal multimeter REBEL RB-30B designed for precise measurement of electrical parameters in home, workshop, and service applications. Enables measurement of DC voltage up to 1000 V, AC voltage up to 750 V, DC current up to 10 A, and resistance up to 2 MΩ. Equipped with functions for testing diodes, batteries (1.5 V and 9 V), circuit continuity, and hFE transistors. Measurement values are selected manually, and data are displayed on a backlit LCD with a maximum reading of 1999. The “data hold” function allows freezing of the displayed value, while the low battery indicator informs the user when replacement is required.
Properties
- DC voltage measurement ranges: 200 mV / 2 V / 20 V / 200 V / 1000 V ±(1%+5)
- AC voltage measurement ranges: 200 V / 750 V ±(2%+10)
- DC current measurement ranges: 200 µA / 2 mA / 20 mA / 200 mA / 10 A ±(2%+10)
- Resistance measurement ranges: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ ±(1%+4)
- Additional functions: 1.5 V and 9 V battery test, diode test, hFE transistor test, circuit continuity check
- Backlit LCD display (45 × 21 mm)
- Data hold function
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Manual range selection
- Automatic polarity
- Power supply: 2 × AAA batteries
- Operating temperature: 0…40°C at <80% humidity
- Storage temperature: -10…50°C at <85% humidity
- Foldable stand
- Low battery indicator
- Dimensions: 160 × 76 × 32 mm
- Weight: 150 g
Set includes
- REBEL RB-30B multimeter
- Test leads
- User manual
1200263
Data sheet
- Upper DC voltage range
- 200mV/2000mV/20V/200V/1000 V
- Upper AC voltage range
- 200V/750V
- Upper DC current range
- 200μA/2mA/20mA/200mA/10A
- Upper AC current range
- No
- Upper resistance range
- 200Ω/2000Ω/20kΩ/200kΩ/2MΩ
- Upper capacitance range
- No
- Frequency range
- No
- Temperature measurement
- No
- Range adjustment
- Manually
- True RMS
- No
- Hold function
- Yes
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- Yes
- Buzzer
- No
- Battery indicator
- Yes
- Automatic shut-off
- No
- Display backlight
- Yes
- Battery type
- LR03/AAA
- Length
- 160 mm
- Width
- 76 mm
- Thickness
- 32 mm
- Weight
- 150 g
Manufacturer Lechpol Electronics Leszek Spółka komandytowa Garwolińska 1 08-400 Miętne Poland sprzedaz@lechpol.pl
Responsible person Lechpol Electronics Leszek Spółka komandytowa Garwolińska 1 08-400 Miętne Poland sprzedaz@lechpol.pl
