ID: 1202454
5902186334335
zł336.23
Tax included

zł273.36 tax excl.

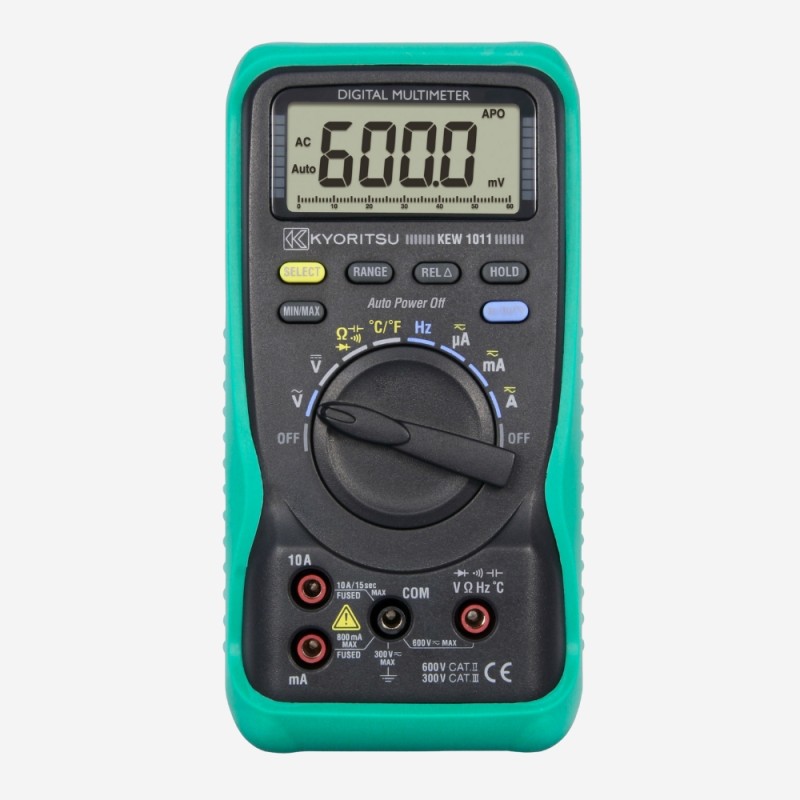

Digital multimeter with 6000-count LCD display and analog bar graph, designed for measuring AC/DC voltage up to 600 V, current up to 10 A, resistance, capacitance, frequency, duty cycle, and temperature using a K-type probe. Measurement categories CAT III 300 V / CAT II 600 V. Kyoritsu KEW1011

24h
Available
Available quantity: 4

Description

The KEW1011 digital multimeter is intended for measurements in low-voltage installations, service work, and diagnostics of electrical and electronic circuits. The 6000-count LCD display with analog bar graph allows simultaneous observation of precise numerical readings and dynamic signal changes.

The instrument measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, resistance up to 60 MΩ, capacitance up to 4000 µF, frequency up to 10 MHz, and duty cycle up to 99.9%. Temperature measurement from -50°C to 700°C is performed using a K-type thermocouple probe. Diode and continuity testing with audible indication enable quick verification of semiconductor components and wiring connections.

The multimeter features automatic and manual ranging, relative measurement (REL), data hold (HOLD), and MAX/MIN recording functions. Overload protection up to 600 V AC/DC and fused current ranges enhance operational safety. The device complies with measurement categories CAT III 300 V and CAT II 600 V.

Features

  • Display: 6000-count LCD with analog bar graph
  • DC voltage: 600.0 mV – 600 V
  • AC voltage: 6.000 V – 600 V
  • DC current: 600.0 µA – 10.00 A
  • AC current: 600.0 µA – 10.00 A
  • Resistance: 600.0 Ω – 60.00 MΩ
  • Capacitance: 40.00 nF – 4000 µF
  • Frequency: 10 Hz – 10 MHz
  • Duty cycle: 0.1 – 99.9%
  • Temperature: -50°C – 700°C (K-type probe)
  • Ranging: Automatic and manual
  • Functions: REL, HOLD, MAX/MIN, diode test, continuity test with buzzer
  • Auto power off (APO): Yes
  • Measurement categories: CAT III 300 V, CAT II 600 V
  • Protection: 0.8 A / 600 V fuse, 10 A / 600 V fuse
  • Power supply: 2 × 1.5 V AA batteries
  • Dimensions: 161 × 82 × 50 mm
  • Weight: approx. 280 g

Kit includes

  • Test leads
  • K-type temperature probe
  • Protective holster
  • Batteries
1202454

Data sheet

Upper DC voltage range
400 mV/4 V/40 V/400 V/600 V
Upper AC voltage range
4 V/40 V/400 V/600 V
Upper DC current range
200μA/2mA/20mA/200mA/10A
Upper AC current range
600μA/6000μA/60mA/600mA/10A
Upper resistance range
60 MΩ
Upper capacitance range
400 µF
Frequency range
10Hz-10MHz
Temperature measurement
Yes
Range adjustment
Automatic
True RMS
No
Hold function
Yes
Continuity tester
Yes
Diode tester
Yes
Transistor hFE measurement
No
Buzzer
Yes
Battery indicator
Yes
Automatic shut-off
Yes
Display backlight
No
Battery type
AA
Length
161 mm
Width
82 mm
Thickness
50 mm
Weight
280 g
