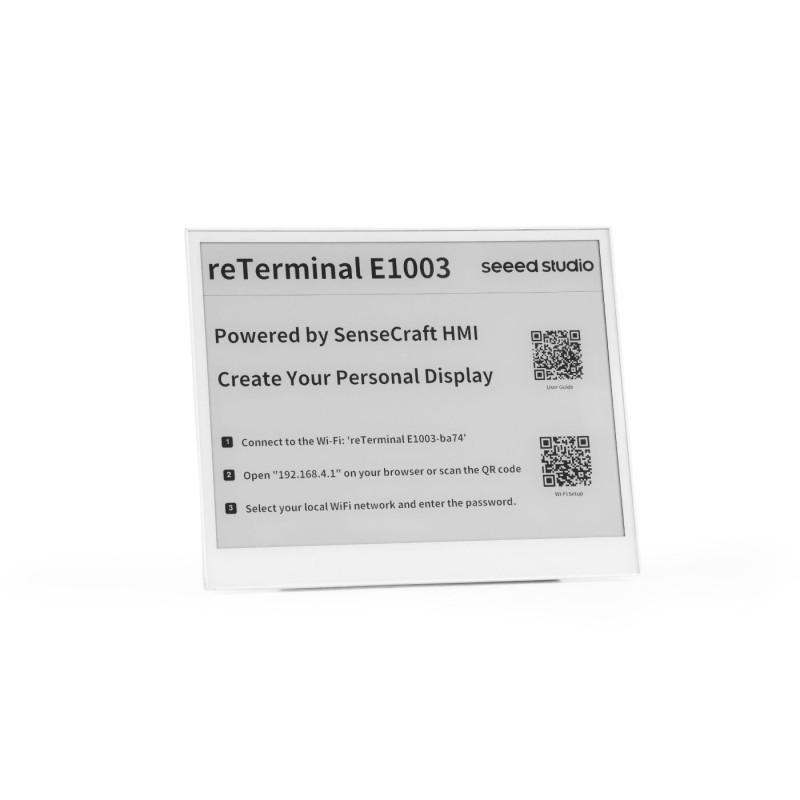

reTerminal E1003 - 10.3" 1404x1872 monochrome ePaper display - Seeed Studio 100090602

Description

reTerminal E1003 is an advanced 10.3-inch ePaper touchscreen display, designed for modern data visualization systems and user interfaces in IoT and smart home projects. The device offers a high resolution of 1404×1872 pixels and supports 16 levels of grayscale, ensuring a clear and detailed image ideal for dashboards, control panels, and information displays. Thanks to ePaper technology, the screen features extremely low power consumption, enabling long-term operation without frequent charging. The device is powered by an ESP32-S3 microcontroller with 8 MB PSRAM, providing sufficient performance for handling graphical interfaces and wireless communication. Built-in Wi-Fi 2.4 GHz and Bluetooth 5.0 enable easy integration with IoT systems and remote device management. The platform supports SenseCraft HMI, a no-code environment for designing user interfaces.

One of the key advantages of the device is the fast screen refresh time of approximately 3 seconds, making it significantly more responsive than typical ePaper displays. Built-in touch support enables interactive operation – users can easily switch views, control devices, or browse data. This makes reTerminal E1003 suitable not only as a passive display but also as an active control panel. The device is equipped with a 3000 mAh battery, allowing operation for up to 6 months on a single charge under typical usage conditions. Power is supplied via USB Type-C, ensuring convenience and compatibility with modern power sources. Additional features such as temperature and humidity sensors, a buzzer, and support for MicroSD cards further enhance functionality.

Thanks to its open architecture and support for Arduino and PlatformIO, reTerminal E1003 is an ideal solution for both developers and users looking for a ready-to-deploy platform. It is well-suited for applications such as smart home panels, office displays, information systems, and educational projects, offering flexibility, energy efficiency, and high image quality.

Features

• Processor: ESP32-S3 with 8 MB PSRAM
• Flash memory: 32 MB
• Memory card support: MicroSD (up to 32GB, FAT32)
• Display: 10.3" monochrome ePaper
• Grayscale: 16 levels
• Resolution: 1404 × 1872 pixels
• Wireless connectivity: Wi-Fi 2.4GHz (802.11 b/g/n), Bluetooth 5.0
• Sensors: temperature, humidity
• Microphone slot
• Buzzer
• Battery: 3000 mAh
• Power supply: USB-C 5V/1A
• Supported software: SenseCraft HMI (default)
• Development environments: Arduino, PlatformIO
• Operating temperature: 0–40°C
• Dimensions: 224 × 187 × 18.6 mm

Kit contains

• reTerminal E1003 ePaper Display
• USB Type-C cable
• 3D-printed stand
• Screwdriver
• Screw
