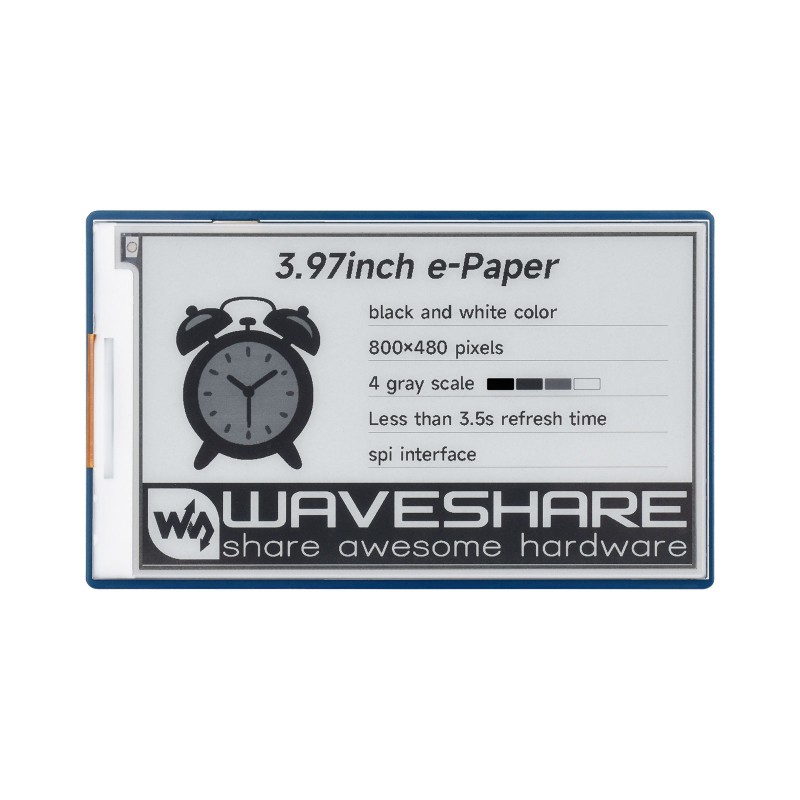

Waveshare 31063 e-paper display with a 3.97″ diagonal and 800 × 480 pixel resolution, operating in black and white with 4 gray levels, equipped with a Raspberry Pi HAT+ compatible driver board and SPI interface. Waveshare 3.97inch e-Paper HAT+

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 31063 includes a 3.97″ e-paper display with an integrated HAT+ driver board, designed for use with platforms such as Raspberry Pi, Jetson Nano, and microcontrollers using the SPI interface. The electrophoretic display technology enables image rendering using ambient light without backlight, reducing power consumption.

The display retains the last shown content without power, while energy is required only during refresh operations. Resolution of 800 × 480 pixels and 4 gray levels allow clear presentation of text and graphics in applications requiring good readability. A viewing angle exceeding 170° enables comfortable observation from various positions without contrast degradation.

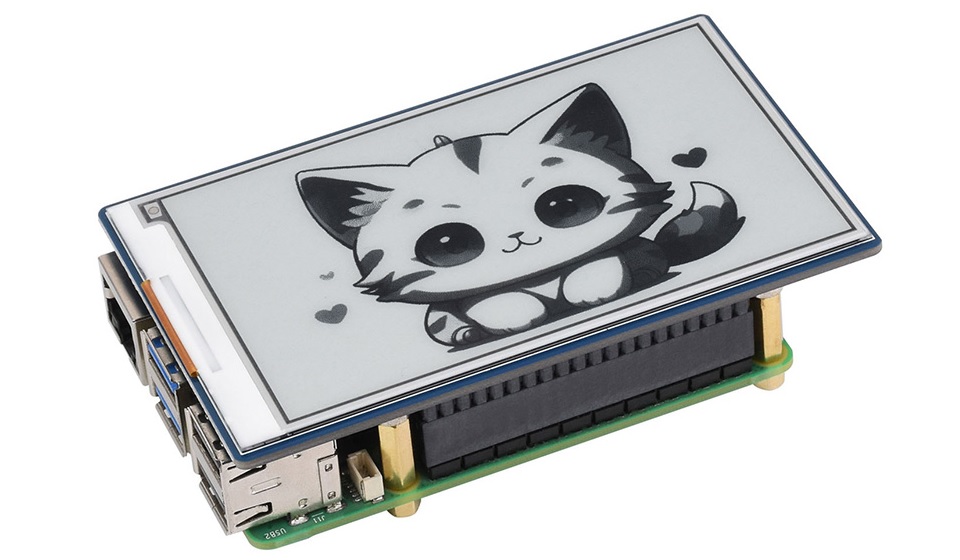

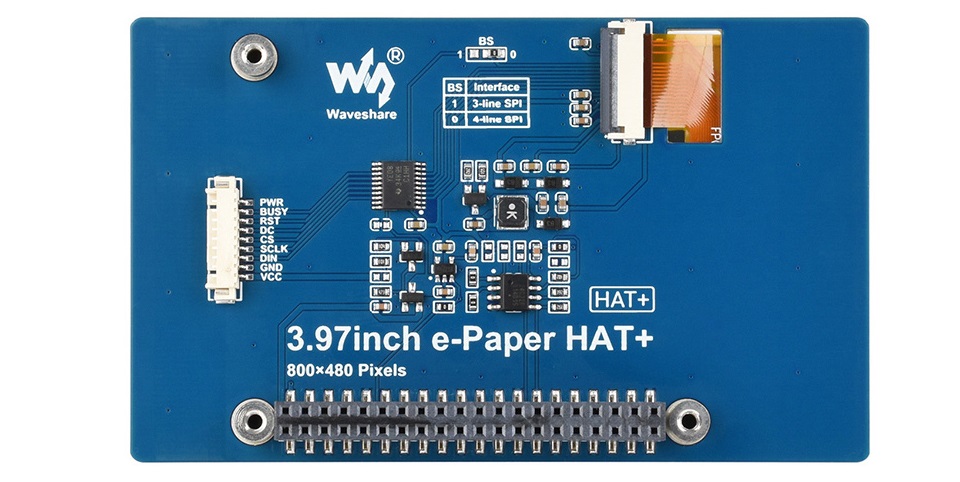

                                                       Integrated SPI control interface                                                             Mounting on Raspberry Pi


  1. PWR – power control (on/off)
  2. BUSY – busy status output pin
  3. RST – external reset, active low
  4. DC – data/command selection (high: data, low: command)
  5. CS – SPI chip select, active low
  6. SCLK – SPI clock line
  7. DIN – SPI data input (MOSI)
  8. GND – ground
  9. VCC – power supply (3.3 V / 5 V input)

The integrated driver board compliant with the Raspberry Pi HAT+ standard features a 40-pin GPIO header for direct connection to Raspberry Pi boards. The SPI interface (3-wire and 4-wire) supports communication with various platforms including Arduino, STM32, and ESP32. An onboard voltage level translator allows operation with both 3.3 V and 5 V systems.

Applications include price tags, warehouse labels, information panels, IoT systems, and measurement devices where low power consumption and readability in ambient light are required.

Features

  • Display size: 3.97″
  • Resolution: 800 × 480 px
  • Display color: black/white
  • Gray scale: 4 levels
  • Viewing angle: >170°
  • Display technology: e-paper (electrophoretic)
  • Communication interface: SPI (3-wire, 4-wire)
  • Full refresh time: approx. 3.5 s
  • Fast refresh time: approx. 2.8 s
  • Partial refresh time: approx. 0.6 s
  • Power supply: 3.3 V / 5 V (with driver board)
  • Refresh power consumption: <40 mW
  • Standby current: <0.01 µA
  • Active area size: 86.40 × 51.84 mm

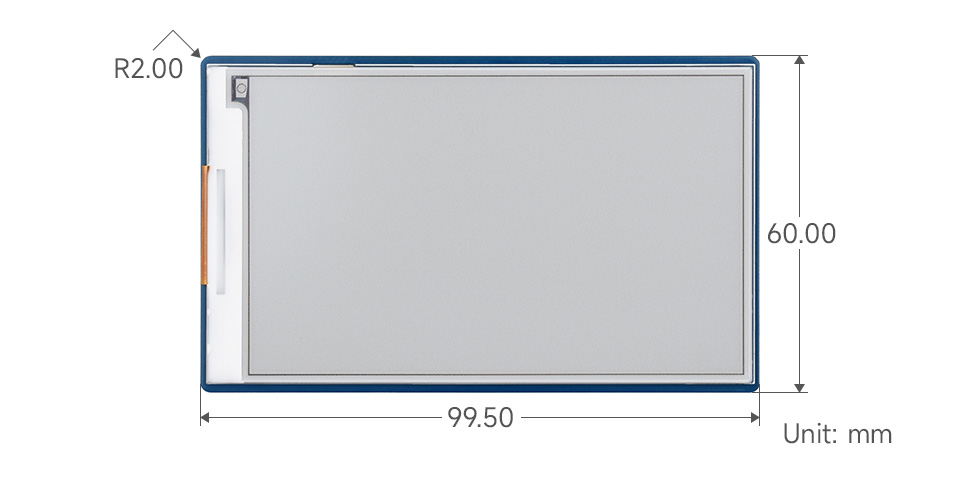

  • Module dimensions (with board): 99.50 × 60.00 mm
  • Connector: 40-pin GPIO (Raspberry Pi HAT+)
  • Compatibility: Raspberry Pi, Jetson Nano, Arduino, STM32, ESP32
  • Voltage level translator: yes (3.3 V / 5 V)
  • Manufacturer: Waveshare
  • Manufacturer code: 31063

Kit includes

  • 3.97″ e-paper HAT+ display - 1 pc
  • MX1.25 9PIN cable - 1 pc
  • Mounting screws set - 1 set
1203950

Data sheet

Screen type
E-Ink/Epaper
Diagonal (inch)
3.97
Resolution
800 x 480 px
Interface
SPI
Touch
No
