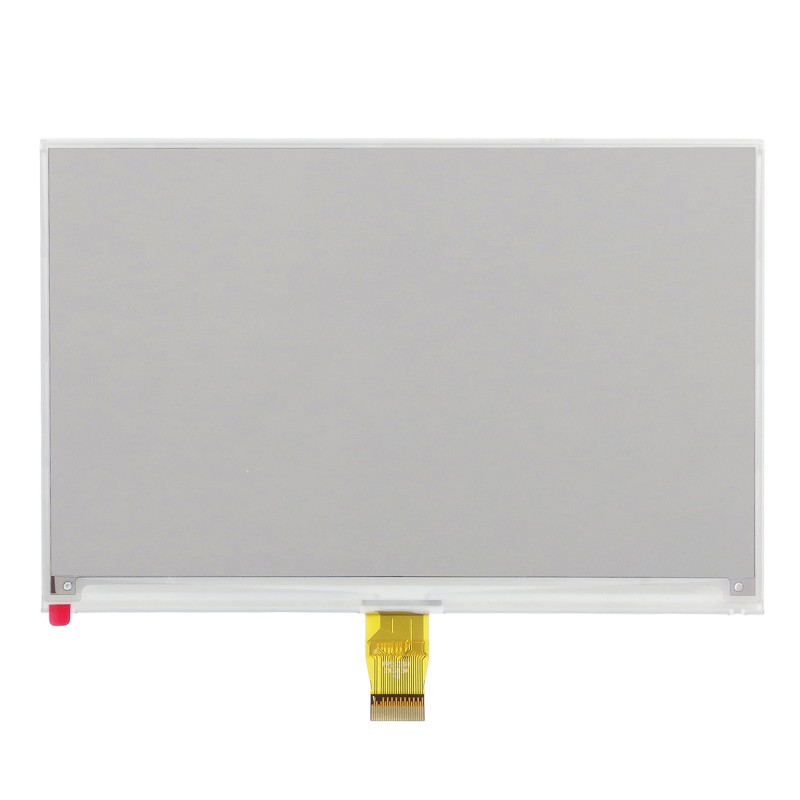

7.5" 800x480 Tri-Color eInk - 3-color ePaper display 7.5" 800x480
ID: 1202596
5902186334038
zł313.56
Tax included
zł254.93 tax excl.
The 7.5-inch eInk/ePaper display features 800x480 pixel resolution for excellent readability, even in bright sunlight. It supports three colors: black, white, and red, allowing you to clearly highlight key information. The image persists without power, making the display ideal for battery-powered applications. Adafruit 6415
Description
7.5-inch eInk/ePaper display is an energy-efficient solution designed for electronic projects that require excellent readability and minimal power consumption. Electronic paper technology ensures that the image remains visible even after the power is completely disconnected. The display offers a high resolution of 800 × 480 pixels, allowing clear presentation of graphics, text, and icons. Thanks to its high contrast, the screen is perfectly readable in full daylight without the need for backlighting. This model supports three colors: black, white, and red, enabling important information and interface elements to be highlighted.
The display closely mimics the appearance of traditional paper, making it ideal for information boards, labels, IoT systems, clocks, status panels, and data readers. This is a version without onboard driving electronics, intended for users who want to select their own controller and software. Proper operation requires connection to a board with a 24-pin FPC connector compatible with ePaper displays. The integrated UC8179 controller is supported by popular Arduino and CircuitPython libraries, which greatly simplifies integration. The display is well suited for both hobbyist and semi-professional projects. Low power consumption and a stable, static image make it an ideal choice for battery-powered applications and long-term installations.
Features
- Display type: eInk/ePaper Tri-Color (black, white, red)
- Screen size: 7.5 inches
- Resolution: 800 × 480 pixels
- Technology: electronic paper, image retained without power
- High contrast and excellent readability in daylight
- No backlight, very low power consumption
- Controller: UC8179
- Connector: 24-pin FPC (ePaper standard)
- Background color: white (paper-like)
- Compatibility with Arduino and CircuitPython (using a suitable controller)
- Dimensions: 170.2 × 111.2 × 1.25 mm
1202596
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,5
- Resolution
- 800 x 480 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Module with E-Ink (e-Paper) display with a diagonal of 2.13" and a resolution of 250x122 px. Designed for minicomputers Raspberry Pi. Adafruit 4687
zł99.45
24h
Available quantity: 2
Available
The ePaper display module has a diagonal of 2.13" and a resolution of 250x122 pixels. It uses the SSD1680 controller and communicates via an SPI interface. Adafruit 4947
zł121.44
24h
Available quantity: 4
Available
Other products in the same category (16)
Module with a black and white e-Paper display with a diagonal of 2.66" and a resolution of 296x152 px. Communication via the SPI interface. Waveshare Pico-ePaper-2.66
zł71.99
24h
Available quantity: 2
Available

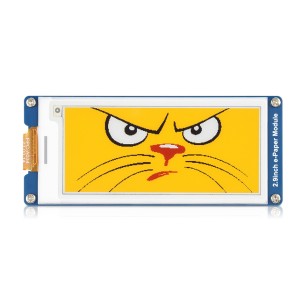

2.9" e-Paper display with a resolution of 296 x 128 px, supporting red, yellow, black, and white colors, featuring an SPI interface and very low power consumption. Includes a driver board. Waveshare 2.9inch e-Paper Module (G)
