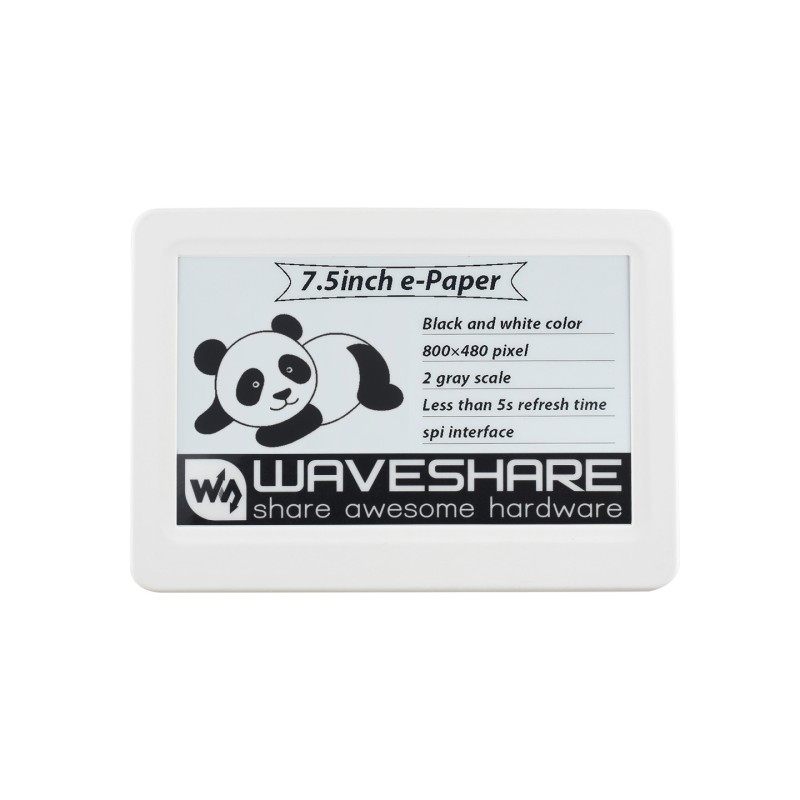

7.5″ passive NFC-powered e-Paper display V2 - Waveshare 30537
ID: 1197706
5902186305120
zł311.58
Tax included
zł253.32 tax excl.
7.5" battery-free e-paper display Waveshare 30537 powered and programmed via NFC provides wireless, energy-efficient operation without the need for cables. Thanks to its large surface area and high resolution, it is suitable for applications such as shelf labels or conference badges. For effective operation, it is recommended to use the ST25R3911B NFC Board programmer or an evaluation kit.
Description
7.5-inch NFC-Powered V2 e-paper display based on passive NFC technology enables wireless power supply and data transfer without the need for a battery. The device requires no cables or external power source. The display content is updated by bringing a compatible NFC-enabled device close—preferably the ST25R3911B NFC Board, due to the higher power demand at this screen size. The e-paper is used as a price tag, equipment label, shelf tag, or conference badge. The product is not compatible with Samsung smartphones due to limited NFC signal strength.
Specifications
- Technology: passive, battery-free NFC operation
- Power supply: wireless only (NFC)
- Display colors: black / white
- Grayscale: 2 levels
- Resolution: 800 × 480 px
- Display size: 163.2 × 97.92 mm
- Overall size: 195.84 × 137.68 mm
- Pixel size: 0.205 × 0.204 mm
- Refresh time: approx. 5 s (excluding data transmission time)
- Viewing angle: >170°
- Compatibility: ST25R3911B NFC Board, smartphones with strong NFC signal (excluding Samsung models)
1197706
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,5
- Resolution
- 800 x 480 px
- Interface
- NFC
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
