e-Paper (G) 2.15″ E-Ink display module with Raspberry Pi HAT - Waveshare 28995
ID: 1197467
5902186307346
zł62.34
Tax included
zł50.68 tax excl.

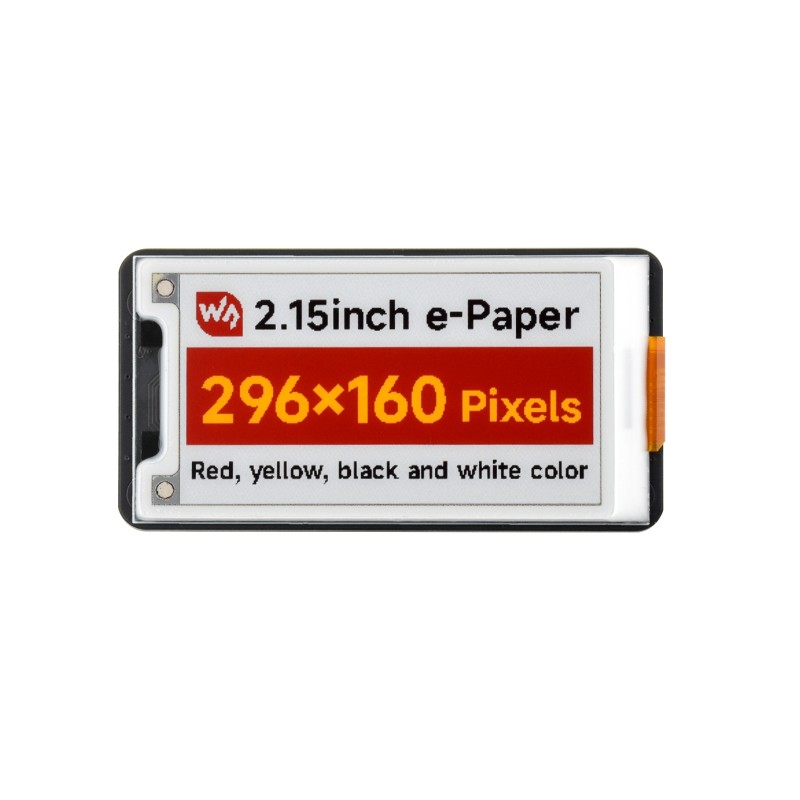

Waveshare 2.15" e-Paper HAT+ (G) is a compact, low-power e-paper display offering four-color rendering with high readability in daylight. The HAT+ version enables quick deployment in projects with Raspberry Pi and other popular platforms, making it an ideal solution for shelf labels, asset tags, information panels, and automation.
Description
The 2.15-inch e-paper display with an integrated HAT+ controller module supports SPI interface and is compatible with platforms such as Raspberry Pi, Arduino, STM32, Jetson Nano, and RDK X3. It displays four colors—red, yellow, black, and white—retains content without power, and offers excellent readability at wide angles. HAT+ compliance simplifies integration with Raspberry Pi projects.
Specifications
- Diagonal: 2.15 inches
- Resolution: 296 × 160 pixels
- Colors: red, yellow, black, white
- Grayscale: 2 levels
- Interface: 3-wire SPI / 4-wire SPI
- Supply voltage: 3.3 V / 5 V
- Active area: 48.10 × 26.00 mm
- Module dimensions: 65.00 × 34.00 mm
- Full refresh time: 20 s
- Power consumption during refresh: <50 mW
- Standby current: <0.01 μA
- Viewing angle: >170°
- Pixel pitch: 0.1625 × 0.1625 mm
- Compatibility: Raspberry Pi, Jetson Nano, Arduino, STM32, RDK X3
- Raspberry Pi HAT+ compliant
Included in the set
- 2.15inch e-Paper HAT+ (G) ×1
- GH1.25 9PIN cable ×1
- Mounting screw set ×1
1197467
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 2,15
- Resolution
- 296 x 160 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
