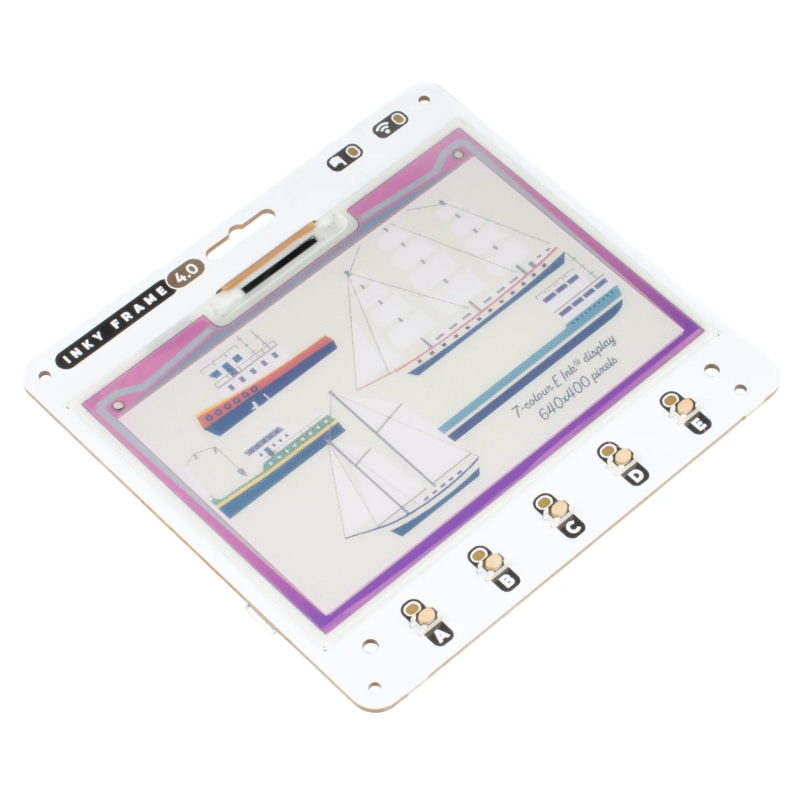

Inky Frame 4.0" - 4" e-Paper display with Raspberry Pi Pico W + accessories
ID: 1183658
zł458.41
Tax included
zł372.69 tax excl.
This e-Paper frame features a 4-inch, seven-color display with a resolution of 640 x 400 pixels, based on the Raspberry Pi Pico W with 2.4 GHz Wi-Fi. E-Paper technology provides excellent daylight readability and very low power consumption, making the device ideal for battery operation. Built-in LED buttons, a microSD reader, and a real-time clock (RTC) enable the creation of interactive dashboards, photo frames, and IoT data displays. It offers support for C/C++ and MicroPython. Pimoroni PIM661
Description
Inky Frame 4.0" is a compact, wireless e-Paper frame based on the Raspberry Pi Pico W, designed as an energy-efficient display for home, office, or IoT projects. It features a 4-inch, seven-color E Ink Gallery Palette 4000 display, offering vivid colors, high contrast, and excellent readability even in bright light. Thanks to e-Paper technology, the image remains visible without power, and energy is consumed only during screen refreshes. This makes the device ideal for long-term battery operation. Inky Frame works perfectly as a home dashboard, photo frame, sensor data display, or visualization of information from online APIs. Built-in 2.4 GHz Wi-Fi enables wireless content updates. Five buttons with LEDs provide intuitive user interaction. A microSD slot allows local storage of images and data. A dedicated RTC chip enables deep sleep and precise wake-up scheduling. The device is fully assembled and ready to use without soldering. It can be programmed in C/C++ or MicroPython, making it friendly for both beginners and advanced makers. The included metal feet allow the frame to be neatly displayed on a desk. Inky Frame 4.0" is an excellent combination of design, low power consumption, and modern functionality.
Features
- Microcontroller: Raspberry Pi Pico W
- CPU: Dual-core Arm Cortex-M0+ up to 133 MHz
- RAM: 264 kB SRAM
- Flash memory: 2 MB QSPI (XiP)
- Wireless connectivity: Wi-Fi 2.4 GHz
- Display: 4.01" E Ink® ACeP (7 colors)
- Resolution: 640 × 400 pixels
- Colors: black, white, red, green, blue, yellow, orange
- Screen refresh time: approx. 40 seconds
- Very low power consumption, ideal for battery operation
- 5 tactile buttons with LEDs
- 2 × Qw/ST connectors for expansion modules
- microSD card reader
- RTC chip: PCF85063A (deep sleep / wake)
- Power supply: USB micro-B or battery pack
- Programming: C/C++, MicroPython
- Board dimensions: 102.8 × 96.7 mm
- Display dimensions: 97 × 69 mm
- Active display area: 86 × 54 mm
Kit contains
- Inky Frame 4.0" with Raspberry Pi Pico W
- 2 × metal feet
- 3 × AA battery holder
- 3 × AA batteries
- USB micro-B cable
- Velcro strip for mounting the battery holder
- microSD card
1183658
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 4,01
- Resolution
- 640 x 400 px
- Interface
- WiFi
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
