e-Paper (B) 2.15″ E-Ink display module 296×160 with Raspberry Pi HAT - Waveshare 28916
ID: 1197457
5902186307308
zł55.44
Tax included
zł45.07 tax excl.

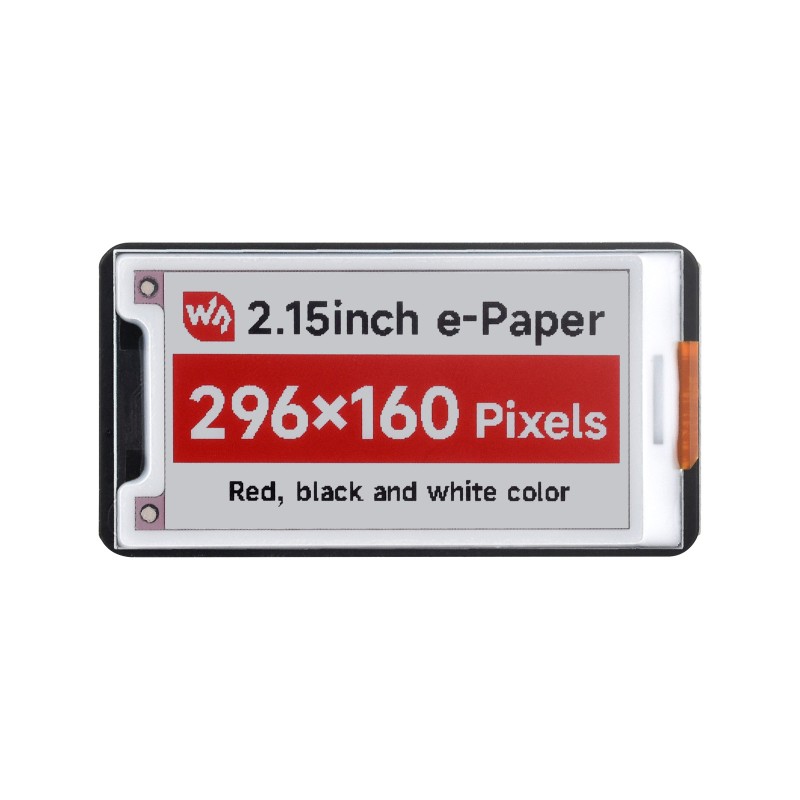

Waveshare 2.15" e-Paper HAT+ (B) with three display colors is an energy-efficient e-paper module designed for labeling and signage applications. With an integrated controller and HAT+ standard, it easily integrates with Raspberry Pi and other popular microcontroller platforms, offering wide-angle readability and operation in natural light.
Description
The 2.15-inch e-paper display with an integrated controller module in the Raspberry Pi HAT+ standard allows content to be displayed in three colors: red, black, and white. It supports SPI communication, and thanks to the built-in voltage level translator, it is compatible with microcontrollers powered at 3.3 V and 5 V. The display is ideal for applications requiring low power consumption and high readability, such as electronic labels, shelf tags, or ID badges.
Specifications
- Diagonal: 2.15 inches
- Resolution: 296 × 160 pixels
- Colors: red, black, white
- Grayscale: 2 levels
- Interface: 3-wire SPI / 4-wire SPI
- Supply voltage: 3.3 V / 5 V
- Display area: 48.10 × 26.00 mm
- Dimensions with module: 65.00 × 34.00 mm
- Full refresh time: 23 s
- Power consumption during refresh: <15 mW
- Standby current: <0.01 μA
- Viewing angle: >170°
- Pixel pitch: 0.1625 × 0.1625 mm
- Compatibility: Raspberry Pi, Jetson Nano, Arduino, STM32, RDK X3
- Standard: Raspberry Pi HAT+
Included in the set
- 2.15inch e-Paper HAT+ (B) ×1
- GH1.25 9PIN cable ×1
- Mounting screw set ×1
1197457
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 2,15
- Resolution
- 296 x 160 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
