Compact 2.13" e-paper display featuring four colors (white, black, red, yellow), designed for low-power microcontroller-based projects. The built-in SRAM memory simplifies graphics handling even on platforms with limited RAM, while high contrast ensures excellent readability in daylight conditions. Adafruit 6366

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

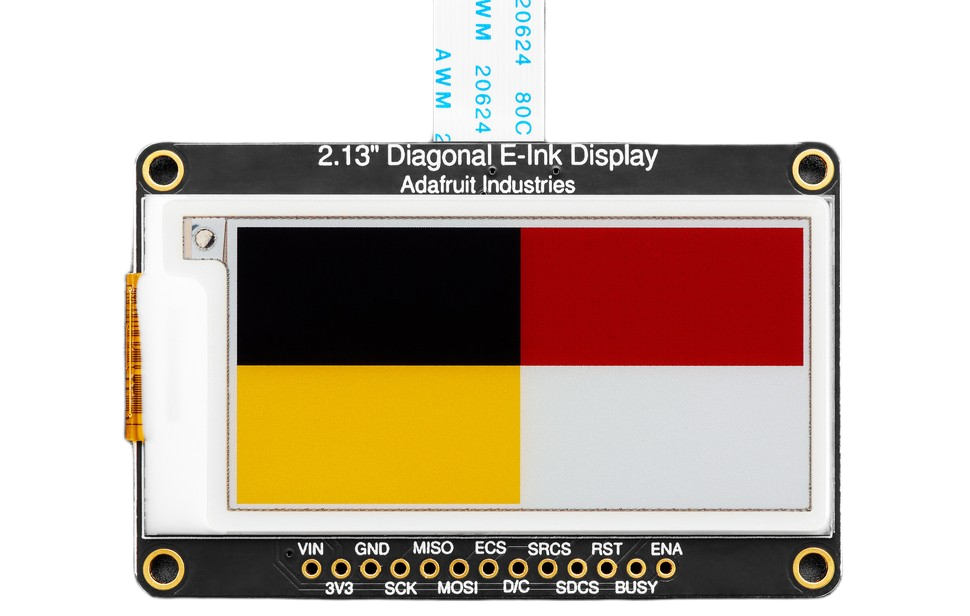

The Adafruit 6366 is an e-paper (eInk / ePaper) display module designed for use with microcontrollers. eInk technology allows static images to be displayed without continuous power, offering high contrast and excellent daylight readability—the image remains visible even after power is removed.

The integrated 2.13" display with a resolution of 250 × 122 px supports four colors: white, black, red, and yellow. The JD79661 display driver provides compatibility with Arduino and CircuitPython libraries. To reduce the RAM usage of the host microcontroller, the module includes external SRAM, used as a frame buffer for convenient image preparation before updating the display.


The board also features a microSD card slot for storing graphics and data. Communication is handled via SPI, with logic-level compatibility for both 3 V and 5 V systems. For ultra-low-power applications, the 3.3 V regulator Enable pin allows complete shutdown of the display, SRAM, and microSD circuitry.

An 18-pin EYE SPI FPC connector (0.5 mm pitch) enables solderless connections, and pin headers are included for optional soldering.

Short product demonstration video.

Features

  • Module type: e-paper display (eInk / ePaper)
  • Display size: 2.13"
  • Resolution: 250 × 122 px
  • Colors: white, black, red, yellow (quad-color)
  • Display driver: JD79661
  • Communication interface: SPI
  • Frame buffer memory: external SRAM
  • Memory card slot: microSD
  • FPC connector: 18-pin EYE SPI, 0.5 mm pitch
  • Logic levels: 3 V / 5 V
  • Low-power mode: 3.3 V regulator Enable pin
  • Supported environments: Arduino, CircuitPython
  • Assembly status: fully assembled module
  • Included connectors: pin headers for soldering

Kit includes

  • Adafruit 6366 e-paper display module
  • Pin headers for soldering
1199904

Data sheet

Screen type
E-Ink/Epaper
Diagonal (inch)
2,13
Resolution
250 x 122 px
Interface
SPI
Touch
No
