5.83" E-Ink e-paper display 648x480 SPI + HAT - Waveshare 32788
ID: 1202675
zł186.96
Tax included
zł152.00 tax excl.
E-Ink e-paper display with a 5.83 inch diagonal and 648 x 480 resolution, supporting four colors: red, yellow, black, and white, equipped with an e-Paper Driver HAT using an SPI interface, designed for ultra-low power applications. Waveshare 5.83inch e-Paper HAT (G)
Description

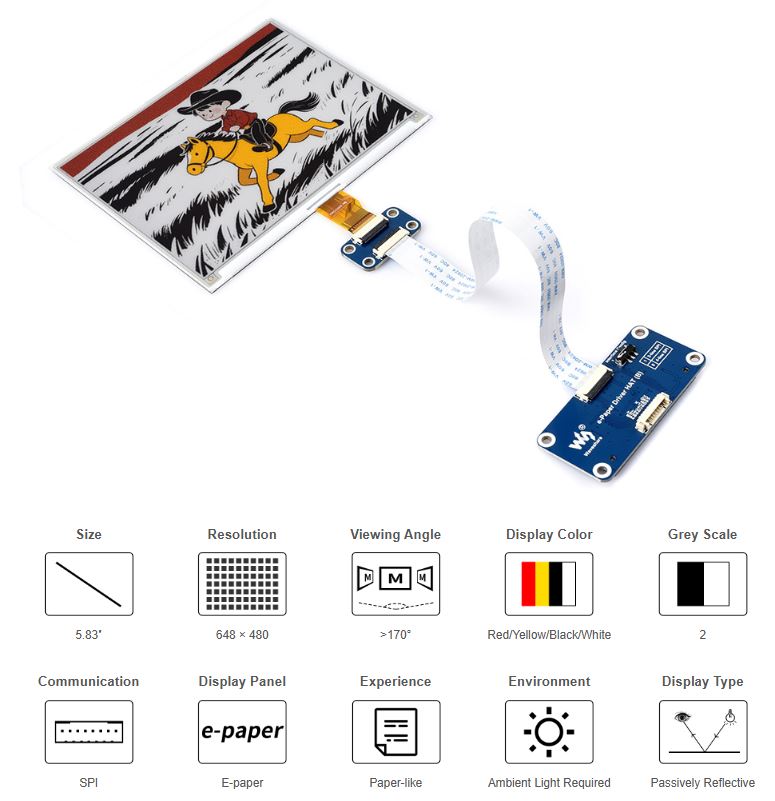

E-Ink e-paper display with a 5.83 inch diagonal, designed to present content in a manner similar to traditional printed paper. Electrophoretic technology enables image display using ambient light without the need for a backlight, resulting in extremely low power consumption and a wide viewing angle exceeding 170°. After power is removed, the display retains the last shown content.
The version with the e-Paper Driver HAT allows direct connection to platforms such as Raspberry Pi, Jetson Nano, and microcontrollers including ESP32, Arduino, and STM32. Communication via the SPI interface and an onboard logic level translator ensures compatibility with controllers operating at 3.3 V and 5 V. The display is intended for applications such as price tags, information boards, shelf labels, conference badges, and industrial information panels, where readability and energy efficiency are critical.

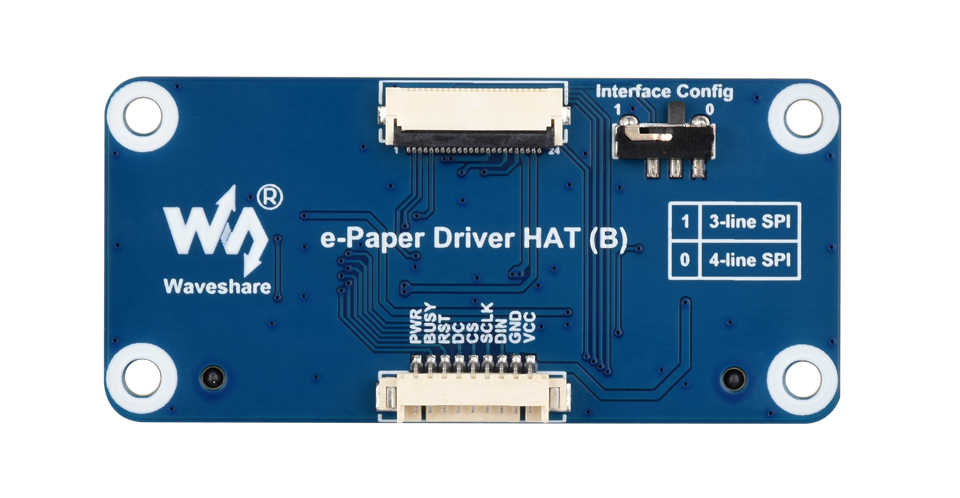

e-Paper Driver HAT pin description
- VCC: 3.3 V / 5 V power supply
- GND: Ground
- DIN: SPI MOSI line
- SCLK: SPI clock line
- CS: SPI chip select, active low
- DC: Data/command selection, high for data, low for command
- RST: External reset, active low
- BUSY: Busy status output
- PWR: Power control pin
Features
- Display type: E-paper (E-Ink)
- Display size: 5.83 inch
- Resolution: 648 x 480
- Display colors: Red, yellow, black, white
- Grayscale: 2 levels
- Viewing angle: >170°
- Communication interface: SPI
- Supported SPI modes: 3-wire, 4-wire
- Operating voltage: 3.3 V / 5 V
- Full refresh time: 20 s
- Fast refresh time: 12 s
- Refresh power consumption: <100 mW
- Standby current: <0.01 µA
- Active area dimensions: 118.78 x 88.22 mm
- Dot pitch: 0.1833 x 0.1833 mm
- Display dimensions: 125.40 x 99.50 x 1.20 mm
- Driver HAT dimensions: 30.5 x 65 mm
- GPIO connector: 40-pin, Raspberry Pi compatible
- Logic level translator: supports 3.3 V and 5 V
Kit includes
- 5.83inch e-Paper HAT (G)
- Mounting screws set
- MX1.25 9-pin cable, approximately 20 cm
1202675
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 5,83
- Resolution
- 648 x 480 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
