5" e-Paper Display 960x552 HAT SPI Black/White - Waveshare 34058
ID: 1204587
zł156.90
Tax included
zł127.56 tax excl.

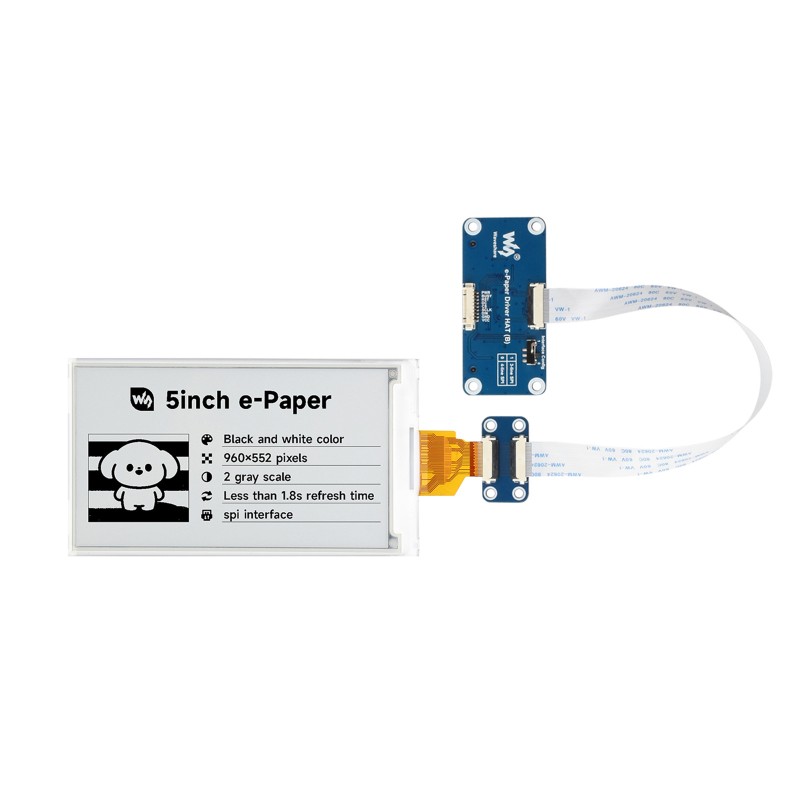

5" e-Paper display with 960 x 552 px resolution, HAT driver board, SPI interface and support for Raspberry Pi and other platforms. Low power consumption, no backlight. Waveshare 5inch e-Paper HAT
Description
5" e-Paper display module featuring an E-Ink panel with a resolution of 960 x 552 pixels and a dedicated HAT driver board with SPI interface. The electrophoretic display technology allows image rendering without backlight by using ambient light, providing a paper-like viewing experience and a wide viewing angle.
The design allows the displayed content to remain visible even without power, with energy consumption occurring mainly during refresh cycles. The module includes a standard 40PIN GPIO header, enabling direct connection to Raspberry Pi and compatibility with other platforms such as Arduino, STM32 and ESP32.
The display is used in information systems, price tags, shelf labels, badges, IoT devices and applications requiring low power consumption and high readability in ambient light conditions.

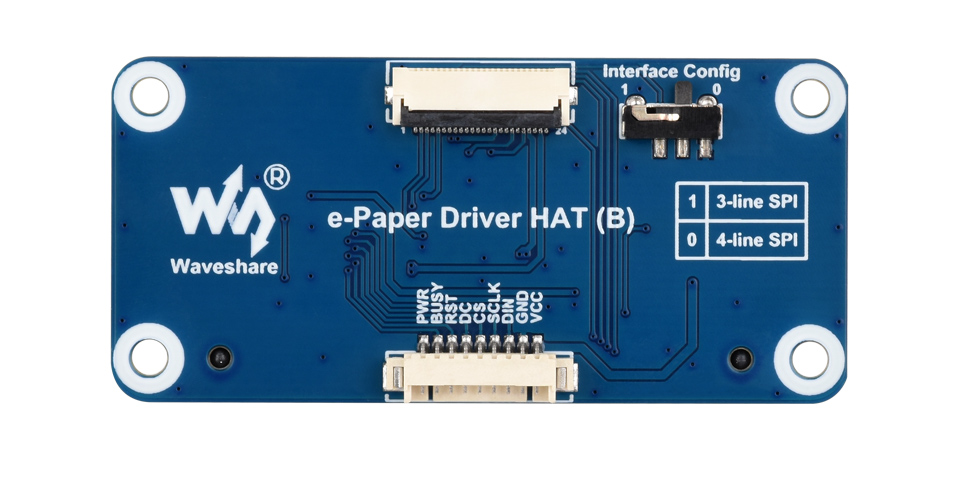

- PWR - Power control pin
- BUSY- Busy status output
- RST - External reset, low active
- DC - Data / Command selection (high for data, low for command)
- CS - SPI chip selection, low active
- SCLK - SPI CLK pin
- DIN - SPI MOSI pin
- GND - Ground
- VCC - 3.3V/5V
Features
- Resolution: 960 x 552
- Diagonal size: 5"
- Display type: e-Paper (E-Ink)
- Display color: black/white
- Grey scale: 2 levels
- Viewing angle: >170°
- Interface: SPI (3-wire, 4-wire)
- Connector: Raspberry Pi 40PIN GPIO
- Supply voltage: 3.3 V / 5 V
- Full refresh time: 1.8 s
- Partial refresh time: 0.7 s
- Refresh power consumption: <50 mW
- Standby current: <0.01 µA
- Active area size: 110.59 x 62.65 mm
- Pixel size: 0.1833 x 0.1833 mm
- Module dimensions: 126.38 x 71.19 x 0.79 mm
Kit includes
- 5inch e-Paper HAT display x1
- MX1.25 9PIN cable approx. 20 cm x1
- Mounting hardware set
1204587
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 5
- Resolution
- 960 x 552 px
- Interface
- SPI
- Touch
- No
