5" e-Paper Display 960x552 SPI Black/White - Waveshare 34057
ID: 1204586
zł122.53
Tax included
zł99.62 tax excl.

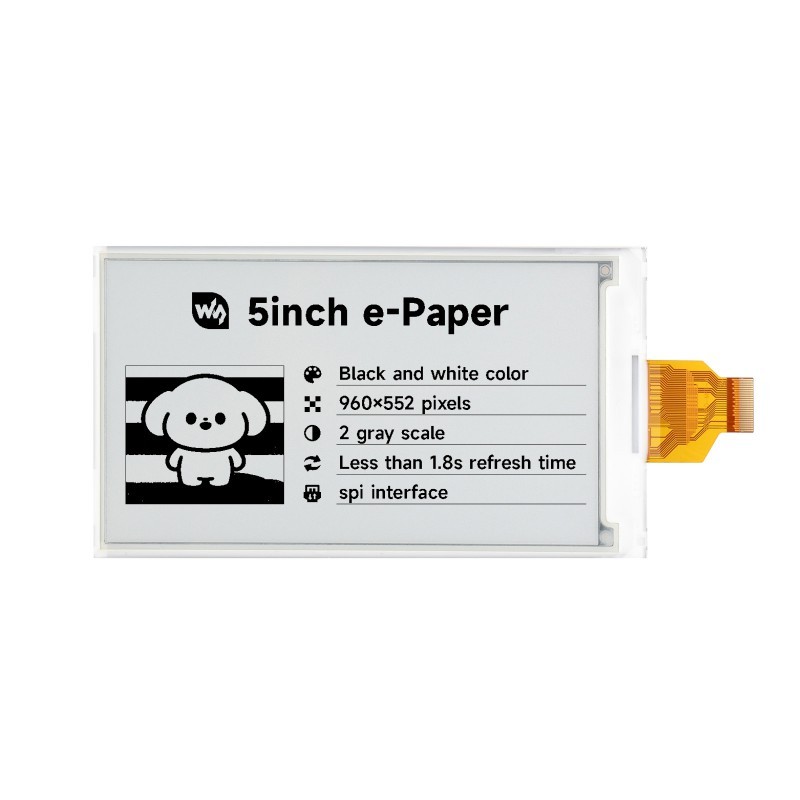

5" e-Paper display with 960 x 552 px resolution and SPI interface, designed for integration with external controller circuits. Low power consumption, no backlight. Waveshare 5inch e-Paper
Description
5" e-Paper display featuring an E-Ink panel with a resolution of 960 x 552 pixels, intended for integration with an external controller. The electrophoretic display technology enables image rendering without backlight using ambient light, providing a paper-like viewing effect and a wide viewing angle.
The design allows the displayed content to remain visible even without power, with energy consumption occurring mainly during refresh cycles. The display requires an external driver, such as a custom controller communicating via the SPI interface.
The display is used in information systems, price tags, shelf labels, badges, IoT devices and applications requiring low power consumption and high readability in ambient light conditions.

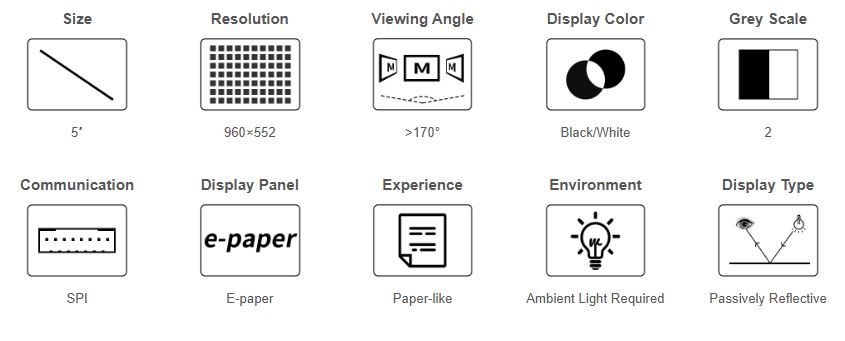

Features
- Resolution: 960 x 552
- Diagonal size: 5"
- Display type: e-Paper (E-Ink)
- Display color: black/white
- Grey scale: 2 levels
- Viewing angle: >170°
- Interface: SPI (3-wire, 4-wire)
- Supply voltage: 3.3 V
- Full refresh time: 1.8 s
- Partial refresh time: 0.7 s
- Refresh power consumption: <50 mW
- Standby current: <0.01 µA

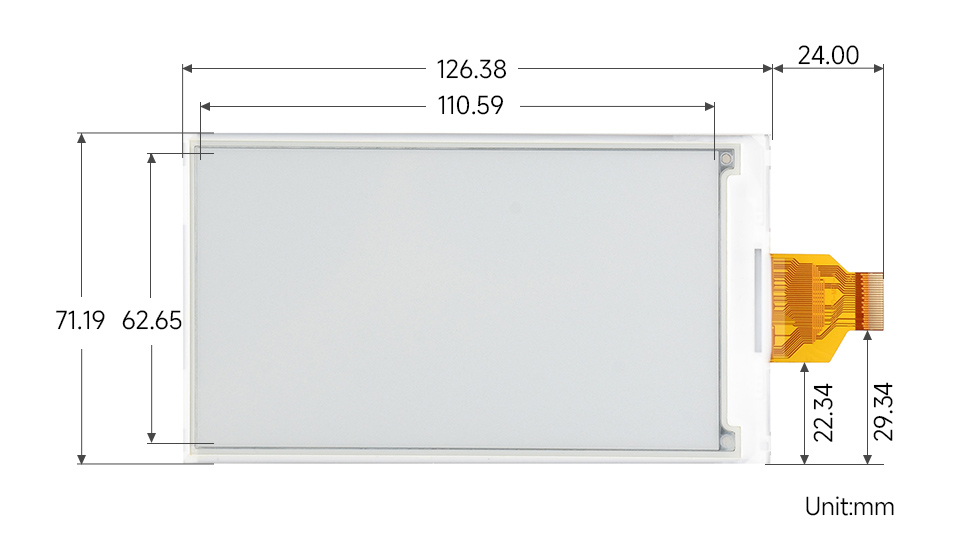

- Active area size: 110.59 x 62.65 mm
- Pixel size: 0.1833 x 0.1833 mm
- Module dimensions: 126.38 x 71.19 x 0.79 mm
- Weight: 0.017 kg
1204586
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 5
- Resolution
- 960 x 552 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
