- New

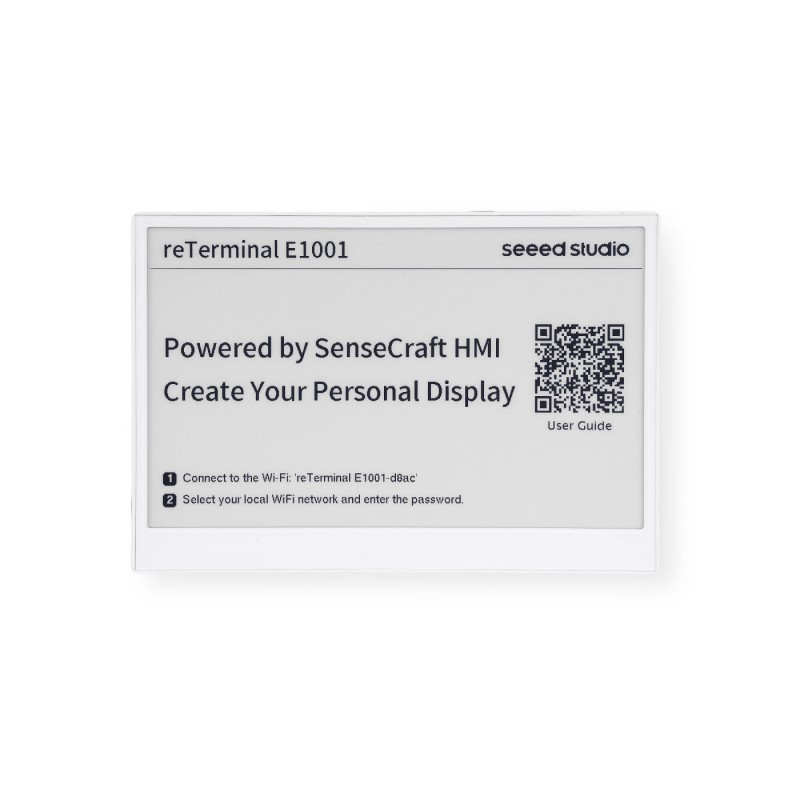

reTerminal E1001 Monochrome ePaper - 7.5" monochrome ePaper display with ESP32-S3 module
ID: 1202931
zł351.85
Tax included
zł286.06 tax excl.
An HMI device with a 7.5-inch ePaper display with a resolution of 800x480 pixels, designed for creating energy-efficient devices and information panels. The built-in ESP32-S3 with 8 MB of PSRAM, Wi-Fi and Bluetooth connectivity, and support for platforms such as SenseCraft HMI, ESPHome, and Arduino facilitate integration with IoT systems. The device includes temperature and humidity sensors and a 2000 mAh battery, providing up to 3 months of operation in power-saving mode. Seeed Studio 100073581
Description
reTerminal E1001 is a 7.5-inch monochrome ePaper display designed as a ready-to-use HMI device for data visualization and building modern embedded devices. The integrated E Ink display with a resolution of 800 × 480 pixels delivers excellent readability and a print-like appearance, making it ideal for digital photo frames and information panels. At the heart of the device is an ESP32-S3 with 8 MB PSRAM, ensuring smooth user interface operation and extensive development possibilities. The display also exposes I2C and UART interfaces, enabling easy expansion of custom projects.
The device natively supports SenseCraft HMI, a no-code platform that allows drag-and-drop interface design without programming. This makes it possible to create and deploy custom dashboards based on sensor data or internet APIs within minutes. reTerminal E1001 is also compatible with Home Assistant (ESPHome), TRMNL E-ink Dashboard, and development environments such as Arduino, PlatformIO, and ESP-IDF. The integrated 2000 mAh battery and energy-efficient design allow for up to 3 months of operation on a single charge in deep sleep mode. As a result, the device can be placed on a desk, mounted on a wall, or installed anywhere without frequent recharging.
The reTerminal E1001 features built-in temperature and humidity sensors, as well as a buzzer and microphone for future voice-enabled applications. Its robust enclosure, true out-of-the-box readiness, and options for hardware and software customization make it suitable for home, educational, and industrial applications. It is an ideal solution for IoT dashboards, information systems, data monitoring, and aesthetically pleasing, ultra-low-power ePaper displays.
Features
- Display: 7.5" E Ink, monochrome
- Resolution: 800 × 480 pixels
- Refresh time: 2–5 s, partial refresh mode
- Processor: ESP32-S3 with 8 MB PSRAM
- Memory: 32 MB Flash, microSD card support up to 32 GB (FAT32)
- Wireless connectivity: Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 5.0
- Battery: 2000 mAh, up to 3 months of operation in low-power mode
- Power supply: USB-C 5V / 1A
- Sensors: temperature and humidity
- Additional components: buzzer, microphone
- Supported software: SenseCraft HMI, ESPHome (Home Assistant), Arduino, PlatformIO, ESP-IDF
- Operating temperature range: 0–40°C
- Dimensions: 176 × 120 × 53 mm
Kit contains
- reTerminal E1001 ePaper display
- USB Type-C cable
- Display stand with screw
- Screwdriver
1202931
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,5
- Resolution
- 800 x 480 px
- Interface
- WiFi/BT
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
