- New
reSpeaker Flex XVF3800 - audio module with XMOS XVF3800 processor and microphone array + XIAO ESP32S3 - Seeed Studio 100026178
ID: 1205296
zł284.06
Tax included
zł230.94 tax excl.
A microphone array module designed for AI, robotics, and voice interface applications. It utilizes an XMOS XVF3800 processor and four MEMS microphones to deliver real-time audio processing with features such as noise reduction, echo cancellation, beamforming, and sound source direction detection. Its voice detection range is up to 5 meters, and its 180° pickup pattern enables precise spatial speech capture. Integration with the XIAO ESP32S3 and support for USB and I2S make the module easy to implement in embedded projects and voice control systems. Seeed Studio 100026178
Description

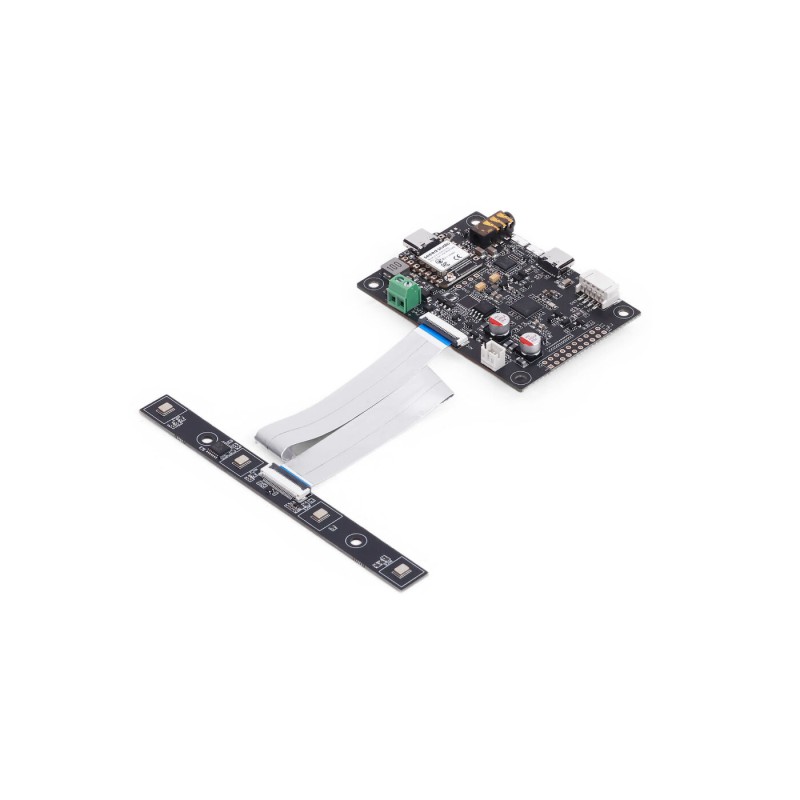

reSpeaker Flex XVF3800 Linear-4 with XIAO ESP32S3 is an advanced microphone array module designed for robotics, embedded systems, and interactive HMI applications. The device is based on the XMOS XVF3800 processor, which provides high-quality real-time audio signal processing. Thanks to built-in AI algorithms such as noise suppression (NS), acoustic echo cancellation (AEC), and beamforming, the module significantly improves captured audio quality. The split-design architecture separates the processing unit from the microphone array, enabling flexible placement in robotic systems and space-constrained devices.
The version with XIAO ESP32S3 enables direct integration with MCU ecosystems such as Arduino and ESPHome, allowing rapid deployment of voice-based projects. Support for both USB and I2S modes ensures broad compatibility with computers, Raspberry Pi, NVIDIA Jetson, and microcontrollers. The 4-microphone array enables precise sound capture within a 180° field of view, making it ideal for front-facing applications such as information kiosks or control panels.
The system offers a voice capture range of up to 5 meters, enabling convenient voice control in larger spaces without the need to approach the device. Thanks to DoA (Direction of Arrival) technology, it can determine the direction of the sound source, improving interaction precision in robotics and AI systems. The module is designed for professional applications, offering high resistance to interference and stable operation even in challenging acoustic environments. With built-in interfaces and DFU support, firmware updates and device customization are easy to perform. The reSpeaker Flex XVF3800 Linear-4 provides a complete solution for projects requiring advanced voice recognition and audio processing.
Features
- Main chip: XMOS XVF3800
- Amplifier: Texas Instruments TPA3139D2, supports speakers up to 10 W
- Audio algorithms: AEC, AGC, DoA, beamforming, VAD, noise suppression, de-reverberation
- Interfaces:
- USB Type-C (external connection and debugging)
- USB JST connector (internal signal routing and mainboard integration)
- XIAO-compatible pins
- XMOS XVF3800 XTAG debug pins
- XMOS XVF3800 I/O pins
- Audio outputs: 1× 3.5 mm audio jack, 1× 2-pin speaker connector
- Power supply: 5 V via USB Type-C or 5 V via JST connector; 12 V via 2-pin terminal connector
- Microphone array interface: 1× 24-pin FPC connector
- Buttons: 1× reset button, 1× boot button
- Maximum sampling rate: 16 kHz
- Microphones: 4× high-performance PDM MEMS microphones
- Array topology: linear microphone array with 33 mm spacing
- Directional coverage: 180° sound capture
- Voice pickup range: up to 5 meters
- Mounting: 2× M3 mounting holes
Kit contains
- reSpeaker Flex Core module
- reSpeaker Flex Linear Mic Array module
- 20 cm FPC cable
- Connector
