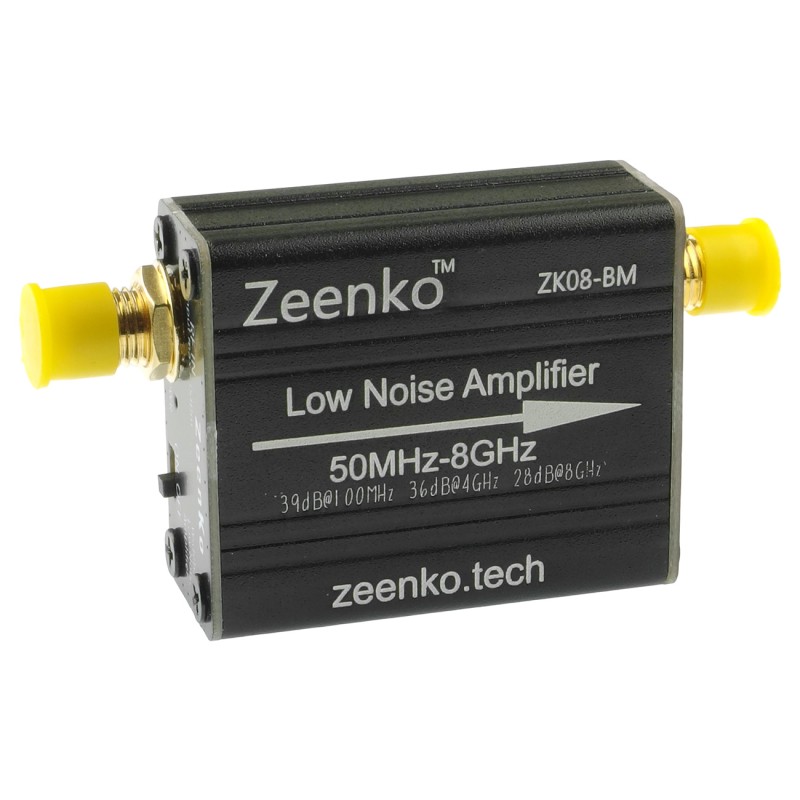

Main view
search
  • Main view
  • Angled view
  • Angled view (flipped)
  • RF input view
  • RF output and USB-C view
  • Angled view with overlay cover
  • Angled view with cover
  • Front view with covers
  • Full set
ID: 1201366
5902186333901
zł134.92
Tax included

zł109.69 tax excl.

Zeenko ZK08-BM is a low-noise, wideband amplifier with a built-in battery, intended for operation in the 50 MHz – 8 GHz range. It provides high signal gain and compensation of losses in antenna paths. Thanks to its compact design and battery power, it performs excellently in mobile and measurement applications.

24h
Available
Available quantity: 5

Description

ZK08-BM is a wideband low-noise amplifier by Zeenko, intended for operation in the 50 MHz – 8 GHz band. The BM series model features a built-in battery providing up to 5 hours of mobile operation, with charging at 210 mA. Thanks to its very high gain (up to 39 dB), it works well as an amplifier compensating for losses in long cable lines – especially when placed directly at the antenna rather than at the receiver.

The module offers high linearity, low noise and stable parameters across a wide frequency range, making it suitable for measurement applications, radio systems and precise RF applications.

Properties

  • Frequency range: 50 MHz – 8 GHz
  • Power supply: built-in battery
  • Charging current: 210 mA
  • Total current consumption: 280 mA
  • Battery operating time: up to 5 hours
  • Gain:
  • 34 dB @ 10 MHz
  • 39 dB @ 100 MHz
  • 37 dB @ 1 GHz
  • 36 dB @ 2–4 GHz
  • 33 dB @ 5 GHz
  • 31 dB @ 6 GHz
  • 28 dB @ 7 GHz
  • 28 dB @ 8 GHz
  • Noise figure (NF):
  • 6.9 dB @ 10 MHz
  • 2.3 dB @ 100 MHz
  • 2.1–3.3 dB in the range 1–8 GHz
  • OP1dB (output power at 1 dB compression):
  • 0 dBm @ 10 MHz
  • 9 dBm @ 100 MHz
  • 9–3 dBm @ 1–7 GHz
  • 2 dBm @ 8 GHz
  • OIP3 (third-order intercept point):
  • 22 dBm @ 10 MHz
  • 25 dBm @ 100 MHz
  • 22–20 dBm @ 1–4 GHz
  • 15–8 dBm @ 5–8 GHz
  • Notes: high gain, low-noise, wideband; recommended placement near the antenna for cable loss compensation
