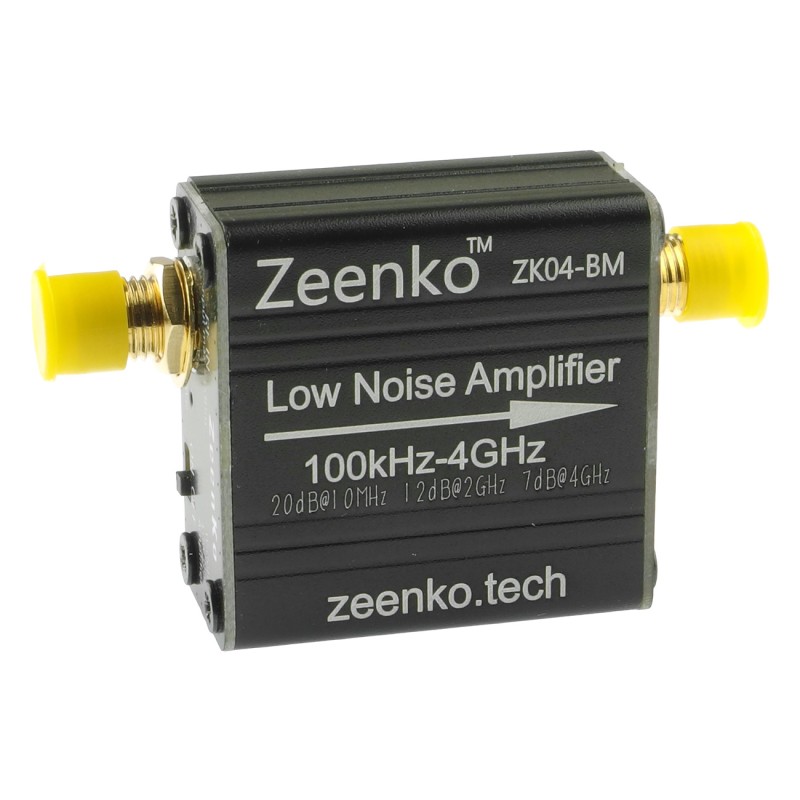

Main view
search
  • Main view
  • Angled view
  • Angled view (flipped)
  • RF input view
  • RF output and USB-C view
  • Angled view with cover
  • Front view with covers
  • Full set
ID: 1201362
5902186331556
zł74.59
Tax included

zł60.64 tax excl.

Zeenko ZK04-BM is a low-noise RF amplifier with ultra-low power consumption, battery-powered, operating in the 100 kHz – 4 GHz range. It provides up to 20 hours of mobile operation while maintaining stable signal parameters and can be used as an alternative to popular wideband amplifiers such as the SPF5189Z and SPF5043Z.

24h
Available
Available quantity: 8

Description

The ZK04-BM is an ultra-low-power low-noise RF amplifier from Zeenko’s BM series, operating in the 100 kHz to 4 GHz range. The BM version is equipped with a built-in battery, making it ideal for portable applications. The internal rechargeable battery provides up to 20 hours of operation, and charging is performed at 210 mA. The module is designed for applications requiring high sensitivity and low noise, such as spectrum analyzer front ends, antenna systems, and RF receivers.

Thanks to the built-in bias circuit and low power consumption, the ZK04-BM performs excellently in mobile environments, offering stable gain and high overload resistance. It can be used as a replacement for popular amplifiers such as SPF5189Z and SPF5043Z.

Properties

  • Frequency range: 100 kHz – 4 GHz
  • Power supply: built-in battery
  • Charging current: 210 mA
  • Total current consumption: 215 mA
  • Battery runtime: up to 20 hours
  • Gain:
  • 21 dB @ 100 kHz / 5 MHz
  • 20 dB @ 10 MHz
  • 19 dB @ 100 MHz
  • 15.5 dB @ 1 GHz
  • 12 dB @ 2 GHz
  • 9 dB @ 3 GHz
  • 7 dB @ 4 GHz
  • Noise figure (NF):
  • 2.3 dB @ 10 MHz
  • 1 dB @ 100 MHz
  • 0.7 dB @ 1 / 2 / 3 GHz
  • 1 dB @ 4 GHz
  • OP1dB (1 dB compression point):
  • 12 dBm @ 10 MHz
  • 15 dBm @ 100 MHz
  • 16 dBm @ 1 GHz
  • 16 dBm @ 2 GHz
  • 17 dBm @ 3 GHz
  • 16 dBm @ 4 GHz
  • OIP3 (third-order intercept point):
  • 17 dBm @ 10 MHz
  • 18 dBm @ 100 MHz – 2 GHz
  • 19 dBm @ 3 GHz
  • 20 dBm @ 4 GHz
  • Notes: ultra-low-power, low-noise, portable battery-powered version
  • Can be used as a replacement for: SPF5189Z, SPF5043Z
