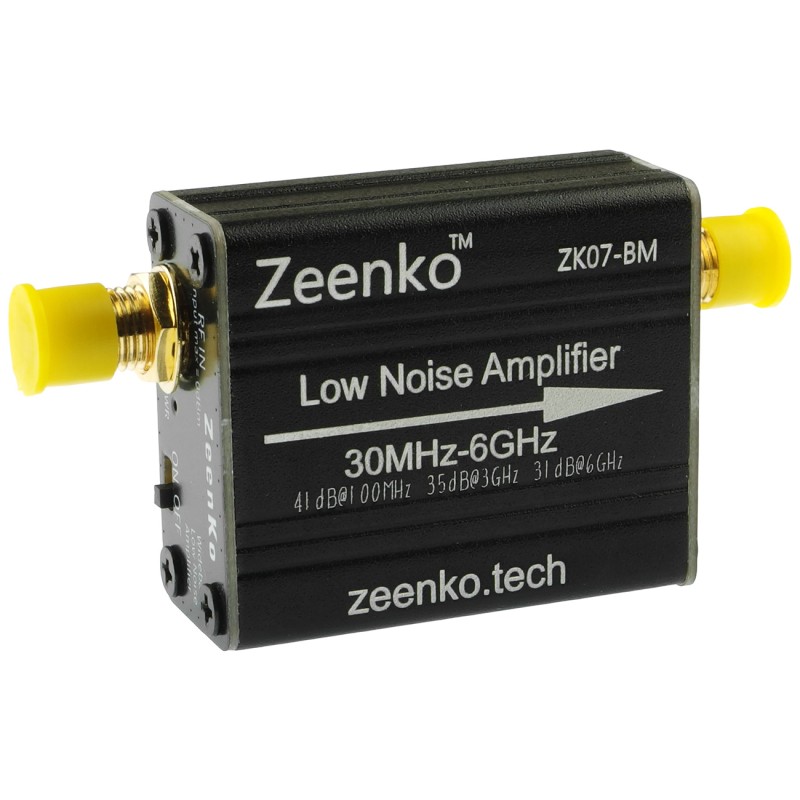

Main view
search
  • Main view
  • Angled view
  • Angled view (flipped)
  • RF input view
  • RF output and USB-C view
  • Angled view with cover
  • Front view with covers
  • Full set
ID: 1201365
5902186333895
zł105.76
Tax included

zł85.98 tax excl.

Zeenko ZK07-BM is a low-noise, wideband amplifier with very high gain, powered by a battery and intended for operation in the 30 MHz – 6 GHz band. Ideal for compensating losses in long antenna lines, it provides up to 43 dB of gain and very good noise performance. Recommended for installation as close to the antenna as possible in receiving and measurement paths.

24h
Available
Available quantity: 1

Description

ZK07-BM is a wideband, low-noise RF amplifier with high gain, belonging to the BM series by Zeenko. It operates in the 30 MHz to 6 GHz band and is powered by a built-in battery providing up to 6 hours of operation. Charging is carried out with a current of 210 mA, and the total current consumption is 270 mA. Thanks to its high gain (up to 43 dB), the module is particularly well suited for compensating losses in long cable lines – it is recommended to place it as close to the antenna as possible, rather than at the receiver input.

The device provides very good noise performance, high linearity and gain stability, which makes it suitable for advanced measurement and communication applications, including mobile environments.

Properties

  • Frequency range: 30 MHz – 6 GHz
  • Power supply: built-in battery
  • Charging current: 210 mA
  • Total current consumption: 270 mA
  • Battery operating time: up to 6 hours
  • Gain:
  • 35 dB @ 5 MHz
  • 43 dB @ 10 MHz
  • 42 dB @ 100 MHz
  • 39 dB @ 1 GHz
  • 36 dB @ 2 / 3 / 4 / 5 GHz
  • 31 dB @ 6 GHz
  • Noise figure (NF):
  • 2.4 dB @ 10 MHz
  • 0.9 dB @ 100 MHz
  • 0.7–1.2 dB in the range 1–6 GHz
  • OP1dB (output power at 1 dB compression):
  • 0 dBm @ 10 MHz
  • 10 dBm @ 100 MHz – 2 GHz
  • 12 dBm @ 2 GHz
  • 11–6 dBm in the range 3–6 GHz
  • OIP3 (third-order intercept point):
  • 22 dBm @ 10 MHz
  • 25 dBm @ 100 MHz
  • 22–23 dBm @ 1–2 GHz
  • 20–12 dBm in the range 3–6 GHz
  • Notes: high gain, low-noise, wideband; recommended placement close to the antenna (for cable loss compensation)
