Low-noise RF amplifier 10 MHz – 6 GHz ZK06-BM Zeenko BM Series, battery powered
ID: 1201364
5902186333888
zł76.57
Tax included
zł62.25 tax excl.
Zeenko ZK06-BM is a portable, low-noise RF amplifier with battery power, operating in the 10 MHz – 6 GHz band. It offers high gain stability, good overload resistance and full compatibility with spectrum analyzers, including tinySA ULTRA. Particularly recommended for measurement applications and antenna systems.
Description

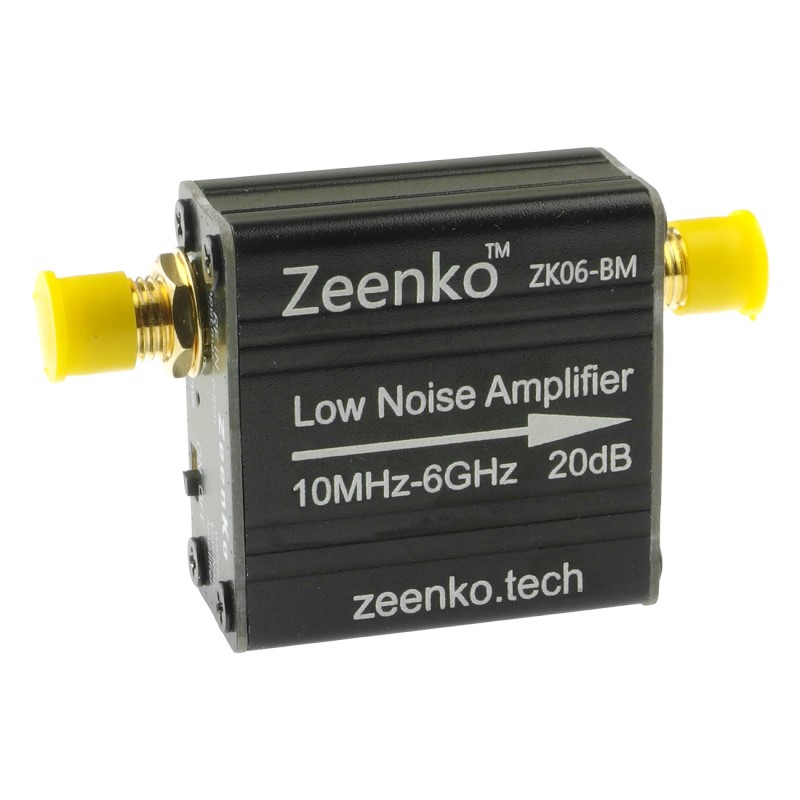

ZK06-BM is a wideband, low-noise RF amplifier by Zeenko from the BM series, operating in the 10 MHz – 6 GHz band. The device is equipped with a built-in battery that provides up to 6 hours of operation, and charging is carried out with a current of 210 mA. The module features good gain flatness in the 1–6 GHz range and a low noise level, which makes it ideal for mobile and measurement applications, e.g. as an external preamplifier for tinySA ULTRA spectrum analyzers in measurements up to 5.8 GHz.
Thanks to its high linearity parameters and overload resistance, the ZK06-BM can be used as a replacement for the QPL9503 and QPL9504 amplifiers.
Properties
- Frequency range: 10 MHz – 6 GHz
- Power supply: built-in battery
- Charging current: 210 mA
- Total current consumption: 250 mA
- Battery operating time: up to 6 hours
- Gain:
- 21 dB @ 5 MHz
- 25.5 dB @ 10 MHz
- 24.5 dB @ 100 MHz
- 21.5 dB @ 1 GHz
- 21 dB @ 2 GHz
- 20 dB @ 3 GHz
- 19.5 dB @ 4 GHz
- 19 dB @ 5 GHz
- 18 dB @ 6 GHz
- Noise figure (NF):
- 2.3 dB @ 10 MHz
- 0.8 dB @ 100 MHz
- 0.6–1.0 dB in the range 1–6 GHz
- OP1dB (output power at 1 dB compression):
- 16 dBm @ 10 MHz
- 12 dBm @ 100 MHz
- 18 dBm @ 1–3 GHz
- 17 dBm @ 5 GHz
- 16 dBm @ 6 GHz
- OIP3 (third-order intercept point):
- 26 dBm @ 10 MHz
- 31 dBm @ 100 MHz – 1 GHz
- 30 dBm @ 2 GHz
- 31 dBm @ 3 GHz
- 28 dBm @ 4 GHz
- 27 dBm @ 5 GHz
- 24 dBm @ 6 GHz
- Notes: wideband, low-noise, good flatness in the 1–6 GHz range
- Recommended for use with the 5.8 GHz tinySA ULTRA analyzer
- Can be used as a replacement for: QPL9503, QPL9504
